Features
- Integrated with 700V 5Ω MOSFET
- Constant frequency PWM operation with current mode control
- Burst mode operation at light load
- Protections:
- Short-circuit protection (SCP)
- Overload protection (OLP)
- Input undervoltage protection (VINUV)
- VCC overvoltage protection (VCCOV)
- Output open-loop protection (OLP)
- Short-winding protection (SWP)
- Over-temperature protection (OTP)
Description

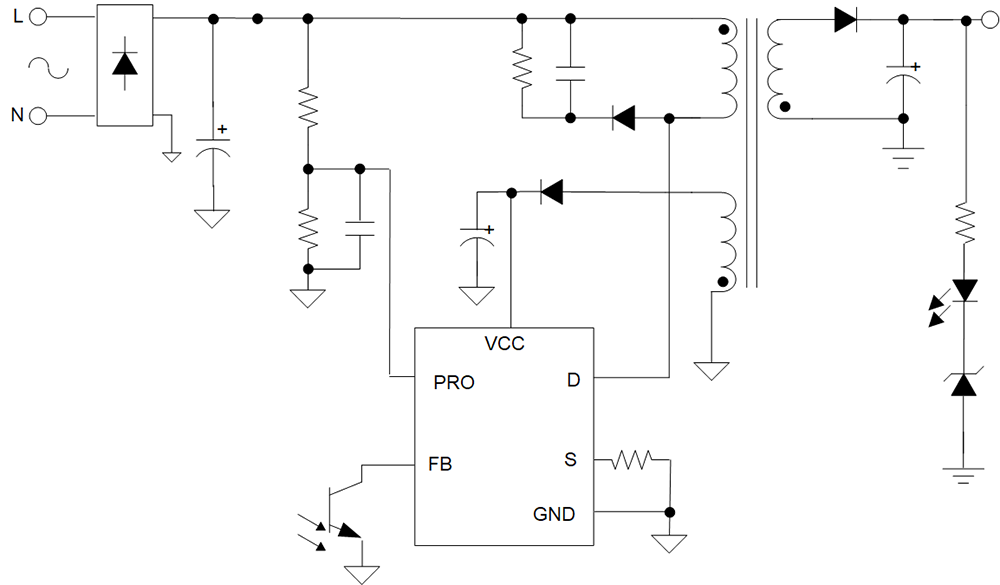

The RAA223881, an off-line flyback regulator with an integrated 700V power MOSFET, provides a cost-effective solution for high-input voltage applications such as appliances, air conditioners, and general-purpose isolated power supplies with 15W output. The flyback regulator operates with a constant switching frequency of 65kHz and employs current mode control. At light loads, it operates in burst mode to reduce power consumption and uses secondary-side feedback to provide excellent output voltage regulation. The RAA223881 features an integrated high-voltage (HV) startup for a low system-component count. It also provides frequency dithering to simplify EMI filter design. The device comes in a 7 Ld PDIP package.
Parameters
| Attributes | Value |
|---|---|
| Topology Characteristic | SSR Flyback |
| Control Mode | Peak Current Mode DCM/CCM |
| UVLO Rising (V) | 12 |
| UVLO Falling (V) | 8 |
| VBIAS (Max) (V) | 30 |
| PWMs (#) | 1 |
| Output Power Max (W) | 15 |
| Switching Frequency (KHz) | 65 - 65 |
| Controller / Integrated | Integrated |
| Advanced Features | Built-in HV startup |
| Temp. Range (°C) | -40 to +125°C |
| Qualification Level | Standard |
Package Options
| Pkg. Type | Pkg. Dimensions (mm) | Lead Count (#) | Pitch (mm) |
|---|---|---|---|
| PDIP | 9.3 x 6.3 x 3.30 | 7 | 2.5 |
Applications
- Large appliances
- Air conditioners
- Industry equipment
- Auxiliary power supply for TV, set-top box, or LCD/LED monitor
Renesas Boards & Kits
Dual Output 15W Universal Input Flyback Evaluation Board
The RTKA223881DE0000BU is a dual output 15W universal input flyback evaluation board that features the RAA223881 700V regulator. The board demonstrates a low-cost, high-performance isolated AC/DC solution from a universal input of 85VAC to 265VAC for 12V and 5.9V outputs. The RTKA223881DE0000BU... Read More
