Overview
Description
The SLG46533-EV provides a small, low-power component for commonly used mixed-signal functions. The user creates their circuit design by programming the one-time programmable (OTP) non-volatile memory (NVM) to configure the interconnect logic, the IO pins, and the macrocells of the SLG46533-EV. This highly versatile device allows for a wide variety of mixed-signal functions to be designed within a very small, low-power single integrated circuit.

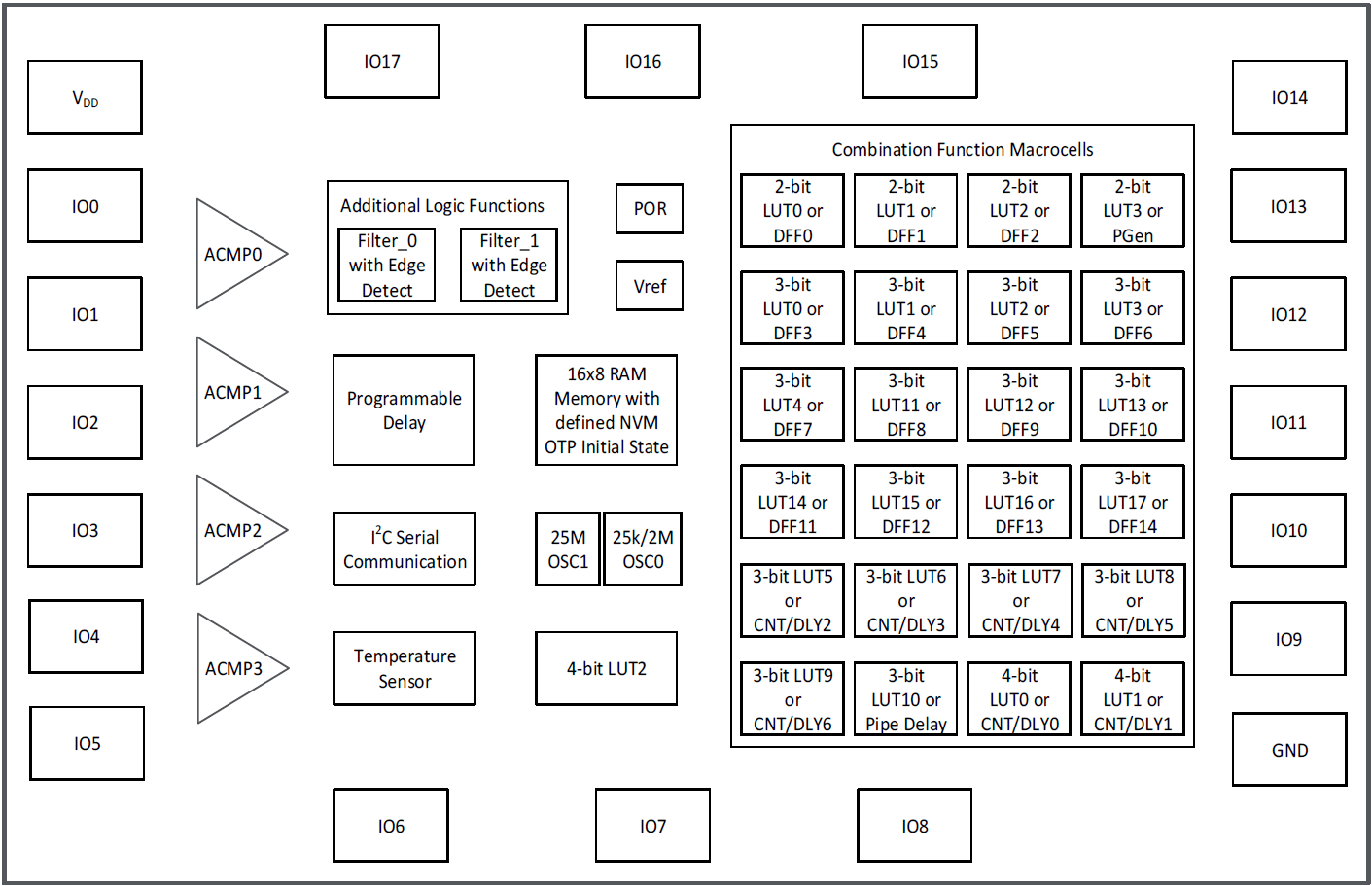

Features
- Four Analog Comparators (ACMP)
- Two Voltage References (VREF)
- Twenty-six Combination Function Macrocells
- Three Selectable DFF/LATCH or 2-bit LUTs
- Twelve Selectable DFF/LATCH or 3-bit LUTs
- One Selectable Pipe Delay or 3-bit LUT
- One Selectable Programmable Pattern Generator or 2-bit LUT
- Five 8-bit delays/counters or 3-bit LUTs
- Two 16-bit delays/counters or 4-bit LUTs
- Two Deglitch Filters with Edge Detectors
- Combinatorial Logic
- One 4-bit LUT
- Serial Communications
- I2C Protocol Compliant
- 16x8 RAM Memory with Defined NVM OTP Initial State
- Pipe Delay – 16 Stage/3 Output (Part of Combination Function Macrocell)
- Programmable Delay
- Two Oscillators
- Configurable 25kHz or 2MHz
- 25MHz Oscillator
- Power-On Reset (POR)
- Analog Temperature Sensor
- Logic and Mixed-Signal Circuits
- Highly Versatile Macrocells
- Read Back Protection (Read Lock)
- Power Supply
- 1.8V (±5 %) to 5.0V (±10 %) VDD
- Ambient Operating Temperature Range: -40 °C to +105 °C
- RoHS-Compliant/Halogen-Free
- Available Package: 20-pin STQFN: 2.0mm x 3.0mm x 0.55mm, 0.4mm pitch
