Overview
Description

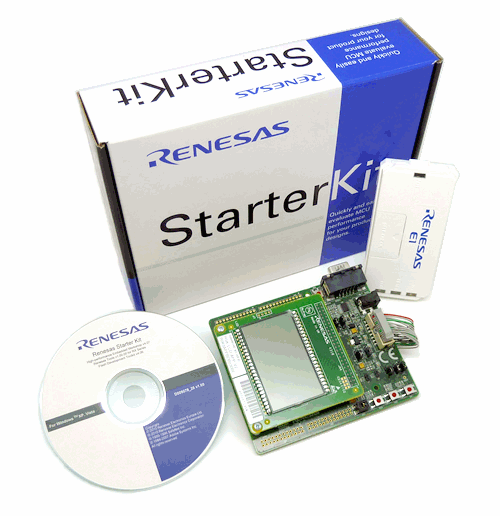

The Renesas Starter Kit for RL78/L12 is intended as a user-friendly introductory and evaluation tool for the RL78/L12 microcontroller. The board also provides a useful platform for evaluating the Renesas suite of development tools for coding and debugging, using CubeSuite+, as well as programming the device using the Renesas Flash Programmer.
The purpose of the board is to enable the user to evaluate the capabilities of the device and its peripherals by giving the user a simple platform on which code can be run, only minutes after opening the box. It can also prove an invaluable tool in development by providing a useful test platform for code already debugged using one of our more powerful emulation tools.
Note: CubeSuite+ is not generally promoted to the U.S. and European customers. Customers in the U.S. and Europe who are interested in CubeSuite+ are requested to contact our regional marketing departments for details.
Features
- Renesas microcontroller programming
- User code debugging

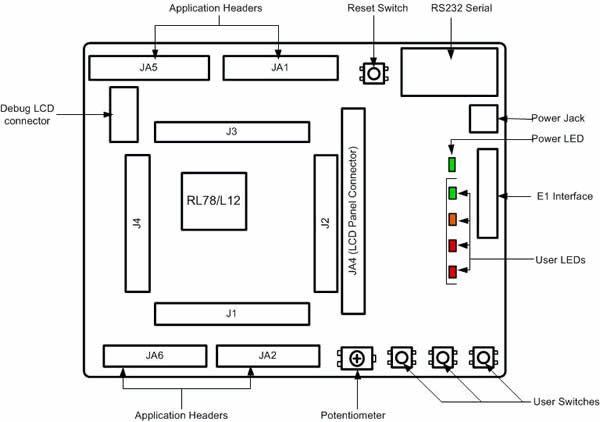

- User circuitry such as switches, LEDs, and a potentiometer
- Sample application
- Sample peripheral device initialization code
Applications
- Camera
- Audio system
- Appliances
- Health equipment
- Remote control
- Power meter
Documentation
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Development Tools | PDF 502 KB 日本語 | |
| PCB Design Files | RSK RL78L12 Design Data
|
|
| Manual - Development Tools | PDF 413 KB 日本語 | |
| Application Note |
PDF
510 KB
AI-generated Summary:
The document explains how to open and navigate sample code projects for the RL78/L12 Renesas Starter Kit using CubeSuite+. It details opening the project file, exploring source files grouped by type, and setting active projects. Each sample project contains C source files, including a main function, generated by Code Generator. An example demonstrates ADC module operation in one-shot mode, showing ADC readings on an LCD after a switch press, with instructions for compiling and running the code on the hardware.
|
|
| Application Note |
PDF
425 KB
AI-generated Summary:
The document guides users through importing sample code projects for the RL78/L12 Renesas Starter Kit into the e2studio IDE. It instructs to start from the welcome screen, use the Import function in the Project Explorer, select 'Existing Projects into Workspace' under the General category, and browse to the specified directory. Users must ensure the 'Copy projects into workspace' option is selected before finishing the import. The sample projects include ADC_OneShot, ADC_Repeat, Application, Async_Serial, BCD_Correction, Direct_Drive_LCD, DMAC, and IC_Master.
|
|
| Quick Start Guide | PDF 635 KB 日本語 | |
| Manual - Development Tools | PDF 113 KB | |
| Manual - Development Tools | PDF 141 KB 日本語 | |
| Manual - Development Tools | PDF 707 KB 日本語 | |
| Manual - Development Tools | PDF 185 KB | |
| Manual - Development Tools | PDF 455 KB | |
| Manual - Development Tools | PDF 508 KB | |
| Schematic | PDF 56 KB | |
13 items
|
||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| Renesas Flash Programmer (Programming GUI) Flash memory programming software [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU, Renesas Synergy, DA1453x, DA1459x, DA1469x, DA1470x, DA148xx, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, V850, 78K0R, 78K0]
|
Programmer (Unit/SW) | Renesas |
1 item
|
||
Sample Code
Product Options
| Part Number | Status | Stock | Description | Regional Availability | Debugger supplied |
|---|---|---|---|---|---|
| R0K5010RLS000BE | Active | Out of Stock | Renesas Starter Kit for RL78/L12 (Kit with CubeSuite+) | US, EU, CN, BR, IN, KR, SG, TW | E1 |
| YR0K5010RLS000BE | Active | Out of Stock | Renesas Starter Kit for RL78/L12 (Kit with e² studio) | US, EU, CN, BR, IN, KR, SG, TW | E1 |
| R0K5010RLS000BE#WS | Obsolete | Out of Stock | Renesas Starter Kit for RL78/L12 (Kit with CubeSuite+) 有償特別出荷対応中 | JP | E1 |
Videos & Training
Additional Videos
Support
Support Communities
- R5F10RGC (RL78/L12) LCD REGISTERS AND SEGMENT OUTPUTS
Hi, I try to drive custom LCD. I use pin configuration and my configs in below. I want to use these pins as a segment which I selected. I select these pin as a segment but I can't drive these segment pins as a output.. Also, How can I ...
Dec 29, 2022
