Overview
Description

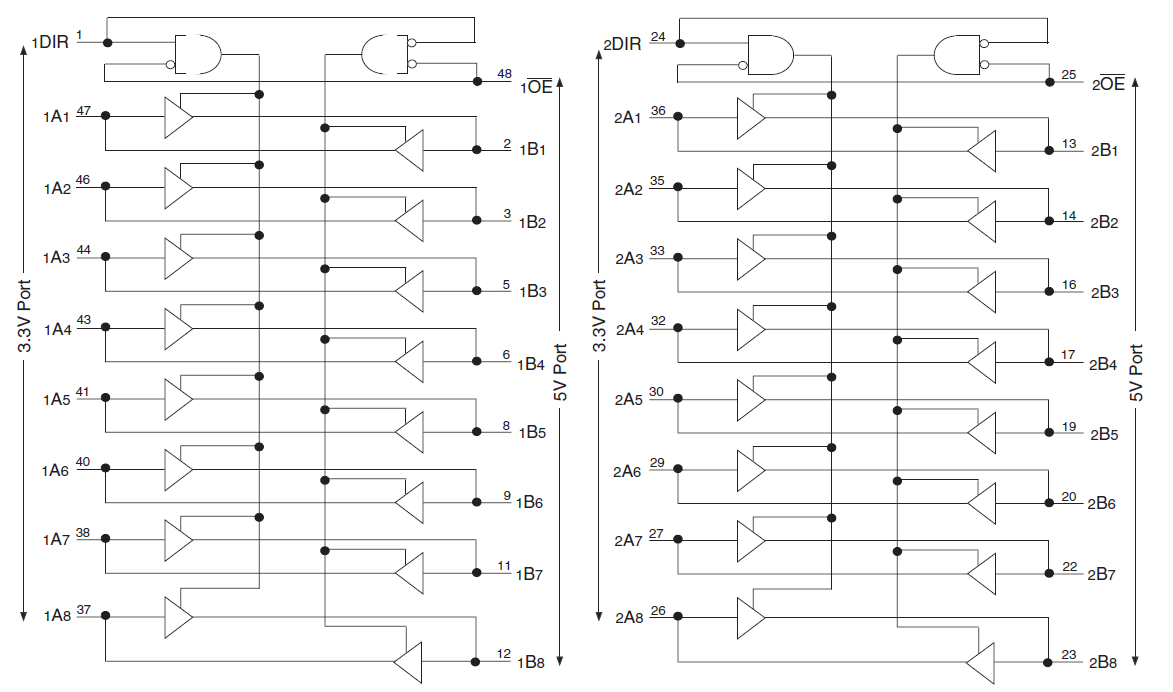

The 74ALVC164245 16-bit 3.3V to 5V level shifting transceiver contains two separate supply rails; B port has VCCB, which is set at 5V, and A port has VCCA, which is set to operate at 3.3V. This allows for translation from a 3.3V to 5V environment and vice-versa. This device is designed for asynchronous communication between data buses. The 74ALVC164245 operates at -40C to +85C
Features
- Typical tSK(o) (Output Skew) 250ps
- ESD > 2000V per MIL-STD-883, Method 3015
- > 200V using machine model (C = 200pF, R = 0)
- VCCA = 2.7V to 3.6V
- VCCB = 5V ± 0.5V
- CMOS power levels (0.4 uW typ. static)
- Rail-to-Rail output swing for increased noise margin
- Available in 48 pin SSOP and TSSOP packages
Comparison
Applications
Design & Development
Boards & Kits
Boards & Kits
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
| TSSOP | 48 | C | Yes | Tube | 1 | 1.827 | Get Samples, | |
| TSSOP | 48 | C | Yes | Reel | 1 | 0.7397 | ||
| SSOP | 48 | C | Yes | Tube | 3 | 0.7732 | Get Samples, | |
| SSOP | 48 | C | Yes | Reel | 3 | 0.7732 |
