ISL84582

Obsolete

Low-Voltage, Single and Dual Supply, Differential 4 to 1 Multiplexer

Features

  • Pb-Free (RoHS Compliant)
  • Fully Specified at 3.3V, 5V, ±5V, and 12V Supplies for 10% Tolerances
  • ON-resistance (rON), VS = ±4.5V 44Ω
  • ON-resistance (rON), VS = +3V 175Ω
  • rON Matching Between Channels, VS = ±5V <2Ω
  • Low Charge Injection, VS = ±5V 1pC (Max)
  • Single Supply Operation +2V to +12V
  • Dual Supply Operation ±2V to ±6V
  • Low Power Consumption (PD) <3µW
  • Fast Switching Action (VS = +5V)
  • tON 43ns
  • tOFF 20ns
  • Guaranteed Max Off-Leakage 2.5nA
  • Guaranteed Break-Before-Make
  • TTL, CMOS Compatible
Find Other Products in Analog Signal Switches

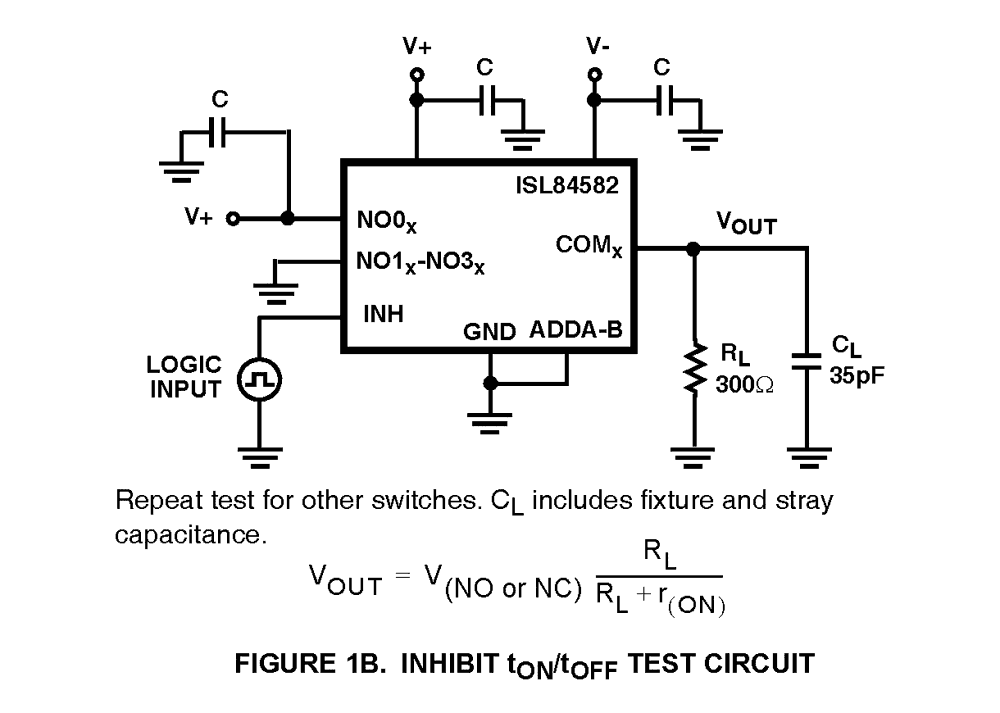

ISL84582 Functional Diagram
ISL84582 Functional Diagram

Description

The Intersil ISL84582 device is made of precision, bi-directional, analog switches configured as a differential 4-Channel multiplexer/demultiplexer. It is designed to operate from a single +2V to +12V supply or from a ±2V to ±6V dual supplies. The device has an inhibit pin to simultaneously open all signal paths. ON-resistance of 39Ω with a ±5V supply and 125Ω with a single +3. 3V supply. Each switch can handle rail-to-rail analog signals. The off-leakage current is only 0. 02nA at +25°C or 0. 2nA at +85°C. All digital inputs have 0. 8V to 2. 4V logic thresholds, ensuring TTL/CMOS logic compatibility when using a single 3. 3V or +5V supply or dual ±5V supplies. The ISL84582 is a differential 4-to-1 multiplexer device.

Applications

  • Battery Powered, Handheld, and Portable Equipment
  • Communications Systems Radios Telecom Infrastructure ADSL, VDSL Modems
  • Test Equipment Medical Ultrasound Magnetic Resonance Image CT and PET Scanners (MRI) ATE Electrocardiograph
  • Audio and Video Signal Routing
  • Various Circuits +3V/+5V DACs and ADCs Sample and Hold Circuits Operational Amplifier Gain Switching Networks High Frequency Analog Switching High Speed Multiplexing Integrator Reset Circuits
Part NumberStatusSamplesStockRoHSPackageLead Count (#)Carrier TypeMoisture Sensitivity Level (MSL)Pb (Lead) FreePb Free CategoryTemp. Range (°C)
ISL84582IVZObsoleteN/AIn StockRoHS:EN
TSSOP16#Tube1YesPb-Free 100% Matte Tin Plate w/Anneal-e3-40 to +85°C
ISL84582IVZ-TObsoleteN/AIn StockRoHS:EN
TSSOP16#Reel1YesPb-Free 100% Matte Tin Plate w/Anneal-e3-40 to +85°C
Loading

Filters

    Recommended Documents (1)

  1. Datasheet
    ISL84582 Datasheet
    RECOMMENDED
    PDF 828 KB isl84582 Mar 24, 2003

    Datasheets (1)

  1. Datasheet
    ISL84582 Datasheet
    RECOMMENDED
    PDF 828 KB isl84582 Mar 24, 2003

    Application Notes & White Papers (4)

  1. Application Note
    AN535: Design Considerations for a Data Acquisition System (DAS)
    PDF 843 KB an535 Jun 05, 2002
    AI-generated Summary: A Data Acquisition System (DAS) requires careful design of signal conditioning, transducer selection, and signal transmission to ensure high accuracy. Signal conditioning includes multiplexing, amplification, filtering, and calibration, ideally performed near the transducer. Transducers convert physical variables to electrical signals, often voltage, with low source resistance preferred. Signal paths can be single-ended or differential; differential paths better reject common mode noise, especially for low-level signals. Shielded twisted pairs and balanced lines reduce interference. Filters, typically Butterworth low-pass, prevent aliasing and maintain signal integrity.
  2. Application Note
    AN557: Recommended Test Procedures for Analog Switches
    PDF 468 KB an557 May 24, 2002
    AI-generated Summary: The document details recommended test procedures for analog switches, focusing on key parameters such as crosstalk, break-before-make delay, and settling time. It explains how to measure crosstalk using decibel ratios and outlines the importance of break-before-make delay to prevent simultaneous switch closure. Settling time is measured to ensure output stability after input changes. It also covers input thresholds, leakage currents, power dissipation, and various switch capacitances, providing test circuit examples and conditions for accurate measurement.
  3. Application Note
    AN1034: CMOS Analog Multiplexers and Switches, Applications Considerations
    PDF 300 KB an1034 Nov 20, 1998
    AI-generated Summary: The document discusses the use of analog switches and multiplexers in wideband applications, highlighting the HI-524 monolithic wideband CMOS multiplexer and the HA-2541 amplifier. It emphasizes the importance of unity gain stability, fast settling time, and output swing for driving coaxial cables. The HI-524 includes feedback resistance to minimize offset voltage. Proper layout is crucial to avoid feedthrough and excessive capacitance. The document also outlines Renesas Electronics' disclaimers on product use, quality grades, safety responsibilities, environmental compliance, and legal restrictions.
  4. Application Note
    AN520: CMOS Analog Multiplexers and Switches; Specifications and Application Considerations
    PDF 270 KB an520 Nov 20, 1998
    AI-generated Summary: Adding a pull-up resistor from CMOS inputs to +5V is essential when interfacing TTL outputs with CMOS inputs to improve interchangeability, noise immunity, compatibility, and reliability. A 2kΩ resistor is generally sufficient. CMOS inputs are compatible with CMOS logic at 5V to 15V without pull-ups. Mechanical switches require pull-up or pull-down resistors to prevent noise and contact issues. Renesas disclaims liability for misuse and emphasizes adherence to product specifications and legal regulations.

    Marketing Collateral (1)

  1. Brochure
    Analog ICs Brochure
    PDF 5.43 MB R07CL0009EJ0800 Rev.8.00 日本語 Nov 10, 2025
