Overview
Description
The RRH46410 gas sensor module simplifies the integration of the Renesas ZMOD4410 Gas Sensor platform with an integrated MCU for a quicker design and faster time-to-market entry. The sensor detects chemical pollution in the form of total volatile organic compounds (VOCs) found in indoor environments. The sensor module comes pre-loaded with operating modes like the 2nd generation, ultra-low power, and public building air quality (PBAQ). The sensor output is based on embedded AI and trained using machine learning for best-in-class accuracy of absolute gas concentration measurements and high part-to-part consistency.
Features
- Sensor output based on AI machine learning algorithmic:
- Absolute measurement of total organic compounds (TVOC) concentrations and indoor air quality (IAQ)
- Estimated carbon dioxide level (eCO2)
- Relative IAQ based on TVOC and odor changes
- Ultra-low average power consumption < 0.2mW
- Siloxane resistant
- JEDEC JESD47 qualified for 10 years lifetime
- Supply voltage: 1.8V to 3.6V
- Operating temperature -40°C to 65°C
- IP67 rating

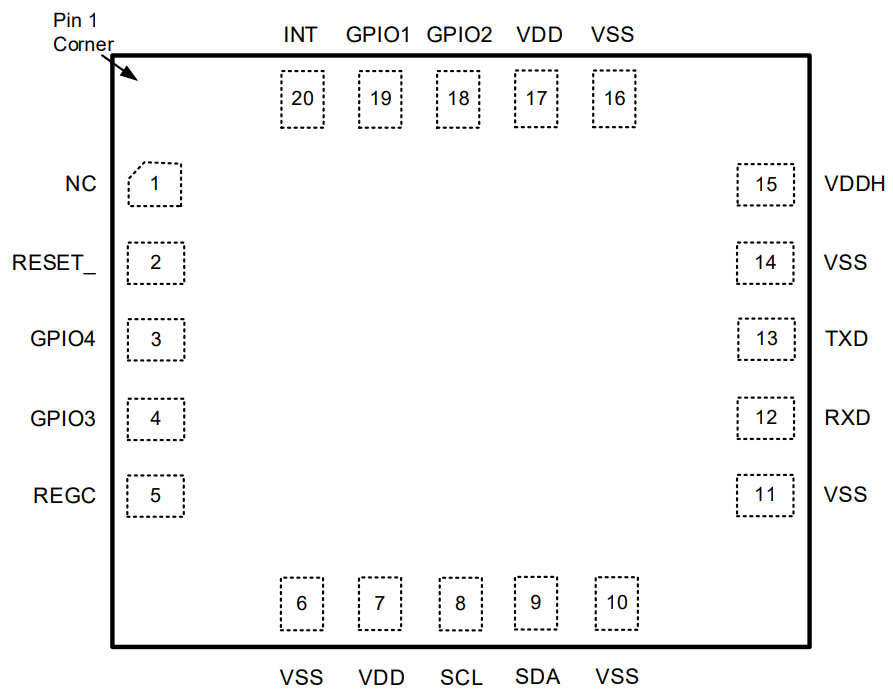

- Package: 4.5 × 4.0 × 0.950 mm body, 0.50 pitch 20-LGA
- Supports I2C and UART
Comparison
Applications
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Datasheet | PDF 1.12 MB | |
| Manual - Software | PDF 514 KB | |
| Application Note | PDF 1.03 MB | |
| End Of Life Notice | PDF 759 KB | |
| Application Note | PDF 471 KB | |
5 items
|
||
Design & Development
Software & Tools
Boards & Kits
Evaluation
RRH46410-EVK
Obsolete
Gas Sensor Module for TVOC and eCO2 Detection Evaluation Kit
The RRH46410-EVK simplifies the evaluation of the RRH46410 Indoor Air Quality (IAQ) sensor. This sensor module contains an integrated MCU that houses the firmware to operate the sensor in multiple modes: Standard second generation, ultra-low power mode, PBAQ1, and relative measurement modes....
Recommended Documents:
Development
QCIOT-RRH46410POCZ
Active
Digital Gas Sensor Module for Indoor Air Quality Applications
The QCIOT-RRH46410POCZ is an intelligent sensor module. The design encompasses the onboard microcontroller with integrated firmware, MEMS gas sensing element, and CMOS signal conditioning IC in one package.
The QCIOT-RRH46410POCZ board provides a standard Pmod™ Type 6A (Extended I²C) connection...
Recommended Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on the CAD Model links in the Product Options table. If a symbol or model isn't available, it can be requested directly from SamacSys.
