Features
- 12 - 0.7V low-power HCSL output pairs
- Save power and board space - no Rp
- Pin-compatible to 9ZX21200 provides easy path to >50% power savings
- Space-saving 56-pin QFN package
- Fixed feedback path for 0ps input-to-output delay
- 9 Selectable SMBus Addresses
- 4 OE# pins allow for a smaller form factor
- PLL or bypass mode
- PLL can de-jitter incoming clock
- 100MHz or 133MHz PLL mode operation for PCIe and QPI applications
- Selectable PLL bandwidth minimizes jitter peaking in downstream PLLs
- Spread spectrum compatible

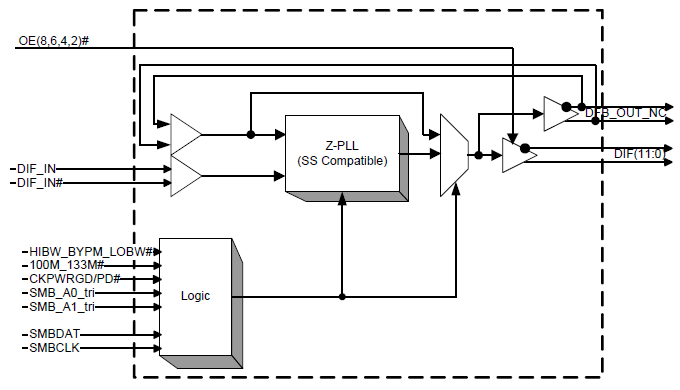

Description
The 9ZXL1230 is a small-footprint, low-power, 12-output differential buffer that meets all the performance requirements of the Intel DB1200ZL specification. It is pin-compatible to the 9ZX21200 while consuming over 50% less power. The 9ZXL1230 is backward compatible with PCIe Gen 1, Gen 2, and QPI 6.4GT/s specifications. A fixed, internal feedback path maintains low drift for critical QPI applications.
