Features
- A, C, and E speeds
- High-speed, low-power CMOS
- Typical tSK(o) (Output Skew) 250ps
- Low input and output leakage ?1 uA (max.)
- VCC = 5V ±10%
- Balanced Output Drivers: ±24mA
- Reduced system switching noise
- Typical VOLP (Output Ground Bounce) 0.6V at VCC = 5V, TA = 25C
- Available in 48 pin SSOP and TSSOP packages

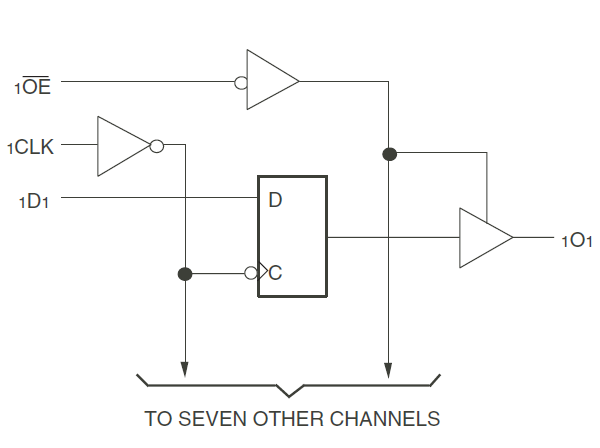

74FCT162374T - Block Diagram
Description
The 74FCT162374T 16-bit high-speed, low-power edge-triggered D-type registers are ideal for use as buffer registers for data synchronization and storage and can operate as two 8-bit registers or one 16-bit register with common clock. The 74FCT162374T offers low ground bounce, minimal undershoot, and controlled output fall times–reducing the need for external series terminating resistors. It is plug-in replacement for the 74FCT16374T for on-board bus interface applications. The 74FCT162374T operates at -40C to +85C
| Part Number | Status | Samples | Stock | RoHS | Package | Lead Count (#) | Temp. Grade | Pb (Lead) Free | Carrier Type |
|---|---|---|---|---|---|---|---|---|---|
| 74FCT162374ATPAG | Obsolete | N/A | In Stock | Contact | TSSOP | 48# | C | Yes | Tube |
| 74FCT162374ATPAG8 | Obsolete | N/A | Out of Stock | Contact | TSSOP | 48# | C | Yes | Reel |
| 74FCT162374ATPVG | Obsolete | N/A | Out of Stock | Contact | SSOP | 48# | C | Yes | Tube |
| 74FCT162374ATPVG8 | Obsolete | N/A | In Stock | Contact | SSOP | 48# | C | Yes | Reel |
| 74FCT162374CTPAG | Obsolete | N/A | In Stock | Contact | TSSOP | 48# | C | Yes | Tube |
| 74FCT162374CTPAG8 | Obsolete | N/A | Out of Stock | Contact | TSSOP | 48# | C | Yes | Reel |
| 74FCT162374CTPVG | Obsolete | N/A | In Stock | Contact | SSOP | 48# | C | Yes | Tube |
| 74FCT162374CTPVG8 | Obsolete | N/A | In Stock | Contact | SSOP | 48# | C | Yes | Reel |
| 74FCT162374ETPAG | Obsolete | N/A | In Stock | Contact | TSSOP | 48# | C | Yes | Tube |
| 74FCT162374ETPAG8 | Obsolete | N/A | Out of Stock | Contact | TSSOP | 48# | C | Yes | Reel |
| 74FCT162374ETPVG | Obsolete | N/A | In Stock | RoHS:EN RoHS:JA | SSOP | 48# | C | Yes | Tube |
| 74FCT162374ETPVG8 | Obsolete | N/A | Out of Stock | Contact | SSOP | 48# | C | Yes | Reel |
