128K x 36 Sync, 3.3V/2.5V, Dual-Port RAM, Interleaved I/O's

Package Information

Lead Count (#) 208
Pkg. Code BF208
Pitch (mm) 0.8
Pkg. Type CABGA
Pkg. Dimensions (mm) 15.0 x 15.0 x 1.4

Environmental & Export Classifications

Pb (Lead) Free No
Moisture Sensitivity Level (MSL) 4
ECCN (US) NLR
HTS (US) 8542320041

Product Attributes

Lead Count (#) 208
Pb (Lead) Free No
Carrier Type Reel
Moisture Sensitivity Level (MSL) 4
Price (USD) | 1ku 181.70488
Architecture Dual-Port
Bus Width (bits) 36
Core Voltage (V) 2.5
Density (Kb) 4608
Function Collision Detect, Counters, Dual Clocks, Interrupt, JTAG, Sleep Mode
I/O Frequency (MHz) 1 - 1
I/O Type 2.5 V LVTTL, 3.3 V LVTTL
Interface Sync
Length (mm) 15
MOQ 1000
Organization 128K x 36
Output Type Flowthrough, Pipelined
Package Area (mm²) 225.0
Pb Free Category e0
Pitch (mm) 0.8
Pkg. Dimensions (mm) 15.0 x 15.0 x 1.4
Pkg. Type CABGA
Qty. per Carrier (#) 0
Qty. per Reel (#) 1000
Reel Size (in) 13
Requires Terms and Conditions Does not require acceptance of Terms and Conditions
Tape & Reel Yes
Temp. Range -40 to 85°C
Thickness (mm) 1.4
Width (mm) 15

Description

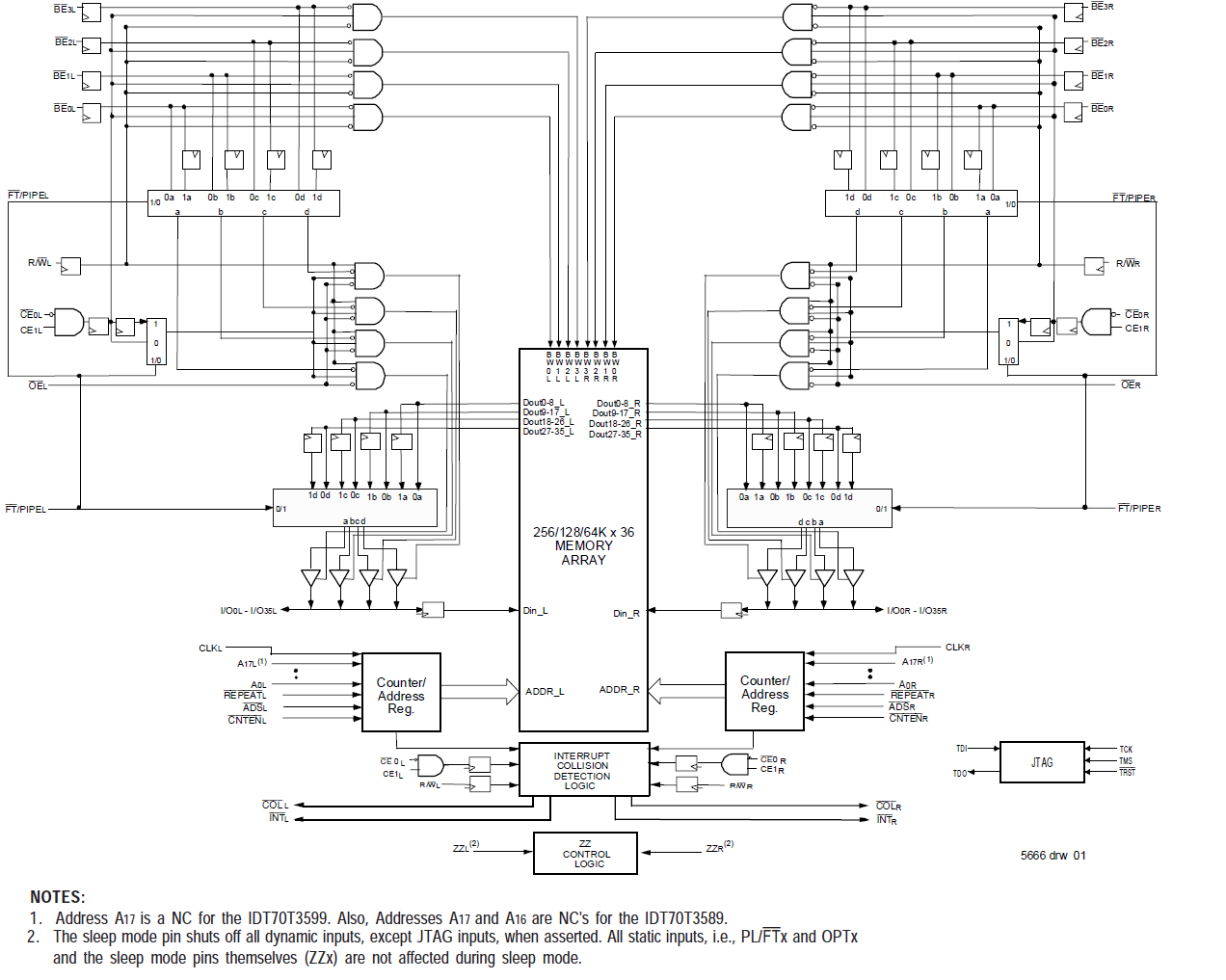

The 70T3599 is a high-speed 128K x 36 bit synchronous Dual-Port RAM that has been optimized for applications having unidirectional or bidirectional data flow in bursts. An automatic power down feature, controlled by CE0 and CE1, permits the on-chip circuitry of each port to enter a very low standby power mode. The 70T3599 can support an operating voltage of either 3.3V or 2.5V on one or both ports, controllable by the OPT pins. The power supply for the core of the device (VDD) is at 2.5V.
