Features
- True dual-ported memory cells allow simultaneous access of the same memory location
- Versatile control for write: Separate write control for the lower and upper byte of each port
- Easily expands data bus width to 32 bits or more using Slave
- On-chip port arbitration logic
- BUSY input
- Fully asynchronous operation from either port
- Battery backup operation – 2V data retention
- TTL-compatible; single 5V (±10%) power supply
- Available in 68-pin ceramic PGA and Flatpack packages

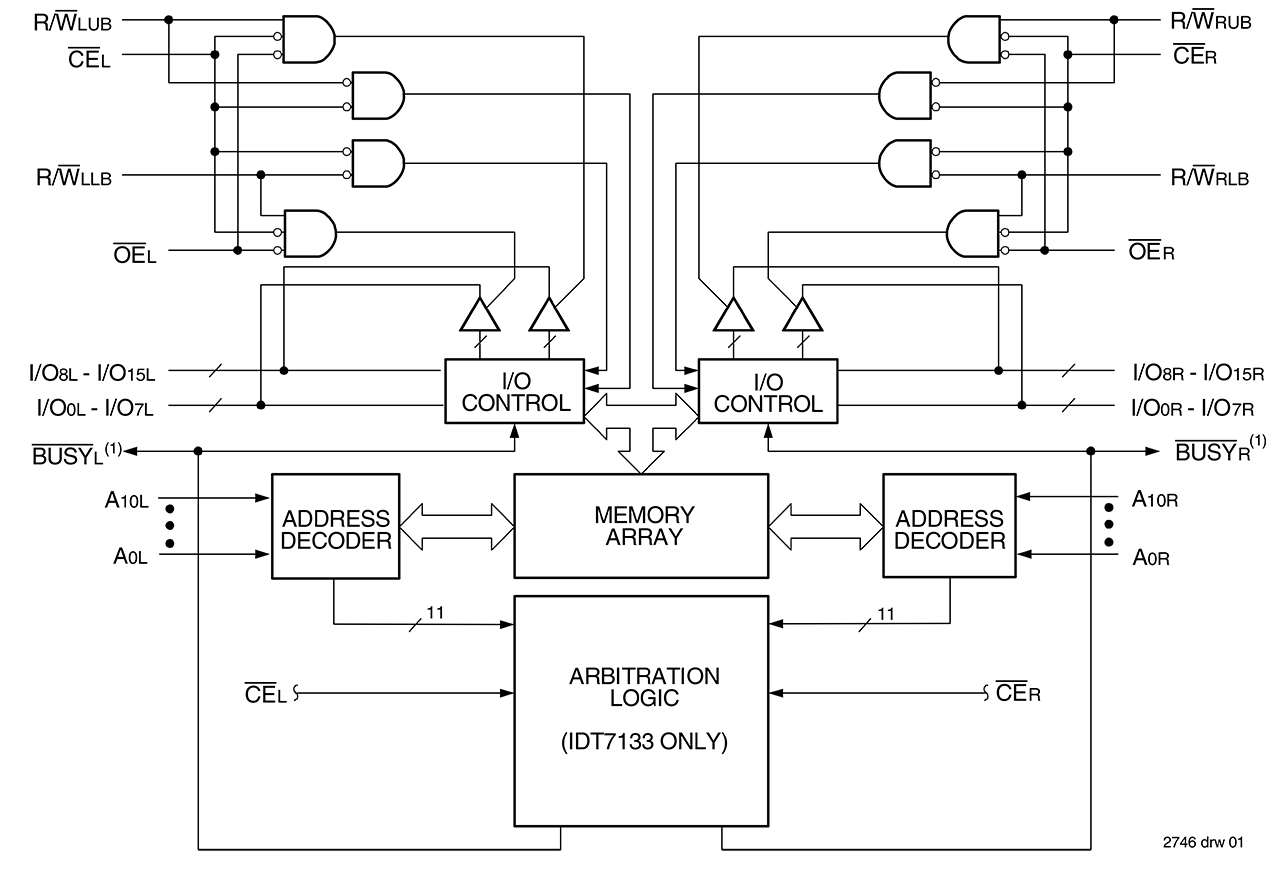

5962-88610 (7133/43) Functional Block Diagram
Description
The 5962-88610 (7133/43) is a high-speed 2K x 16 dual-port static RAM. Using the Master/Slave dual-port RAM approach in 32-bit or wider memory system applications results in full-speed, error-free operation without the need for additional discrete logic. The military-grade product complies with MIL-PRF-38535 QML.
Parameters
| Attributes | Value |
|---|---|
| Core Voltage (V) | 5 |
| Bus Width (bits) | 16 |
| Density (Kb) | 32 |
| Pkg. Code | GU68 |
| Interface | Async |
| I/O Type | 5.0 V TTL |
| Access Time (ns) | 90 |
| Temp. Range (°C) | -55 to 125°C |
| Architecture | Dual-Port |
| Organization | 2K x 16 |
| Function | Busy, Master |
Package Options
| Pkg. Type | Pkg. Dimensions (mm) | Lead Count (#) | Pitch (mm) |
|---|---|---|---|
| PGA | 29.46 x 29.46 x 3.68 | 68 | 2.54 |
| Part Number | Status | Samples | Stock | Package | Budgetary Price (USD) | Lead Count (#) | Temp. Grade | Pb (Lead) Free | Carrier Type | Moisture Sensitivity Level (MSL) | Country of Assembly | Country of Wafer Fabrication |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5962-8861007ZA | Active | N/A | Out of Stock | PGA | 1ku | $200.91 | 68# | M | No | Tray | 1 | THAILAND | TAIWAN, USA |
| 5962-8861008ZA | Obsolete | N/A | Out of Stock | PGA | 68# | M | No | Tray | 1 | |||
| 5962-8861009ZA | Obsolete | N/A | Out of Stock | PGA | 68# | M | No | Tray | 1 | |||
| 5962-8861010ZA | Obsolete | N/A | Out of Stock | PGA | 68# | M | No | Tray | 1 | |||
| 5962-8861011UA | Obsolete | N/A | In Stock | FPACK | 68# | M | No | Tube | 1 | |||
| 5962-8861011ZA | Obsolete | N/A | Out of Stock | PGA | 68# | M | No | Tray | 1 | |||
| 5962-8861012ZA | Obsolete | N/A | Out of Stock | PGA | 68# | M | No | Tray | 1 |
