Features
- Supports PCI Express®TM HCSL Outputs 0.7V current mode differential pair
- Supports LVDS output Levels
- Packaged in 8-pin SOIC
- RoHS 5 (green) or RoHS 6 (green and lead-free) compliant packaging
- Operating voltage of 3.3V
- Low power consumption
- Input frequency of 25MHz
- Short-term jitter 100ps (peak-to-peak)
- Output Enable via pin selection
- Industrial temperature range available
- For PCIe Gen2 applications, see the 5V41064
- For PCIe Gen3 applications, see the 5V41234

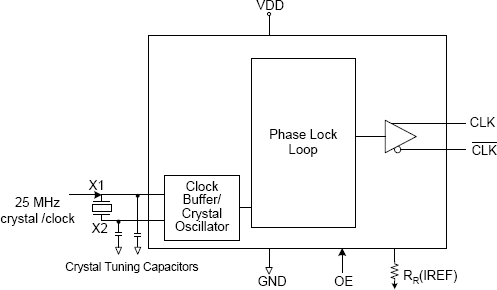

557-01 - Block Diagram
Description
The 557-01 is a clock chip designed for use in PCI Express® cards as a clock source. It provides a pair of differential outputs at 100MHz in a small 8-pin SOIC package. Using Renesas' patented Phase-Locked Loop (PLL) techniques, the device takes a 25MHz crystal input and produces HCSL (Host Clock Signal Level) differential outputs at 100MHz clock frequency. LVDS signal levels can also be supported via an alternative termination scheme.
Parameters
| Attributes | Value |
|---|---|
| Diff. Outputs | 1 |
| App Jitter Compliance | PCIe Gen1 |
| Outputs (#) | 1 |
| Output Type | HCSL |
| Output Freq Range (MHz) | 100 - 100 |
| Input Freq (MHz) | 25 - 25 |
| Inputs (#) | 1 |
| Input Type | Crystal, LVCMOS |
| Output Banks (#) | 1 |
| Core Voltage (V) | 3.3 |
| Output Voltage (V) | 3.3 |
| Product Category | PCI Express Clocks |
Package Options
| Pkg. Type | Pkg. Dimensions (mm) | Lead Count (#) | Pitch (mm) |
|---|---|---|---|
| SOIC | 4.9 x 3.9 x 1.5 | 8 | 1.27 |
| Part Number | Status | Samples | Stock | Package | Budgetary Price (USD) | Lead Count (#) | Carrier Type | Moisture Sensitivity Level (MSL) | Qty. per Reel (#) | Qty. per Carrier (#) | Pb (Lead) Free | Pb Free Category | Temp. Range (°C) | Country of Assembly | Country of Wafer Fabrication |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 557M-01LF | Active | Available | In Stock | SOIC | 1ku | $1.63 | 8# | Tube | 1 | 0 | 97# | Yes | e3 Sn | 0 to 70°C | THAILAND | SINGAPORE |
| 557M-01LFT | Active | N/A | Out of Stock | SOIC | 1ku | $1.63 | 8# | Reel | 1 | 3000# | 0 | Yes | e3 Sn | 0 to 70°C | THAILAND | SINGAPORE |
| 557MI-01LF | Obsolete | N/A | Out of Stock | SOIC | 8# | Tube | 1 | 0 | 97# | Yes | e3 Sn | -40 to 85°C | |||
| 557MI-01LFT | Obsolete | N/A | Out of Stock | SOIC | 8# | Reel | 1 | 3000# | 0 | Yes | e3 Sn | -40 to 85°C |
