TFT-LCD, I2C Programmable, VCOM Calibrator Evaluation Board
The ISL45041EVAL1Z evaluation board is used to evaluate the features of the ISL45041 TFT-LCD I2C programmable VCOM calibrator. All materials in the kit are RoHS...

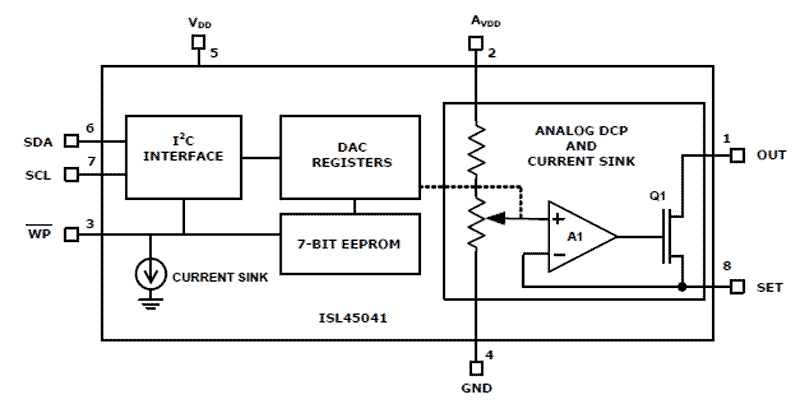

The VCOM voltage of an LCD panel needs to be adjusted to remove flicker. This part provides a digital interface to control the sink current output that attaches to an external voltage divider. The increase in output sink current lowers the voltage on the external divider, which is applied to an external VCOM buffer amplifier. The desired VCOM setting is loaded from an external source via a standard 2-wire I2C serial interface. At power-up, the part automatically comes up at the last programmed EEPROM setting. An external resistor attaches to the SET pin and sets the full-scale sink current that determines the lowest voltage of the external voltage divider. The ISL45041 is available in an 8 Ld 3mm x 3mm TDFN package with a maximum thickness of 0.8mm for ultra-thin LCD panel design. An evaluation kit complete with software to control the DCP from a computer is available.
|
|
|
---|---|---|
Type | Title | Date |
Datasheet | PDF 520 KB | |
Application Note | PDF 564 KB | |
Product Advisory | PDF 363 KB | |
Product Change Notice | PDF 151 KB | |
Product Change Notice | PDF 223 KB | |
Product Change Notice | PDF 269 KB | |
Application Note | PDF 298 KB | |
Application Note | PDF 357 KB | |
8 items
|
The ISL45041EVAL1Z evaluation board is used to evaluate the features of the ISL45041 TFT-LCD I2C programmable VCOM calibrator. All materials in the kit are RoHS...
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
