Overview
Description

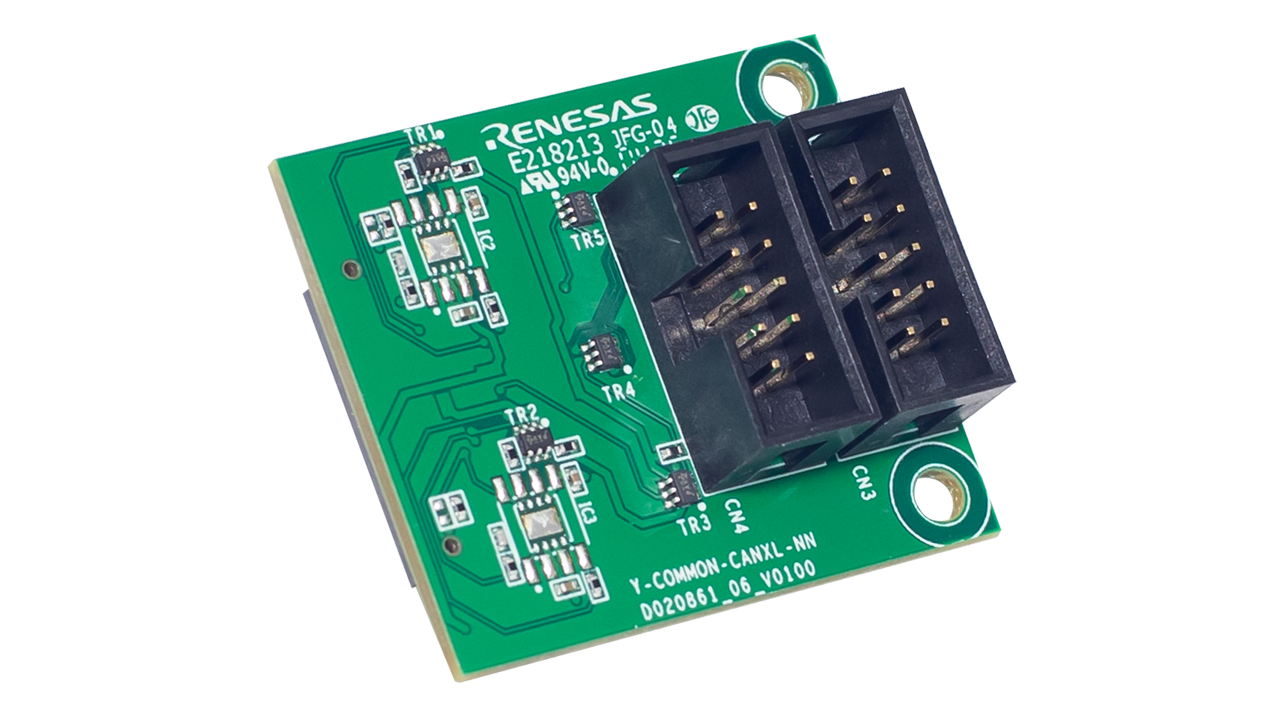

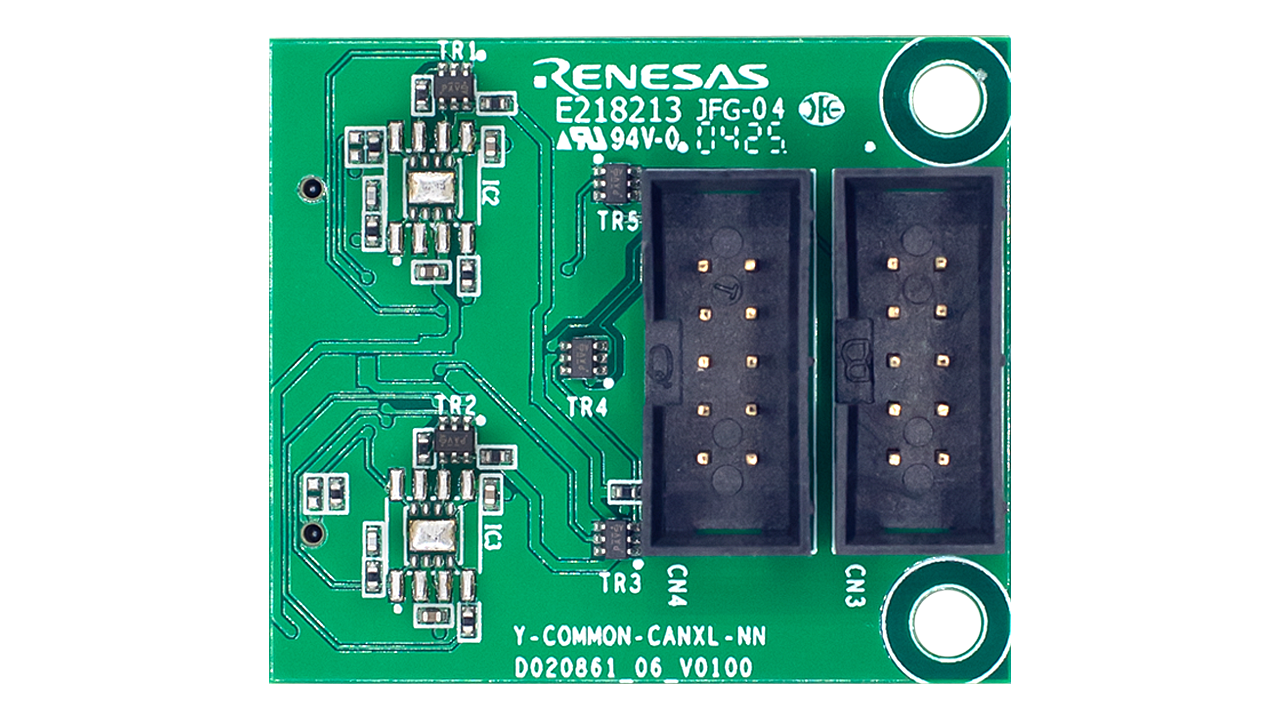

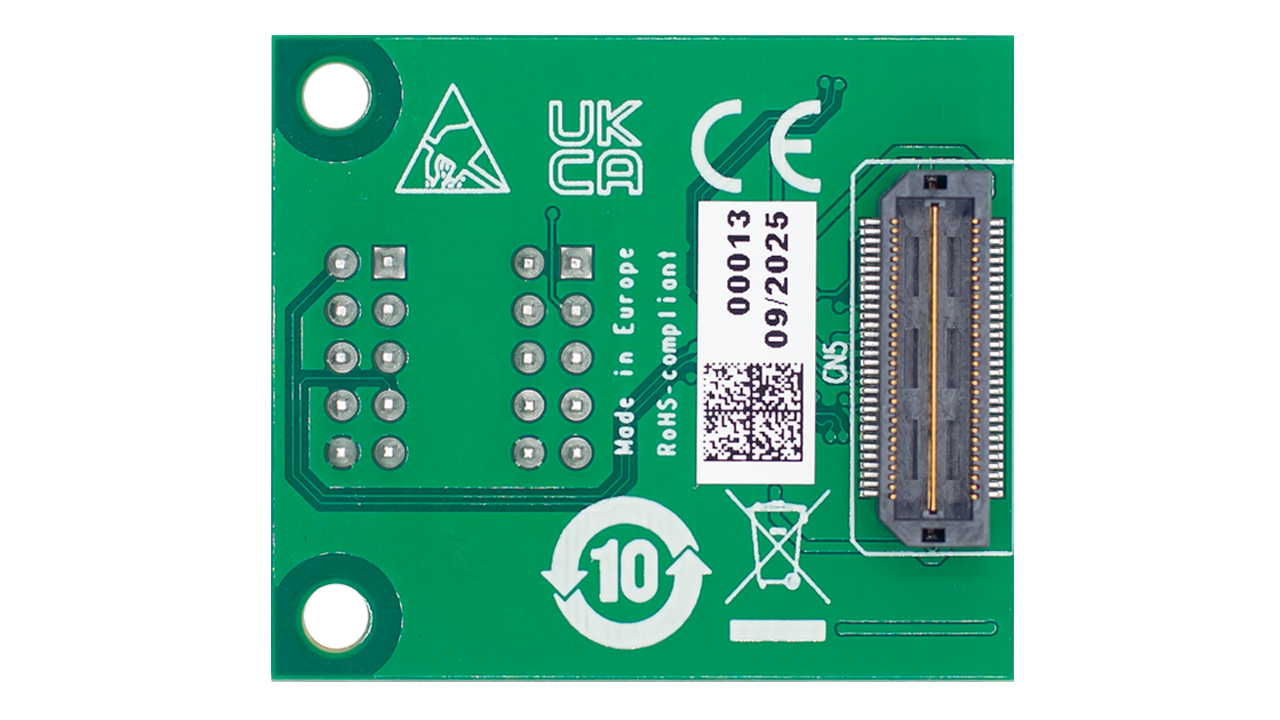

The CAN XL Extension Board can be used with the mainboard Y-COMMON-MB-T1-V1 of the common RH850 / R-Car MCU Evaluation Platform. A CAN XL transceiver in compatible 8-pin package must be mounted by the user. Please take care that the MCU series piggyback board supports CAN XL.
Features
- CAN XL extension board without CAN XL transceiver
Applications
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Development Tools |
PDF
14.39 MB
The common mainboard is an expansion board for RH850 and R‑Car U5x MCU piggyback boards, adding multiple communication interfaces and enabling system evaluation and prototyping. It integrates transceivers for standard interfaces (CAN, LIN, SENT, FlexRay), as well as Pmod™ ports for extension boards, and connectors for high-speed communication and display modules. The manual provides detailed information on board features, setup, interfaces, power supply, and supported configurations.
|
|
1 item
|
||
Design & Development
Related Boards & Kits
Boards & Kits
Evaluation
Y-COMMON-MB-T1-V1
Active
RH850 MCUs Mainboard Evaluation System
The RH850 MCUs Mainboard Evaluation System provides communication interfaces to the RH850 MCU piggyback boards, offering compatibility across the entire RH850 MCU line for scalable development. The modular evaluation system consists of mainboards and piggyback boards, allowing users to evaluate... Read More
Recommended Documents:
Product Options
| Part Number | Status | Stock | Sampleable | Pb (Lead) Free |
|---|---|---|---|---|
| Y-COMMON-CANXL-NN | Active | Out of Stock | N/A | No |
