Overview
Description

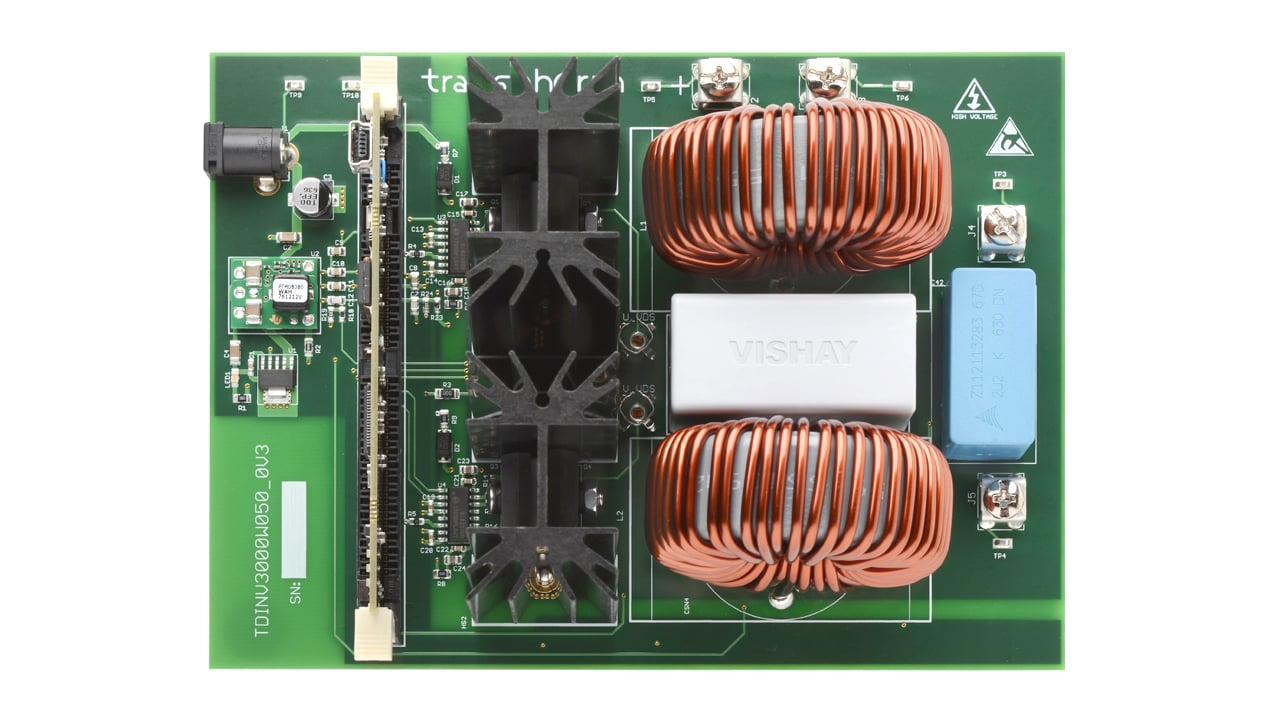

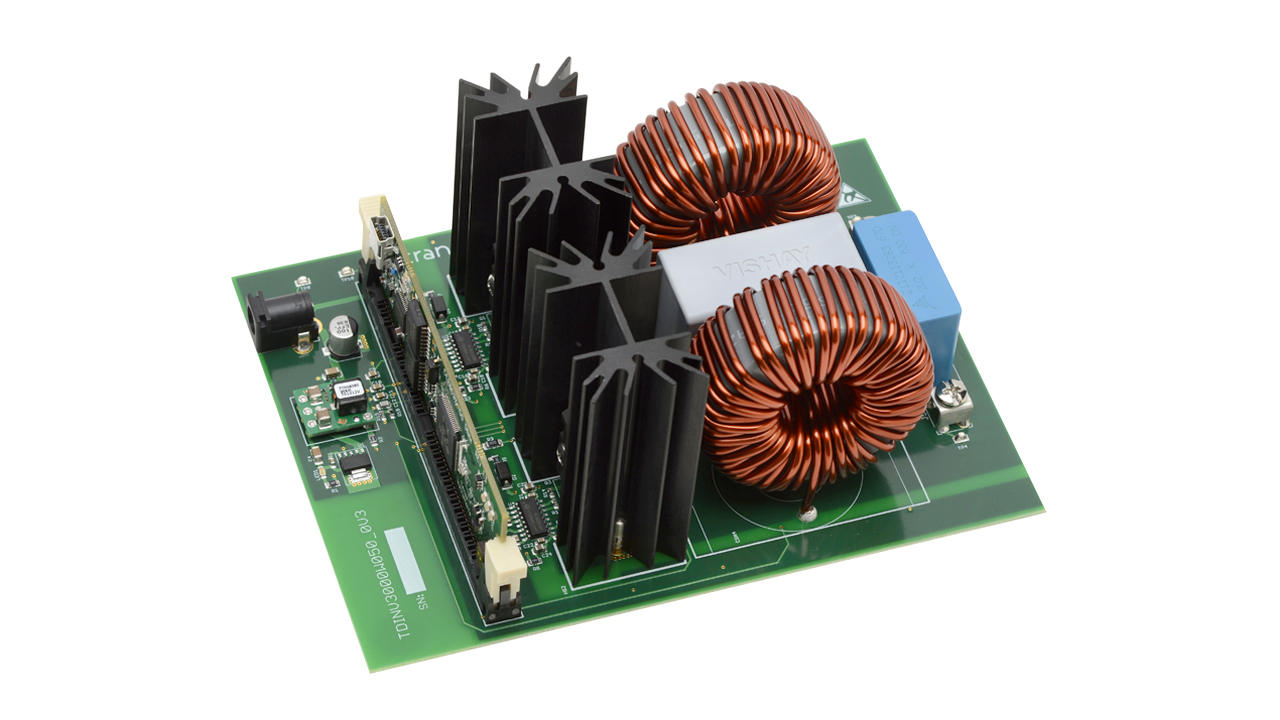

The TDINV3000W050 3.0kW inverter evaluation kit provides an easy way to evaluate the performance advantages of GaN FETs in various inverter applications, such as solar and UPS. The kit provides the main features of a single-phase inverter in a proven, functional configuration, operating at or above 50kHz. At the core of the inverter are four 50mΩ GaN FETs configured as a full bridge and includes flexible microcontroller options.
Features
- Switching frequency: 50kHz
- Customizable with firmware
- Features TP65H050WS
- Easy-to-use platform to investigate GaN
Applications
Design & Development
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on the CAD Model links in the Product Options table. If a symbol or model isn't available, it can be requested directly from SamacSys.
