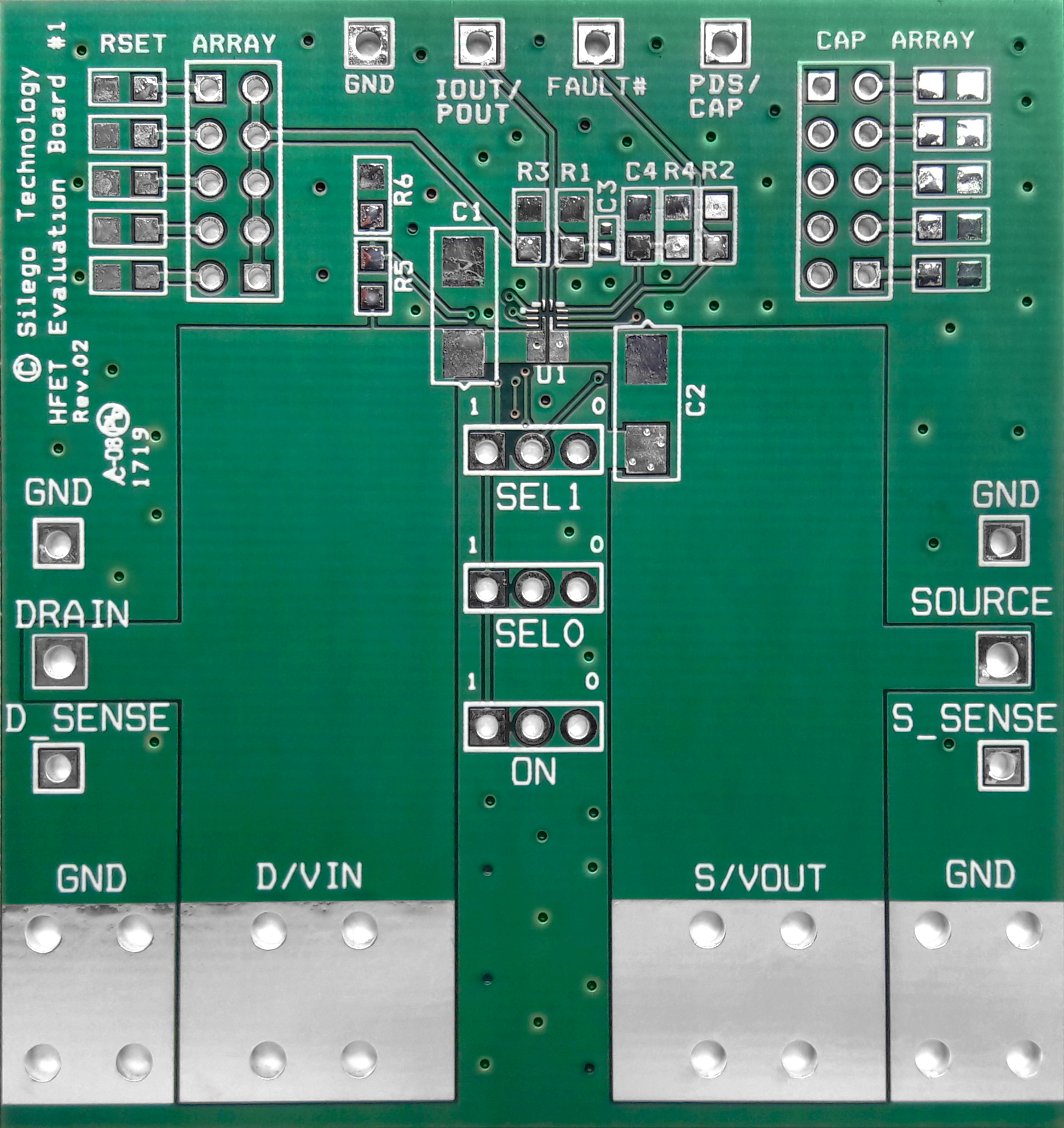

SLG59H1120V High-Voltage GreenFET Load Switch with Programmable OVP and Analog Current Monitor Output Evaluation Board

The SLG59H1120V evaluation board evaluates the SLG59H1120V high-voltage GreenFET load switch, enabling assessment of its switching performance and power management capabilities in high-voltage applications. Dedicated sense test points are provided for accurate R_DS(on) characterization, supporting detailed evaluation of device performance during testing. These test points are intended for measurement purposes only and are not designed to carry high currents.

For details on how to use the evaluation board, please refer to the evaluation board user manual included in the datasheet.
