Bidirectional Buck-Boost Voltage Regulator Evaluation Board

ISL95338EVAL1Z

Active
Order Now

The ISL95338EVAL1Z evaluation board is used to evaluate the ISL95338 bidirectional buck-boost voltage regulator, which provides bidirectional buck-boost voltage regulation and protection features. Renesas' advanced R3™ Technology is used to provide high light-load efficiency, fast transient response, and seamless DCM/CCM transitions.

The ISL95338 supports bidirectional buck-boost voltage regulation from a wide range of DC power sources, enabling power conversion in both forward and reverse directions and safely converts it to a regulated voltage up to 24V. It demonstrates various system functionalities such as forward and reverse modes, programmable soft-start, adjustable VOUT, and integrated protection functions including vercurrent protection (OCP), overvoltage protection (OVP), undervoltage protection (UVP), over-temperature protection (OTP), and etc. SMBus/I²C programmability enables configuration of key system parameters, including input and output current limits and output voltage settings.

Features

  • Bidirectional buck, boost, and buck-boost operation
  • Input voltage range 3.8V to 24V (no dead zone)
  • Output voltage up to 20V
  • Up to 1MHz switching frequency
  • Programmable soft-start time
  • LDO output for VDD and VDDP
  • System status alert function
  • Bidirectional internal discharge function
  • Active switching for negative voltage transitions
  • Bypass mode in both directions
  • Forward mode enable/Reverse mode enable
  • OCP, OVP, UVP, and OTP protections
  • SMBus and auto-increment I²C compatible

Applications

Consumer Electronics

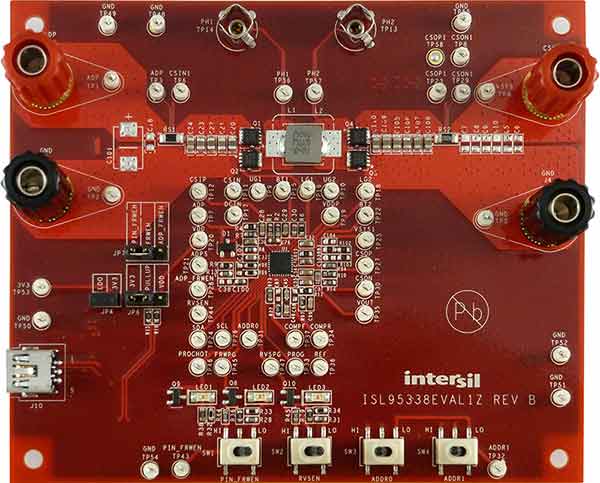

ISL95338EVAL1Z USB-C Voltage Regulator Evaluation Board

Products in the Design

Buck-Boost Controllers (External FETs)
ISL95338 Active
Bidirectional Buck-Boost Voltage Regulator
Datasheet

Sample & Buy

ISL95338EVAL1Z USB-C Voltage Regulator Evaluation Board

ISL95338EVAL1Z

Active
Pb (Lead) Free:Yes
ECCN (US):EAR99
HTS (US):8473.30.1180
1u | $160.87Budgetary Price

Videos & Training

Learn how to set up the ISL95338 evaluation board and connect the EVB to the GUI interface. See a demonstration of the GUI interface, forward mode, reverse mode, and phase voltages.
