ISL8120EVAL3Z

Last Time Buy

Dual/n-Phase Buck PWM Controller with Integrated Drivers Evaluation Board

Order Now
ISL8120EVAL3Z User Guide

Overview

The ISL8120EVAL3Z evaluation board is used for a performance demo of dual independent outputs and DDR applications.

The ISL8120 integrates two voltage-mode synchronous buck PWM controllers. It can be used either for dual independent outputs or a 2-phase single output regulator.

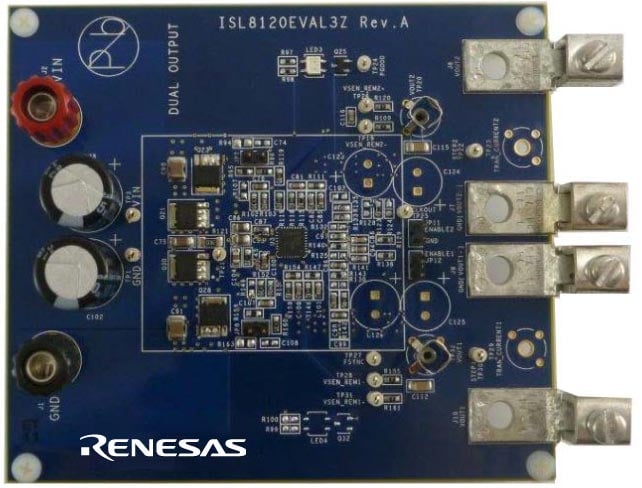

ISL8120EVAL3Z Evaluation Board
ISL8120EVAL3Z Evaluation Board
  • Output voltage preset to 1.2V/25A
  • Input power terminals
  • Output lugs for load connections
  • Input electrolytic capacitors used to handle the input current ripples
  • Two upper and two lower Renesas "speed" series LFPAK MOSFETs are used for each phase
  • 320nH PULSE surface mount inductors are used for each phase
  • Two SANYO POSCAP 2R5TPF470M7L (7mΩ) are used as output E-caps
  • Remote sense posts to monitor and evaluate the system voltage regulations

Documentation

Featured Documentation
Type Title Date
Manual - Development Tools
ISL8120EVAL3Z User Guide
PDF 1.24 MB
Datasheet
ISL8120 Datasheet
PDF 1.88 MB
2 items

Design & Development

Software Downloads
Type Title Date
PCB Design Files
ISL8120EVAL3Z Design Files
ZIP 148 KB
1 item
