Overview
Description

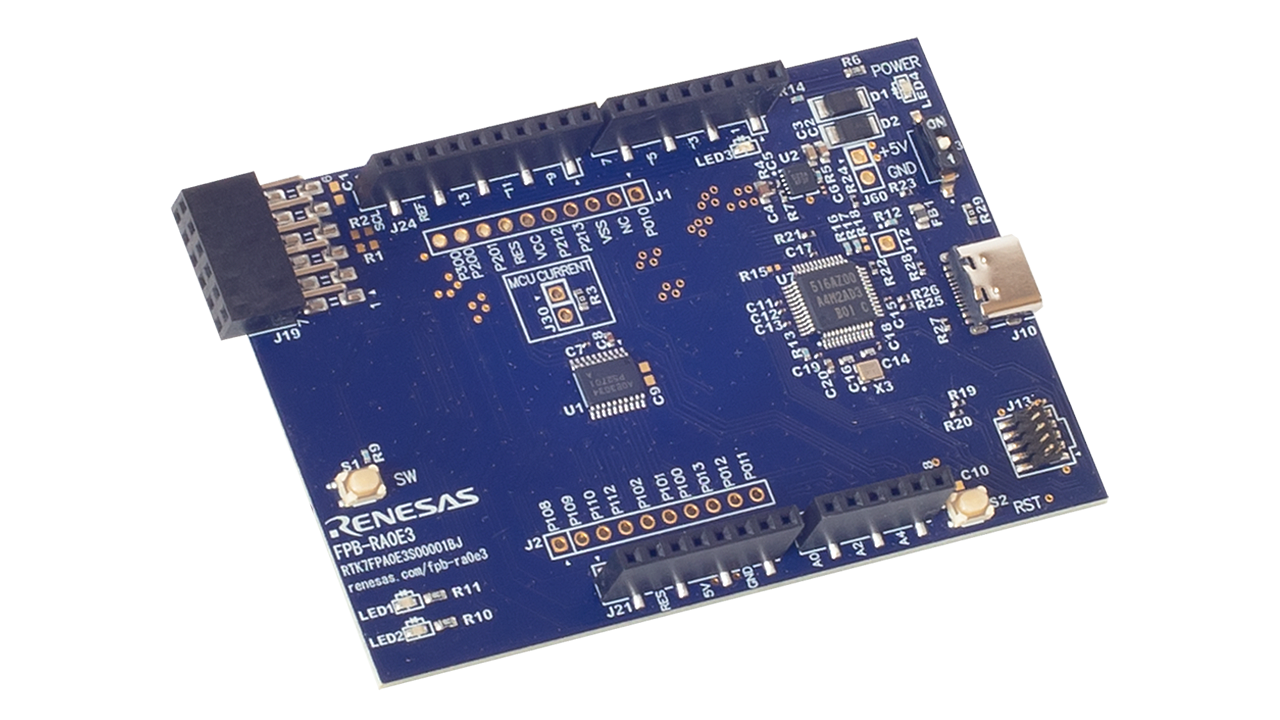

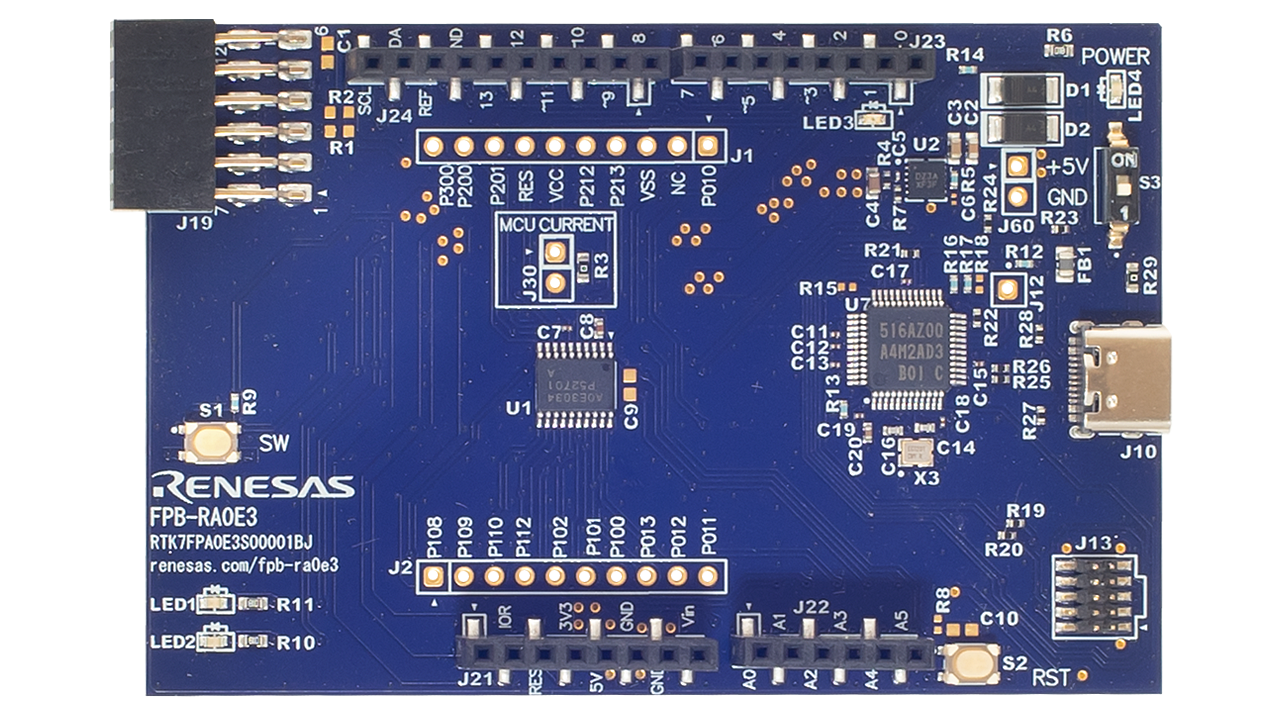

The RA0E3 Fast Prototyping Board features the RA0E3 MCU and provides a streamlined evaluation board for evaluating and developing prototypes across a wide range of applications. It includes a built‑in SEGGER J-Link™ emulator, enabling easy programming and debugging without requiring additional hardware.
Designed for flexibility, the board offers standard Arduino Uno™ and Pmod™ interfaces, plus through‑hole access to all MCU pins for expanded connectivity.
Sample software is available to help you quickly evaluate RA0E3 MCU functionality and integrate the board with wireless modules, sensor add‑ons, and other peripherals.
Features
- Equipped with an RA0E3 32-bit microcontroller (R7FA0E3034ZSD)
- 32MHz, Arm® Cortex®-M23 Core
- Flash: 16KB, RAM: 2KB
- 20-pin TSSOP (6.5mm x 4.4mm x 1.2mm, 0.65mm pitch)
- No additional tools are required for program writing/debugging with the built-in SEGGER J-Link™ emulator circuit
- Through-holes with access to all of the pins of the MCU
- Arduino Uno™ and Pmod™ interfaces
- Small size board: 55.88mm x 85mm
- Support for various RA0E3 software and tools
Applications
Documentation
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Quick Start Guide |
PDF
483 KB
The RA0E3 Fast Prototyping Board (FPB-RA0E3/RTK7FPA0E3S00001BJ) is designed for evaluating the RA0E3 MCU. This quick start guide provides an overview, initial setup instructions, and explains key component configurations. It also illustrates how to use various functions via the board layout diagram.
|
|
| Manual - Development Tools |
PDF
2.07 MB
日本語
The RA0E3 Fast Prototyping Board (FPB-RA0E3/RTK7FPA0E3S00001BJ) is an evaluation board for the Renesas RA0E3 MCU. This manual describes hardware specifications, switch configuration methods, and initial setup procedures to help users quickly get started with prototyping and testing.
|
|
| PCB Design Files | FPB-RA0E3 - Design Package
The design package for the RA0E3 Fast Prototyping Board (FPB-RA0E3) includes the circuit diagram, bill of materials (BOM), printed circuit board (PCB) layout files, 3D model file, and Gerber data, providing essential resources for evaluation and development.
|
|
| Application Note |
PDF
549 KB
Outlines the contents of the example project bundle for the FPB-RA0E3 kit. These example projects demonstrate how to develop code using the Renesas Flexible Software Package (FSP) modules supported by the kit.
|
|
| Application Note |
PDF
4.90 MB
日本語
This tutorial describes the basic development workflow for the RA0 series MCUs (e.g., RA0E1), covering TAU timer configuration, interrupt handling, and 500ms LED control coding, as well as build and debug procedures using e² studio and FSP. Using the FPB-RA0E1 in a bare-metal setup, it demonstrates clock, pin, and timer configuration along with C code examples to illustrate the minimal development flow for RA0 devices.
|
|
| Report | PDF 187 KB 日本語 | |
6 items
|
||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| RA Flexible Software Package (FSP) FSP is an enhanced software package designed to provide easy-to-use, scalable, high-quality software for embedded system designs using Renesas RA Family of Arm Microcontrollers.
Note: FSP with e² studio Installer (Platform Installer) will install the e² studio tool, FSP packs, GCC toolchain, and Segger J-Link drivers required to use this software. No additional installations are required.
|
Software Package | Renesas |
1 item
|
||
Sample Code
Sample Code
Filters
|
||
|---|---|---|
| Type | Title | Date Date |
| Sample Code | Quick-Start Example Project for FPB-RA0E3
The example project demonstrates the capability of the FSP and FPB-RA0E3 by using multiple peripherals. The project initializes the IRQ and GPIO modules and uses SW to control the flashing frequency of the user LEDs. Once programmed, the user can control the board by button presses on the device.
|
|
| Sample Code | FPB-RA0E3 Example Project Bundle
The FPB-RA0E3 example project shows how to write code using various Flexible Software Package (FSP) modules supported by the FPB-RA0E3 kit. The FSP provides an optimized, easy-to-use, scalable, and high-quality software solution for embedded system design.
|
|
2 items
|
||
Related Boards & Kits
Boards & Kits
RA0E1 Fast Prototyping Board
The RA0E1 Fast Prototyping Board is equipped with an RA0E1 MCU, making it an evaluation board specialized for prototype development for a variety of applications. It has a built-in SEGGER J-Link™ emulator circuit so you can write and debug programs without additional tools. In addition, it... Read More
RA0E2 Fast Prototyping Board
The RA0E2 Fast Prototyping Board comes equipped with an RA0E2 MCU and is an evaluation board specialized for prototype development for a variety of applications. It has a built-in SEGGER J-Link™ emulator circuit so you can write/debug programs without additional tools. In addition, it includes... Read More
Product Options
| Part Number | Status | Stock | Sampleable |
|---|---|---|---|
| RTK7FPA0E3S00001BJ | Active | In Stock | Available |
Videos & Training
We’ll guide first‑time users of the RA family through installing a development environment, generating a project, and checking basic operation using the RA0E1 Fast Prototyping Board. The board paired with a J‑Link ARM debugger is used as the practical example to help new developers get started quickly and confidently.
