Overview
Description
The DA16600 evaluation kits are demonstration and development platforms designed to quickly and easily start developing applications and products using DA16600 Wi-Fi and Bluetooth® Low Energy (LE) modules.

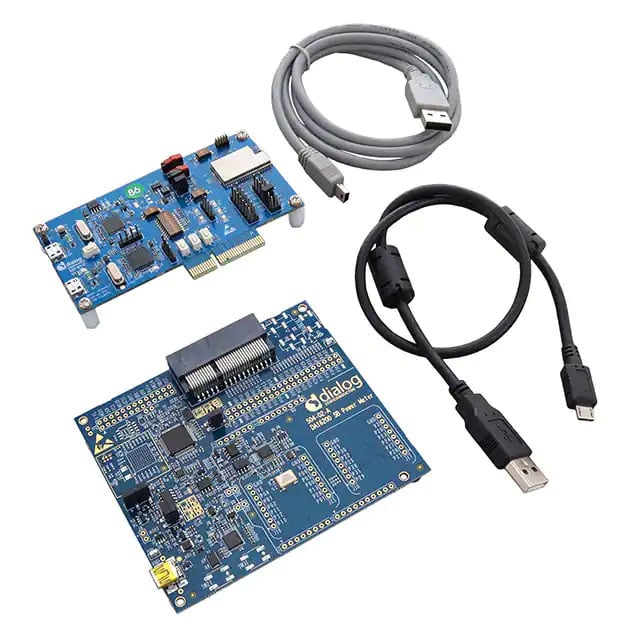

The DA16600 Development Kit assists in adding both low-power Wi-Fi and Bluetooth LE functionality to applications. The DA16600MOD-DEVKT contains a host board for the DA16600 Wi-Fi module, and a USB port enables easy connection to the PC. The DA16600MOD-DEVKT-P Pro kit consists of the DA16600 host board and a power meter board for detailed power consumption measurements.
Features
- VirtualZero™ DA16200 System on Chip (SoC)
- 802.11n 1x1 low-power 2.4GHz
- Up to 72Mbps, MCS0-7
- SmartBond TINY™ DA14531 SoC
- BT5.1 compliant Bluetooth LE
- Enables year-plus battery life
- Low-power consumption in sleep state
- Ultra-low power sensor wake-up
- Built-in, customizable, coexistence algorithms
- SoC runs a full OS and TCP/IP stack on module
- Provision Wi-Fi connections easily with Bluetooth LE
- Automatically find and configure new devices with smartphone app
- Comprehensive networking software stack:
- Secure boot
- Secure debug
- Secure asset storage
- Hardware accelerated
- TLS
- Digital certificates
- Elliptic curve
- Enables field-deployed device firmware updates
- UART, SPI, ADC, I2C, PWM, I2S, GPIOs, JTAG, and SWD
Applications
Videos & Training
Matter is single unified IP-based protocol to securely and robustly connect smart devices with each other, regardless of brand, and across smart home ecosystems.
News & Blog Posts
Blog Post Feb 13, 2023 |
Support
Support Communities
- DA16600MOD: Power consumption
I am using the DA16600MOD-DEVKT-P. Please provide a code example, software + board configurations with which I can validate the power consumption mentioned in the datasheet. Regards.
Sep 20, 2022 - DA14531 of DA16600: programming issue
Hi,I am facing this issue: Board: DA16600MOD-DEVKT-P, chip: DA14531 of DA16600Debugger: J-LINK EDU (SWD), firmware version: J-Link V11Programming tool: Dialog SmartBond Flash Programmer v1.0.8.3896Any suggestions?Regards.
Sep 26, 2022 - Programming DA16200MOD in custom board
Hello, i have to use the DA16200 MOD in the near future, and i have the development kit (DA16600MOD-DEVKT-P with DA16600 EVB V4.0 board). How can i program the module in a custom board? I know that i can program the devkit module with serial UART0, but ...
