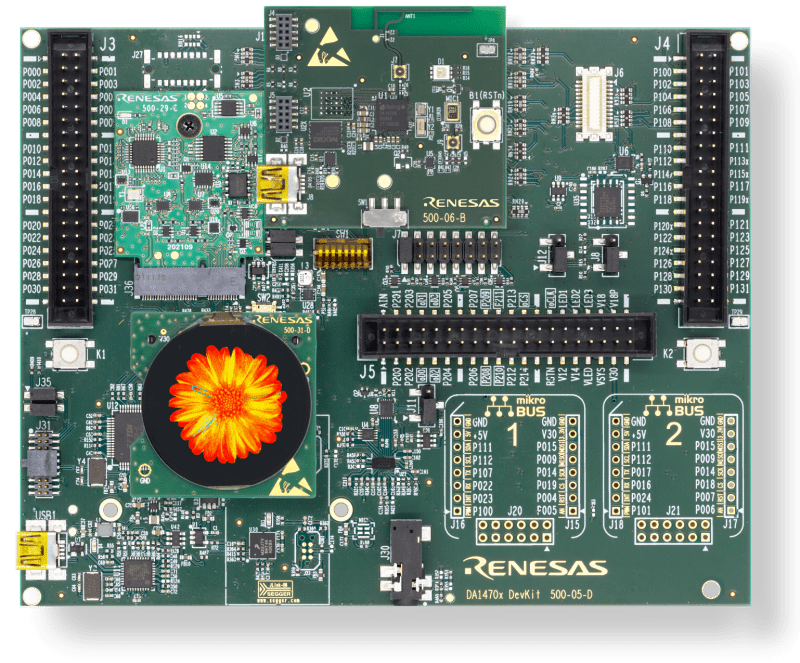

The DA1470x Development Kit Pro is ideal for software developers who want total control over their software development and want to keep an eye on the power consumption of their application. It contains a mother board, DA14706 daughterboard, current sensing board and a display board. It gives you access to all of the package's GPIOs. Additional daughterboards in the form of DA14706 and DA14708 can be purchased separately. These daughterboards are supersets of the remaining devices of the DA1470x family and can, respectively, be used as development kits for the DA14701 and DA14705.

The kits offer two mikroBUS™ header interfaces and PMOD interface enabling users to expand the functionality of the kits with hundreds of available click boards and shields. The RF connector on the daughterboard enables users to perform RF measurements while the kit's on-board Segger chip gives users complete debugging capability. The dedicated on-board power measurement module allows users, in combination with our SmartSnippets™ Toolbox, to profile and fine tune the power consumption of their application to get the most out of the DA1470x family of products. In addition, it also has a 1.19 inch 390x390 AMOLED QSPI display which will enable user to develop advanced UI in their frameworks using the graphics capabilities of the DA1470x platform.


  • Flexible battery options
  • QSPI-Flash memory for booting
  • Headers for I/O monitoring and expandability
  • Option to support PMOD boards
  • Option to support MikroBUS click boards
  • Provisions for automated test
  • On-board basic peripherals for demo and development

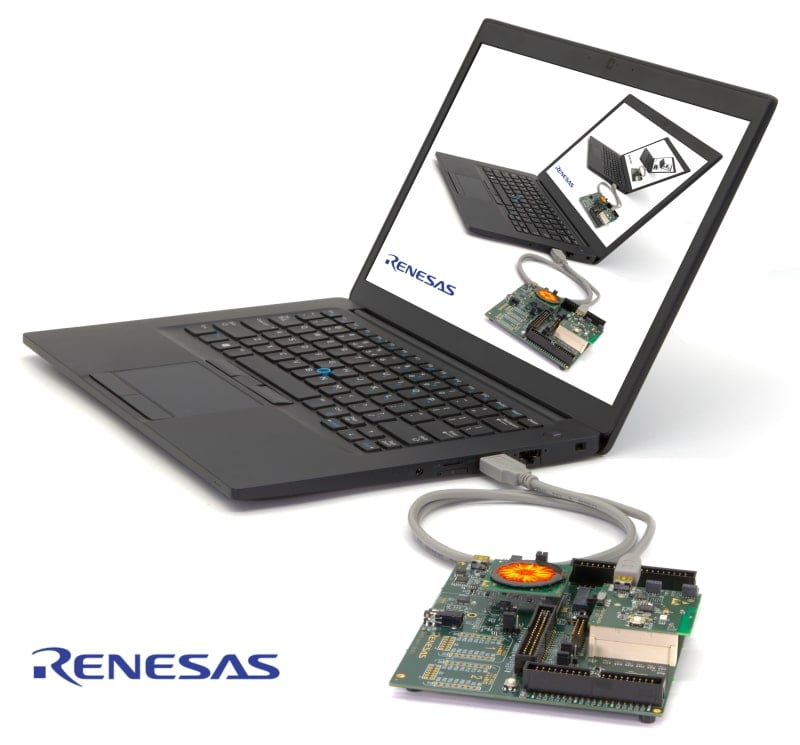

  • JTAG debugger and connectivity to PC
  • DA1470x silicon easily replaceable on a daughterboard core module
  • Power measurement module
  • 1.19 inch, 390x390 AMOLED display



  • Fitness trackers
  • Sports watches
  • Medical devices (e.g. glucose monitoring readers)
  • Smart home devices and appliances (e.g. thermostat, white goods, etc.)
  • Industrial automation and security systems (e.g. mobile POS, HMI terminals, etc.)
  • Smart consoles (e.g. e-bike, exercise equipment, gaming consoles, etc.)
  • Toys
