Radiation Hardened Low Side GaN FET Driver
Jump to Page Section:
Overview
Description

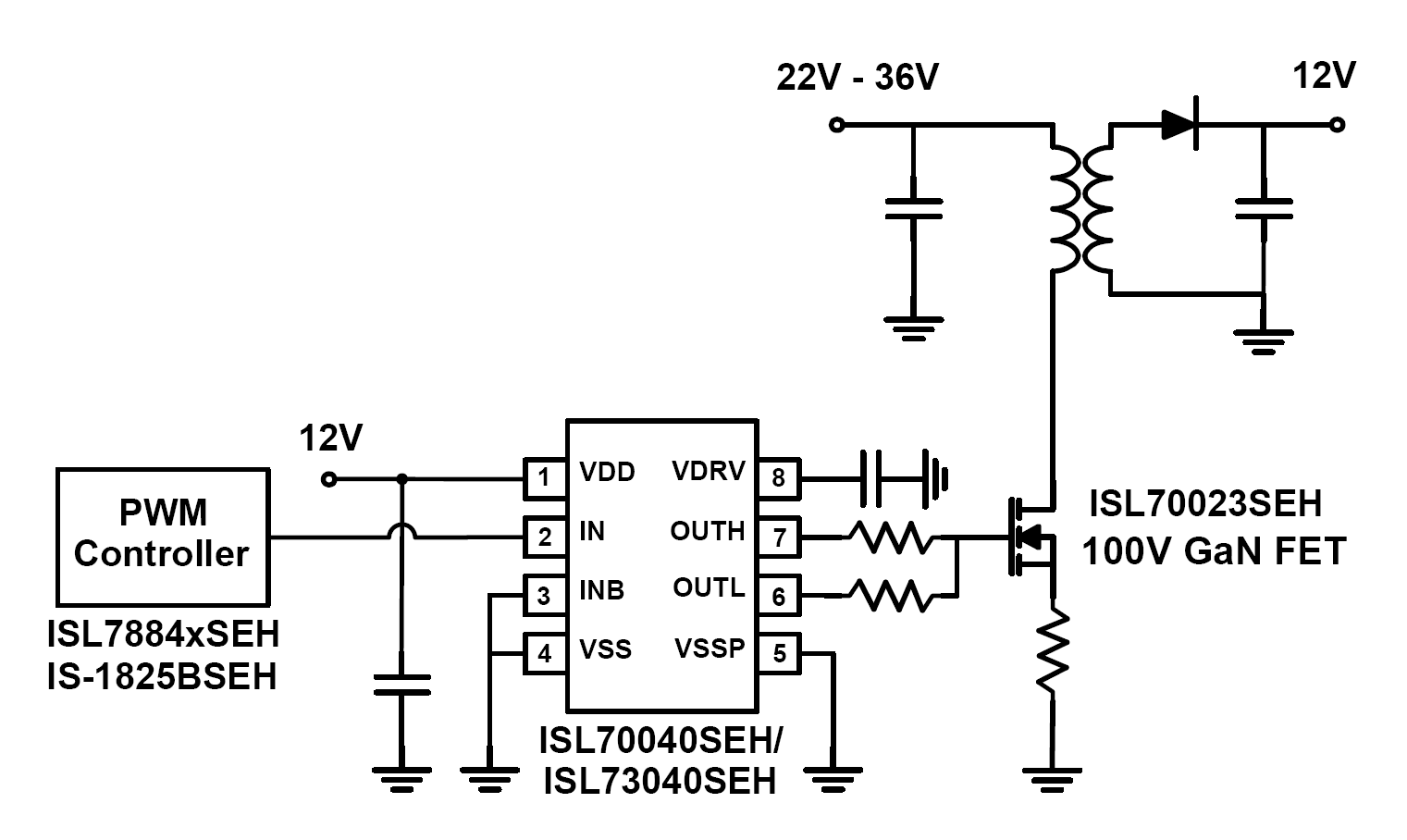

The ISL70040SEH and ISL73040SEH are low-side drivers designed to drive enhancement mode Gallium Nitride (GaN) FETs in isolated topologies and boost type configurations. The ISL70040SEH operates with a supply voltage from 4. 5V to 13. 2V and has both inverting (INB) and non-inverting (IN) inputs to satisfy requirements for inverting and non-inverting gate drives with a single device. The ISL70040SEH and ISL73040SEH have a 4. 5V gate drive voltage (VDRV) generated using an internal regulator which prevents the gate voltage from exceeding the maximum gate-source rating of enhancement mode GaN FETs. The gate drive voltage also features an undervoltage lockout (UVLO) protection that ignores the inputs (IN/INB) and keeps OUTL turned on to ensure the GaN FET is in an OFF state whenever VDRV is below the UVLO threshold. The ISL70040SEH and ISL73040SEH inputs can withstand voltages up to 14. 7V regardless of the VDD voltage. This allows the ISL70040SEH and ISL73040SEH inputs to be connected directly to most PWM controllers. The ISL70040SEH and ISL73040SEH split outputs offer the flexibility to adjust the turn-on and turn-off speed independently by adding additional impedance to the turn-on/off paths. The ISL70040SEH and ISL73040SEH operate across the military temperature range from -55°C to +125°C and are offered in an 8 Ld hermetically sealed ceramic Surface Mount Device (SMD) package or die form.
Features
- Wide operating voltage range of 4.5V to 13.2V
- Up to 14.7V logic inputs (regardless of VDD level)
- Inverting and non-inverting inputs
- Optimized to drive enhancement mode GaN FETs
- Internal 4.5V regulated gate drive voltage
- Independent outputs for adjustable turn-on/turn-off speeds
- Full military temperature range operation
- TA = -55°C to +125°C
- TJ = -55°C to +150°C
- Radiation hardness assurance (wafer-by-wafer)
- High Dose Rate (HDR) (50-300rad(Si)/s): 100krad(Si) (ISL70040SEH only)
- Low Dose Rate (LDR) (0.01rad(Si)/s): 75krad(Si)
- SEE hardness (refer to the ISL70040SEH, ISL73040SEH SEE Report for details)
- No SEB/L LETTH, VDD = 14.7V: 86MeV•cm2/mg
- No SET, LETTH, VDD = 13.2V: 86MeV•cm2/mg
- Electrically screened to DLA SMD 5962-17233
Documentation
| Document title | Document type
|
Date Date | |
|---|---|---|---|
| PDF 1.08 MB | Datasheet | ||
| PDF 414 KB | Application Note | ||
| PDF 338 KB | Application Note | ||
| PDF 467 KB | Brochure | ||
| PDF 4.85 MB | Brochure | ||
| Other | |||
| PDF 356 KB | Product Advisory | ||
| PDF 846 KB | Product Change Notice | ||
| PDF 316 KB | Report | ||
| PDF 426 KB | Report | ||
| PDF 251 KB | Report | ||
| PDF 470 KB 日本語 | White Paper | ||
| PDF 548 KB | White Paper | ||
| PDF 533 KB | White Paper | ||
14 items
|
|||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| iSim:PE Offline Simulation Tool iSim Personal Edition (iSim:PE) speeds the design cycle and reduces risk early in any project, identifying parts that can be used in current as well as next-generation designs.
|
Simulator | Renesas |
1 item
|
||
Boards & Kits
Boards & Kits
Evaluation Board for the ISL70040SEH and ISL70023SEH (100V GaN FET)
The ISL70040SEHEV2Z evaluation platform evaluates the ISL70040SEH alongside the ISL70023SEH. The same board can be used to evaluate the ISL73040SEH alongside the
Featured Documents:
Evaluation Board for the ISL70040SEH and ISL70024SEH (200V GaN FET)
The ISL70040SEHEV3Z evaluation platform is designed to evaluate the ISL70040SEH radiation hardened low side GaN FET driver alongside the ISL70023SEH and ISL70024SEH...
Featured Documents:
Evaluation Board for ISL73040SEH and ISL73024SEH in a 200V Half-bridge Configuration
The ISL73040SEHEV4Z evaluation board demonstrates how to build a half bridge power stage with the ISL73040SEH low-side GaN driver and the ISL73024SEH 200V GaN FET. The...
Featured Documents:
Evaluation Board for the ISL70040SEH and ISL70020SEH (40V GaN FET)
The ISL70040SEHEV5Z evaluation platform is designed to evaluate the ISL70040SEH alongside the ISL70020SEH. The ISL70040SEH is designed to drive enhancement mode Gallium...
Featured Documents:
Power Management Reference Design for AMD Versal XQRVC1902
The ISLVERSALDEMO2Z demo board provides the power management for the AMD Xilinx Space Grade Versal ACAP AI Core VC1902 using Renesas' Radiation Hardened Power...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
| CLCC | Tray | 1 | |||
| CLCC | Tray | 25 | 5962R1723301VXC | ||
| 100 | 5962R1723301V9A | ||||
| Die Waffle Pack | 5 |
