Automotive Sensor Signal Conditioner for Ceramic Sensor Applications
Jump to Page Section:
Overview
Description

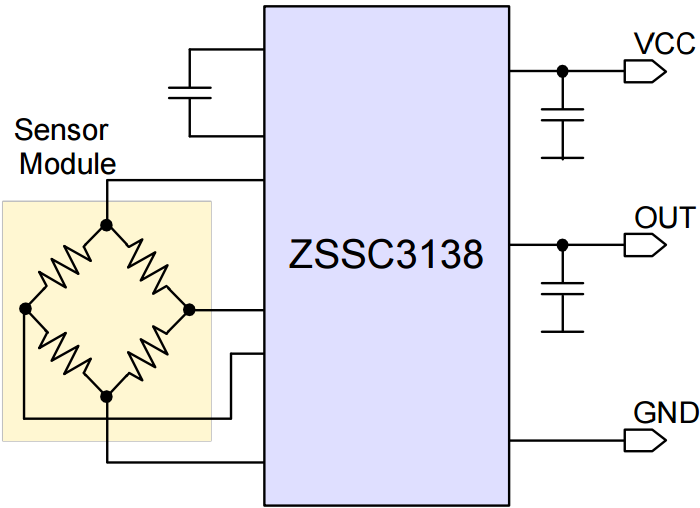

The ZSSC3138 is a member of the ZSSC313x product family of CMOS integrated circuits designed for automotive and industrial sensor applications. All family members are well suited for highly accurate amplification and sensor-specific correction of resistive bridge sensor signals. An internal 16-bit RISC microcontroller running a correction algorithm compensates sensor offset, sensitivity, temperature drift, and non-linearity of the connected sensor element. The required calibration coefficients are stored by the single-pass calibration procedure in an on-chip EEPROM. The ZSSC3138 offers a maximum analog gain of 420 and two offset compensation features. These fit the requirements of ceramic thick-film-based sensor elements as well as strain gauges perfectly. The high amplification in combination with the offset compensation offers the capability to set up ceramic-thick-film-based sensor applications without laser trimming, which leads to better long-term stability.
Features
- Adjustable to nearly all resistive bridge sensor types, analog gain of 420, overall gain up to 1680
- Enhanced sample rate up to 7.8 kHz
- High ADC resolution 15/16 bit
- Safety functionality sensor connection
- Internal temperature compensation
- Digital compensation of sensor offset, sensitivity, temperature drift and non-linearity
- Output options: ratiometric analog voltage output (5% to 95% maximum, 12.4 bit resolution) or ZACwire™ (digital one-wire-interface)
- Sensor biasing by voltage
- High voltage protection up to 33V
- Supply current: max. 5.5mA
- Reverse polarity and short circuit protection
- Operation temperature range as wide as -40°C to +150°C
- Traceability by user-defined EEPROM entries
Documentation
| Document title | Document type
|
Date Date | |
|---|---|---|---|
| PDF 343 KB | Datasheet | ||
| PDF 427 KB | Application Note | ||
| PDF 570 KB | Application Note | ||
| PDF 1.14 MB | Application Note | ||
| PDF 273 KB | Application Note | ||
| PDF 148 KB | Datasheet - Short-form | ||
| 7Z 1.21 MB | Guide | ||
| PDF 2.28 MB | Manual - Development Tools | ||
| PDF 1.13 MB | Manual - Hardware | ||
| PDF 440 KB | Technical Brief | ||
10 items
|
|||
Design & Development
Software & Tools
Boards & Kits
Boards & Kits
Evaluation Kit for ZSSC313x
The ZSSC313xKIT Evaluation Kit provides the hardware needed for configuration, calibration and evaluation of the ZSSC3131, ZSSC3135, ZSSC3136 and ZSSC3138 Sensor Signal...
Featured Documents:
Mass Calibration System for ZSSC313x
The ZSSC313x Mass Calibration System provides the hardware needed for simultaneous configuration, calibration and evaluation of multiple ZSSC313x Sensor Signal...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
Pkg. Type |
Lead Count (#) |
Temp. Range |
Carrier Type |
Buy / Sample |
|
|---|---|---|---|---|---|
| Part Number | |||||
| WAFER | 0 | -40 to 125°C | Wafer | Get Samples, | |
| WAFER | 0 | -40 to 125°C | Wafer | Get Samples, | |
| SSOP | 14 | -40 to 125°C | Reel | Get Samples, | |
| SSOP | 14 | -40 to 125°C | Tube | Get Samples, | |
| WAFER | 0 | -40 to 150°C | Wafer | Get Samples, | |
| WAFER | 0 | -40 to 150°C | Wafer | Get Samples, | |
| SSOP | 14 | -40 to 150°C | Reel | Get Samples, | |
| SSOP | 14 | -40 to 150°C | Tube | Get Samples, |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
play_circle_filledVideos & Training
IDT Sensor Signal Conditioner (SSC) Evaluation Kit Overview
A brief introduction and overview of IDT's sensor signal conditioner evaluation kits. Evaluation kits generally consist of three parts: a communication interface board, a device board, and a sensor simulator board - all connected together. A sophisticated software GUI accompanies the kit, enabling an engineer to learn how to use the part rapidly, do quick prototyping, and practice calibrations.
Presented by David Grice, applications engineer at IDT. For more information about IDT's sensor signal conditioner products, visit https://www.idt.com/ssc
