Evaluation Kit for ZSC31050
The ZSC31050KIT Evaluation Kit provides the hardware needed for configuration, calibration and evaluation of the ZSC31050 Sensor Signal Conditioner (SSC) IC. The user's...
Advanced Differential Sensor Signal Conditioner with Multiple Output Options
Jump to Page Section:
Overview
Description

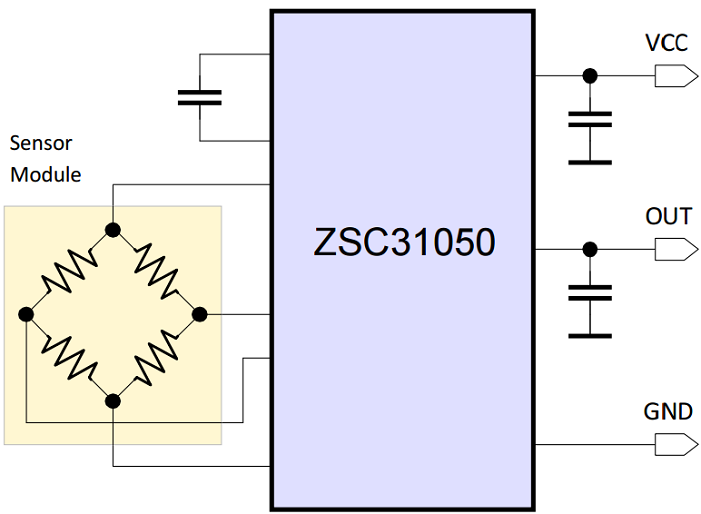

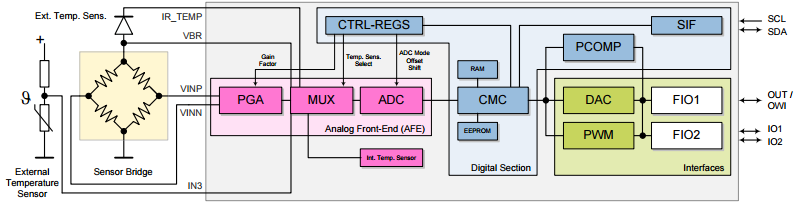

The ZSC31050 is a CMOS integrated circuit for amplification and sensor-specific correction of bridge sensor signals. The device provides digital compensation of sensor offset, sensitivity, temperature drift and non-linearity by a 16-bit RISC microcontroller running a correction algorithm. The ZSC31050 accommodates virtually any resistive bridge sensor (e.g., piezo-resistive and steel-membrane-based pressure sensors). In addition, the device can interface to a separate temperature sensor. The bi-directional digital interfaces (I2C, SPI, ZACwire™) can be used for a simple PC-controlled calibration procedure, encompassing writing and programming a set of calibration coefficients into an on-chip EEPROM. The ZSC31050 has been designed for industrial, medical and consumer applications and is specifically suited for most pressure sensors. It can also be used with force, torque, acceleration, angle, position and revolution sensors.
Features
- Digital compensation of sensor offset, sensitivity, temperature drift and non-linearity
- Accommodates nearly all bridge sensors via PGA and programmable ADC
- Capable of conditioning bridge sensor signals ranging from 1 to 275mV/V
- Sensor connections check and aging detection
- Temperature compensation via internal diode, external diode or bridge sensor element
- Output options: voltage (0 to 5V), current (4 to 20mA), PWM, I2C , SPI, ZACwire™ (one-wire interface), alarm
- Adjustable ADC resolution (up to 15-bit) versus sampling rate (up to 3.9kHz)
- Selectable bridge excitation: ratiometric voltage, constant voltage or constant current
- Input channel for separate temperature sensor
- Operation temperature range, depending on product version, up to -40°C to +150°C
- AEC-Q100 qualification (temperature grade 0)
- Supply voltage: +2.7V to +5.5V, with external JFET: 5 to 40 V
- Available in SSOP16 or as die
Applications
Documentation
|
|
Date | |
|---|---|---|
| PDF 730 KB | Datasheet | |
| PDF 2.92 MB 日本語 | Overview | |
| 7Z 1.21 MB | Guide | |
| PDF 1.30 MB | Manual - Hardware | |
| PDF 216 KB | Application Note | |
| PDF 628 KB | Application Note | |
| PDF 421 KB | Datasheet - Short-form | |
| PDF 400 KB | Application Note | |
| PDF 369 KB | Technical Brief | |
| PDF 172 KB | Application Note | |
| PDF 427 KB | Application Note | |
| PDF 1.26 MB | Application Note | |
| PDF 1.32 MB | Manual - Development Tools | |
| PDF 217 KB | Technical Brief | |
| PDF 986 KB | Application Note | |
| PDF 682 KB | Application Note | |
| PDF 128 KB | Application Note | |
| XLS 327 KB | Other | |
| XLSX 13 KB | Other | |
| XLS 46 KB | Other | |
| XLS 230 KB | Other | |
21 items
|
||
Design & Development
Software & Tools
Boards & Kits
Boards & Kits
Mass Calibration System for ZSC31050
The ZSC31050 Mass Calibration System provides the hardware needed for simultaneous configuration, calibration and evaluation of multiple ZSC31050 Sensor Signal...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
Pkg. Type |
Lead Count (#) |
Temp. Range |
Carrier Type |
Buy / Sample |
|
|---|---|---|---|---|---|
| Part Number | |||||
| WAFER | 0 | -40 to 125°C | Wafer | ||
| WAFER | 0 | -40 to 125°C | Wafer | ||
| SSOP | 16 | -40 to 125°C | Reel | ||
| SSOP | 16 | -40 to 125°C | Tube | Get Samples, | |
| WAFER | 0 | -40 to 150°C | Wafer | ||
| WAFER | 0 | -40 to 150°C | Wafer | ||
| SSOP | 16 | -40 to 150°C | Reel | Get Samples, | |
| SSOP | 16 | -40 to 150°C | Tube | Get Samples, | |
| WAFER | 0 | -25 to 85°C | Wafer | ||
| WAFER | 0 | -25 to 85°C | Wafer | ||
| SSOP | 16 | -25 to 85°C | Reel | ||
| SSOP | 16 | -25 to 85°C | Tube | Get Samples, |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Support
Renesas Samples
Select an orderable part number:
| Orderable Part ID | Sample |
|---|---|
| ZSC31050FAG1-T | Availability |
| ZSC31050FEG1-R | Availability |
| ZSC31050FEG1-T | Availability |
| ZSC31050FIG1-T | Availability |
play_circle_filledVideos & Training
IDT Sensor Signal Conditioner (SSC) Evaluation Kit Overview
A brief introduction and overview of IDT's sensor signal conditioner evaluation kits. Evaluation kits generally consist of three parts: a communication interface board, a device board, and a sensor simulator board - all connected together. A sophisticated software GUI accompanies the kit, enabling an engineer to learn how to use the part rapidly, do quick prototyping, and practice calibrations.
Presented by David Grice, applications engineer at IDT. For more information about IDT's sensor signal conditioner products, visit https://www.idt.com/ssc
