GreenPAK DIP Development Board
Jump to Page Section:
Overview
Description

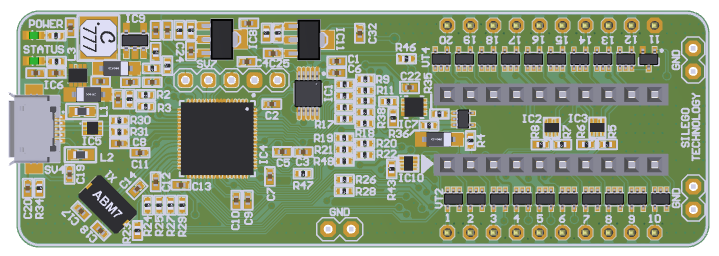

The SLG4DVKDIP is perfect for breadboarding and fast prototyping. Working in tandem with the GreenPAK Designer software, GreenPAK DIP Development Board allows designers to:
- Program custom samples in minutes
- Test GreenPAK projects in-circuit
Kit Contents
- DIP Development Board
- USB cable
- Quick Start Guide
Please note DIP Proto Boards should be ordered separately
Features
- USB interface
- MacOS, Windows and Linux compatible
- Programming and Emulation
- Gated expansion header for connection to external test equipment
