Integrated 4A Switch PWM Step-Up Regulator
Jump to Page Section:
Overview
Description
The ISL97656 is a high frequency, high efficiency step-up voltage regulator operated at constant frequency PWM mode. With an internal 4. 0A, 120mΩ MOSFET, it can deliver up to 2A output current at over 90% efficiency. The selectable 640kHz and 1. 2MHz allows smaller inductors and faster transient response. An external compensation pin gives the user greater flexibility in setting frequency compensation allowing the use of low ESR Ceramic output capacitors. When shut down, it draws

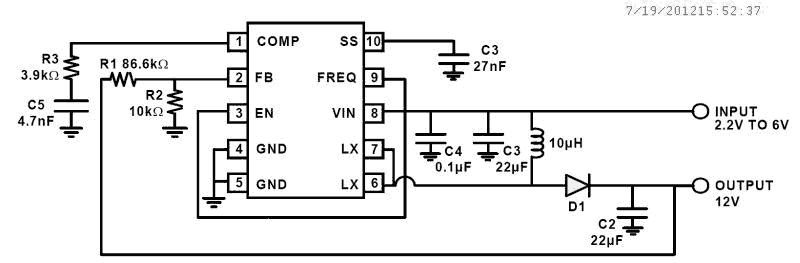

Features
- >90% Efficiency
- 4.0A, 120mΩ Power MOSFET
- 2.3V to 6.0V Input
- 1.1*VIN to 25V Output
- 640kHz/1.2MHz Switching Frequency Selection
- Adjustable Soft-Start
- Internal Thermal Protection
- 0.8mm Max Height 10 Ld TDFN Package
- Pb-Free (RoHS Compliant)
- Halogen Free
Applications
Applications
- TFT-LCD Displays
- DSL Modems
- PCMCIA Cards
- Digital Cameras
- GSM/CDMA Phones
- Portable Equipment
- Handheld Devices
