RX630

Renesas MCU Guide

Download the mobile app

Overview

With flash memory capacities from small to large and package pin counts from low to high, the RX630 Group can satisfy the demands of a variety of embedded devices. All the products of the RX630 Group are equipped with E2 data flash capable of 100, 000 rewrites and enhanced peripheral functions with increased numbers of channels including timers, USB 2.0 function module, serial communication interface, I2C bus interface, CAN, 10-bit and 12-bit A/D converter, and 10-bit D/A converter. In particular, built-in features such as RTC with timestamp, temperature sensor, independent WDT, and POR/LVD enable the number of external parts to be reduced. We are also planning on releasing small packages such as LGA and BGA.

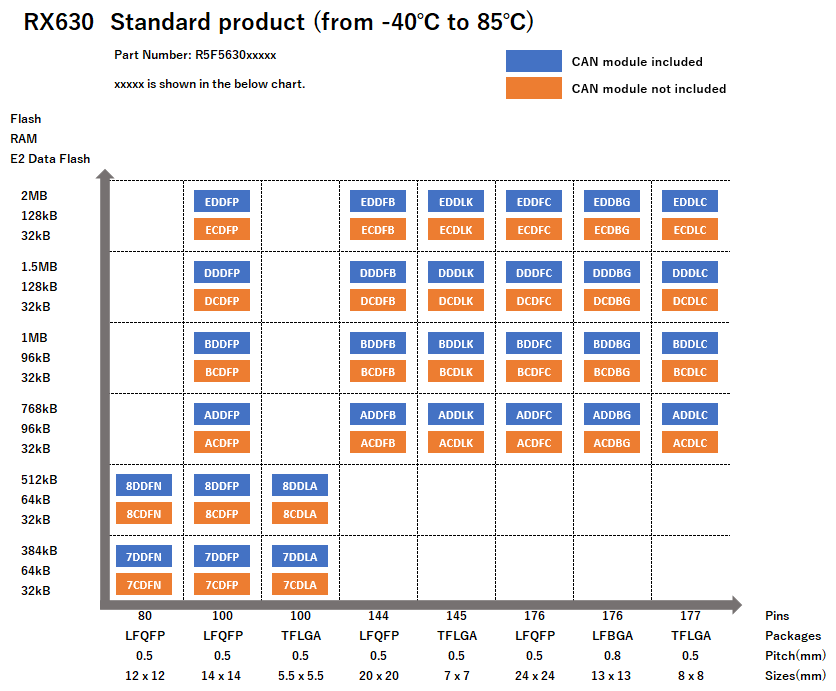

Pin-Memory Diagram of RX630 stanndard products

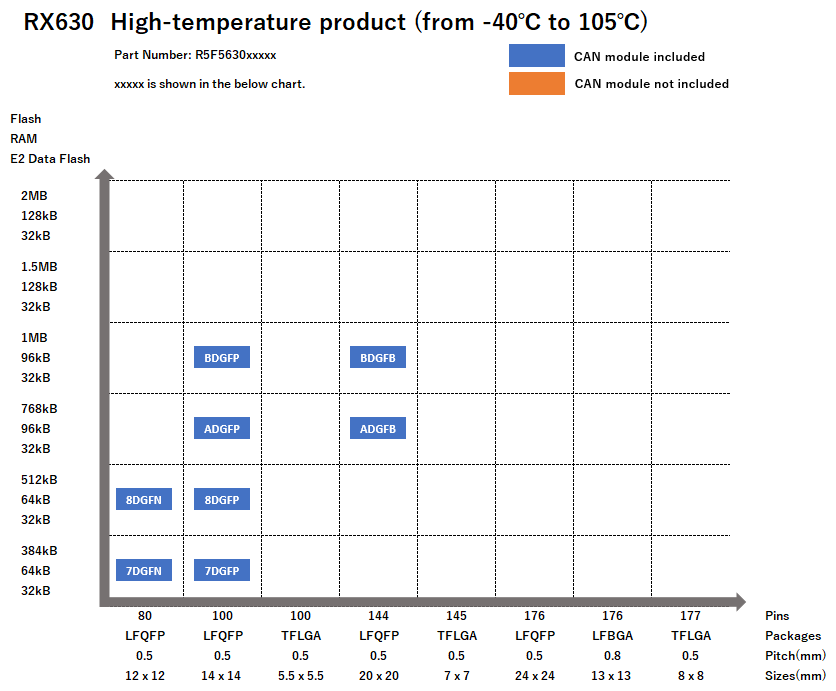

Pin-Memory Diagram of RX630 High-temperature products

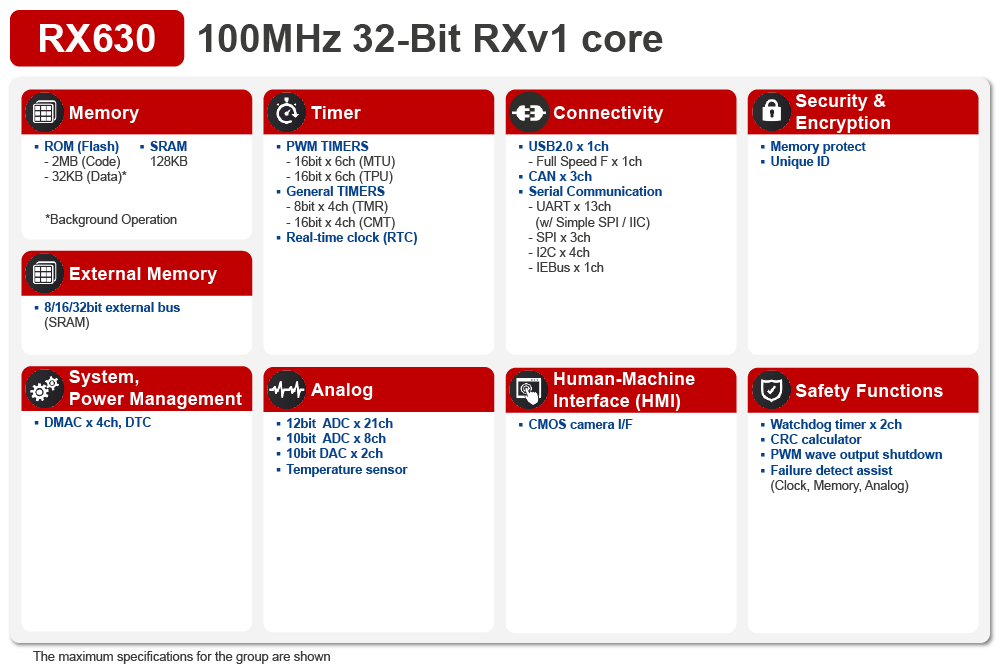

CPU: RX core, Max. 100MHz
Voltage: 2.7V to 3.6V
Package: 176-pin LFBGA, 80 to 176-pin LFQFP, 100 to 177-pin TFLGA
Memory: SRAM Max. 128KB, Program Flash Max. 2MB
PWM: PWM Output x 48, 3-phase PWM Output Function
Analog function: 10-bit A/D Converter (ch) x 8, 12-bit A/D Converter (ch) x 21, 10-bit D/A Converter (ch) x 2
On-chip Oscillator Freq. (MHz): 50 MHz,Low Speed Oscillator 125 kHz
Others: PLL, RTC, Power-On Reset, Low Voltage Detection
