RX62G

Renesas MCU Guide

Download the mobile app

Overview

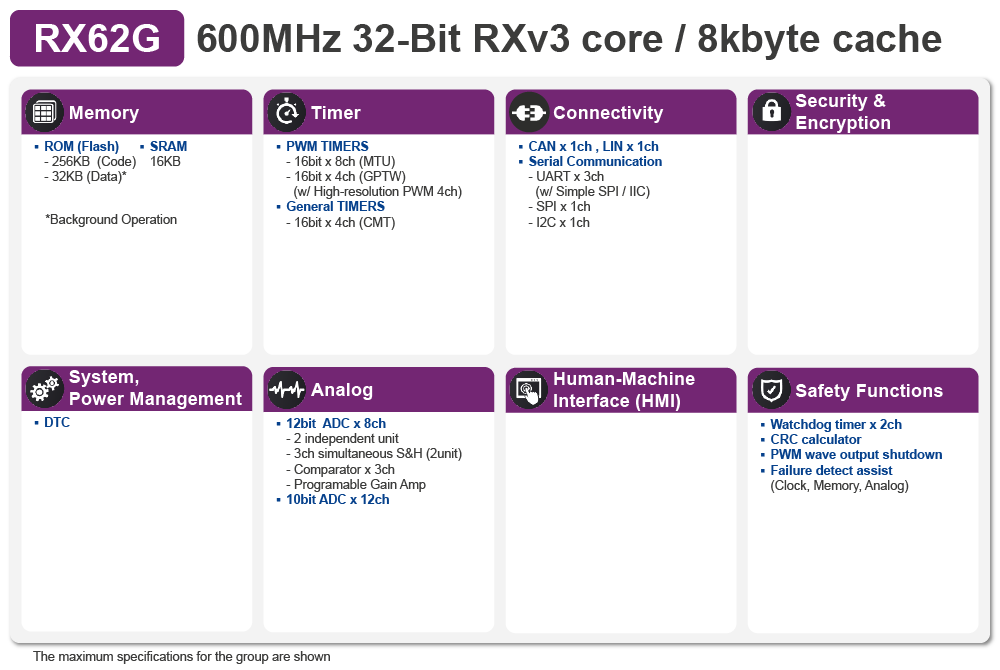

The RX62G group has PWM output function which achieves high resolution (max. 312.5 psec). The combination of high resolution PWM output function and high CPU performance of RX core achieved higher accuracy of inverter/converter control.

Pin-Memory Diagram of RX62G stanndard products

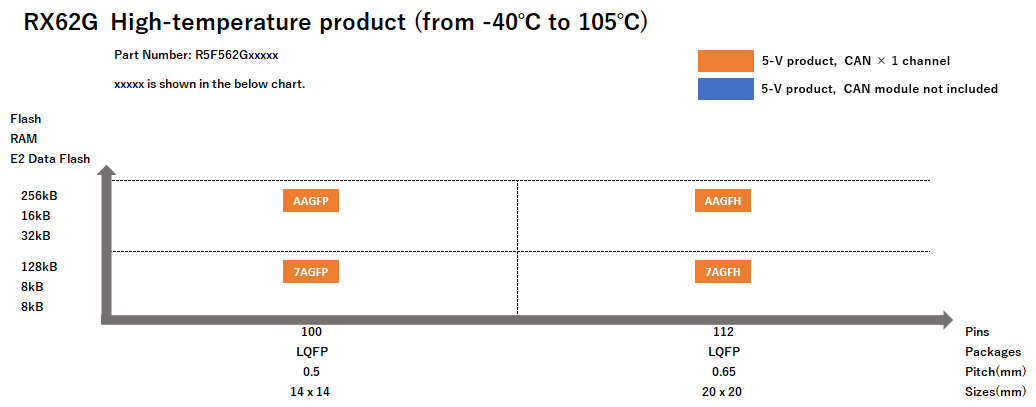

Pin-Memory Diagram of RX62G High-temperature products

Applications

Industrial
Office Automation
Home appliances
