Capacitive Touch Evaluation System for RX671
Jump to Page Section:
Overview
Description
The RX671 capacitive touch evaluation system makes it easy for users to evaluate touch solutions offered by Renesas. You can start evaluating immediately out of the box using the board and software included in each kit.

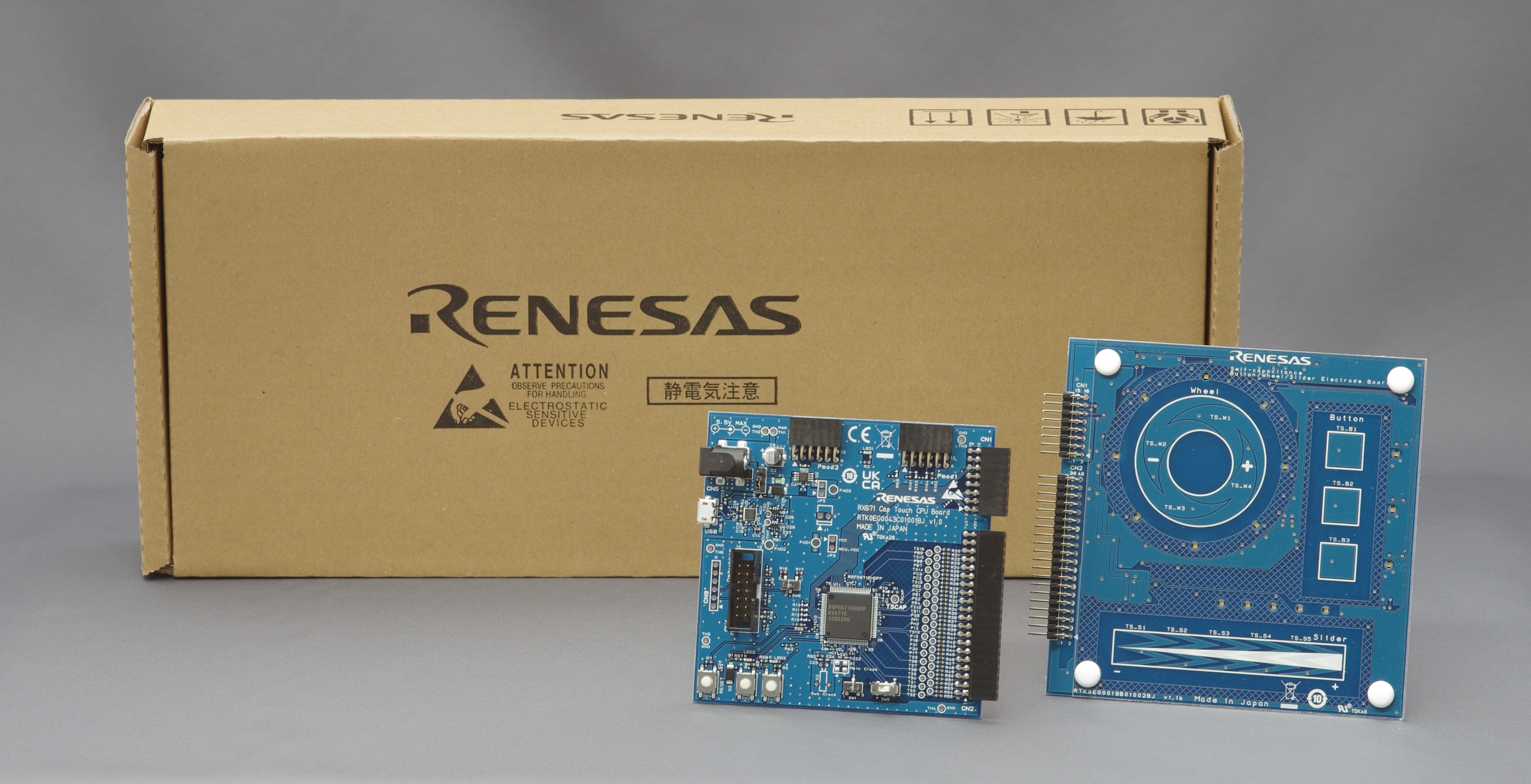

Configuration
- RX671 CPU board
- Touch application board
- Self-capacitance evaluation board built-in basics for capacitive touch: switches, slider and wheel
Support
The following items are available for download.
Features
- Use to evaluate various touch functions (button, slider, wheel)
- Simple prototyping
- Use as a reference when designing boards or software
- Easily adjust the sensitivity by using QE for Capacitive Touch
- Easy operation with intuitive interface
- Easy to develop touch interfaces even for beginners with GUI
- Automatically output adjusted source code
- Equipped with RX671 MCU (R5F5671EHDFP)
- Capacitive touch sensor (CTSUa) pin 17 channels available
Documentation
Design & Development
Software & Tools
Software & Tools
| C/C++ Compiler Package for RX Family [CC-RX]C/C++ Compiler Package for RX Family [IDE: CS+, e² studio, High-performance Embedded Workshop] | Compiler/Assembler | Renesas |
| E2 emulator Lite [RTE0T0002LKCE00000R]On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX] | Emulator | Renesas |
| E2 emulator [RTE0T00020KCE00000R]On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX] | Emulator | Renesas |
| QE for Capacitive Touch: Development Assistance Tool for Capacitive Touch SensorsIn developing embedded system using the capacitive touch sensor of RA family and RX family MCUs, you can easily setup initial configurations of the touch interface as well as process the tuning of sensors, and reduce development time. [Plugin for Renesas IDE "e2 studio"]
Downloads:
Using QE and FIT to Develop Capacitive Touch Applications Rev.2.00Capacitive Sensor Microcontrollers CTSU Capacitive Touch Electrode Design Guide Rev.2.00RL78 Family Using the standalone version of QE to Develop Capacitive Touch Applications Rev.1.00[Upgrade to Revision] Solution Toolkit, Development Assistance Tool for Capacitive Touch Sensors, QE for Capacitive Touch V3.2.0
|
Solution Toolkit | Renesas |
Sample Code
Related Boards & Kits
Boards & Kits
Renesas Starter Kit+ for RX671
The Renesas Starter Kit+ for RX671 is the perfect starter kit for developers who are new to the RX671 (Code Flash 2MB, Pin Count 144-pin). The kit includes an LCD...
Touchless Button Reference Design
The touchless button reference design can detect the approach of fingers and hands without physical contact using Renesas’ capacitive touch solution. The electrode...
Capacitive Sensor Application Reference Design
Water Level Measurement Reference Design
This reference design measures the water level with a one-channel self-capacitance electrode and a one-channel shield...
