12 V Motor Control Evaluation System for RL78/F24
Jump to Page Section:
Overview
Description
This kit is for motor control evaluation with RL78/F24 (48-pin) product.
This kit includes a permanent magnetic synchronous motor (TG-55N-KA 12V; Tsukasa Electric Co., Ltd), allowing users to easily start evaluating the motor after purchase.
Features
- Supports permanent magnetic synchronous motor (brushless DC motor)
- Three-shunt/single-shunt current detection function
- Provide sample programs for sensorless vector control (three-shunt/single-shunt) and sensorless trapezoidal control.
- Overcurrent protection function
- Can be connected to on-chip debugger (E2 or E2 Lite emulator) for software debugging.

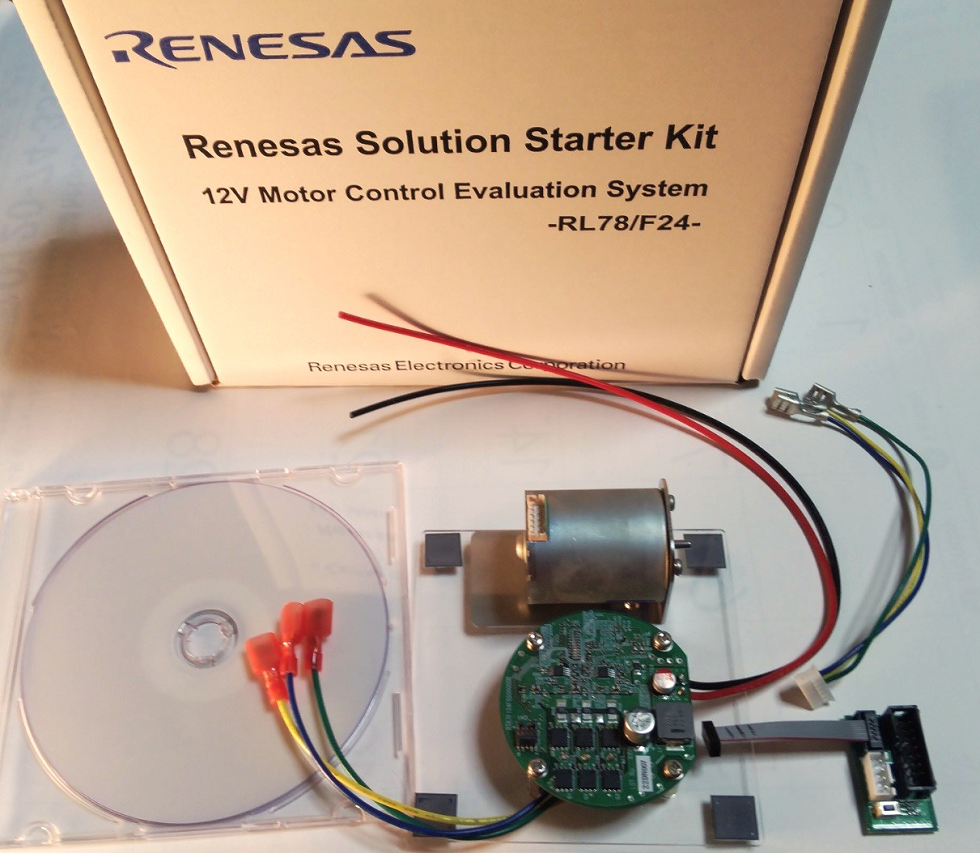

- Included items
- 12V inverter board
- Permanent magnetic synchronous motor (TG-55N-KA 12V)
- OCD connection conversion board
- Cables (motor cable, OCD conversion board cable)
- Various materials (schematic, parts list, PWB pattern diagram, evaluation data)
