An inverter is used to convert DC power to the AC power used in an electric vehicle motor. The Renesas xEV inverter solution maximizes the HEV/EV motor performance by motor parameter calibration tool and practical inverter hardware designs using a combination of microcontrollers, power management ICs, gate driver ICs, insulated gate bipolar transistors (IGBTs), and fast recovery diodes (FRD).

Documents

User's Manual (NDA Necessary)

Ordering Information

Contact Sales

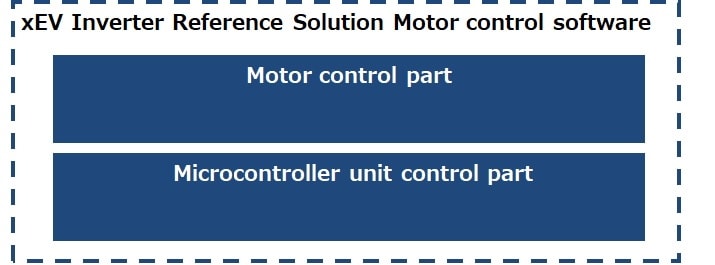

xEV Inverter Reference Solution Motor Control Software

System Specifications

Items Spec (1 motor)
Rated capacity Maximum 410V x 500A =205kVA (10sec)
Output power 40kW (continuous), 100kW (10sec)
Output current 200ARMS (continuous), 500ARMS (10sec)
Input voltage 270-410V @100kW
Volume 3.9L
Carrier frequency 4-12kHz@single sampling
4-6kHz@double sampling
Cooling Water Cooling (50% LLC mixture)
Rotation speed 10500rpm (Depends on Dyno)
External IF CAN-FD (3ch), SCI (1ch), JTAG
Control software Torque control, Speed control, IGBT temp error compensation

Features

  • Practical inverter specification for xEV 100kW class motors
  • Jumpstart evaluation with reference solution kit, including inverter reference designs, software, model base designs, and calibration tools
  • Provide early discovery and countermeasures for customers' issues, through Renesas' motor bench, dedicated engineering support
  • 3.9L compact volume through highly integrated products and temperature management
  • Superior power efficiency, with 99% maximum inverter efficiency
  • Function is already proven in real car demos
  • High accuracy sensor error correction features
  • Provide source code not only to control microcontroller but also to control the motor by torque command and speed command values
