32-bit Microcontrollers with 48MHz Arm® Cortex®-M23 and Integration of 24-bit Sigma-Delta ADC
Jump to Page Section:
Overview
Description
The RA2A1 Group of microcontrollers (MCUs) uses a high-performance Arm® Cortex®-M23 core and offers highly integrated, high-accuracy analog capabilities. This group of ICs offers a complete MCU with analog solution for signal conditioning and measurement. The RA2A1 Group supports a wide operating voltage range of 1.6V to 5.5V. It includes a 16-bit SAR ADC, 24-bit Sigma-Delta ADC, comparators, operational amplifiers, and DACs. The RA2A1 MCU targets cost sensitive and low power industrial sensor applications where high resolution analog will become a cost benefit.

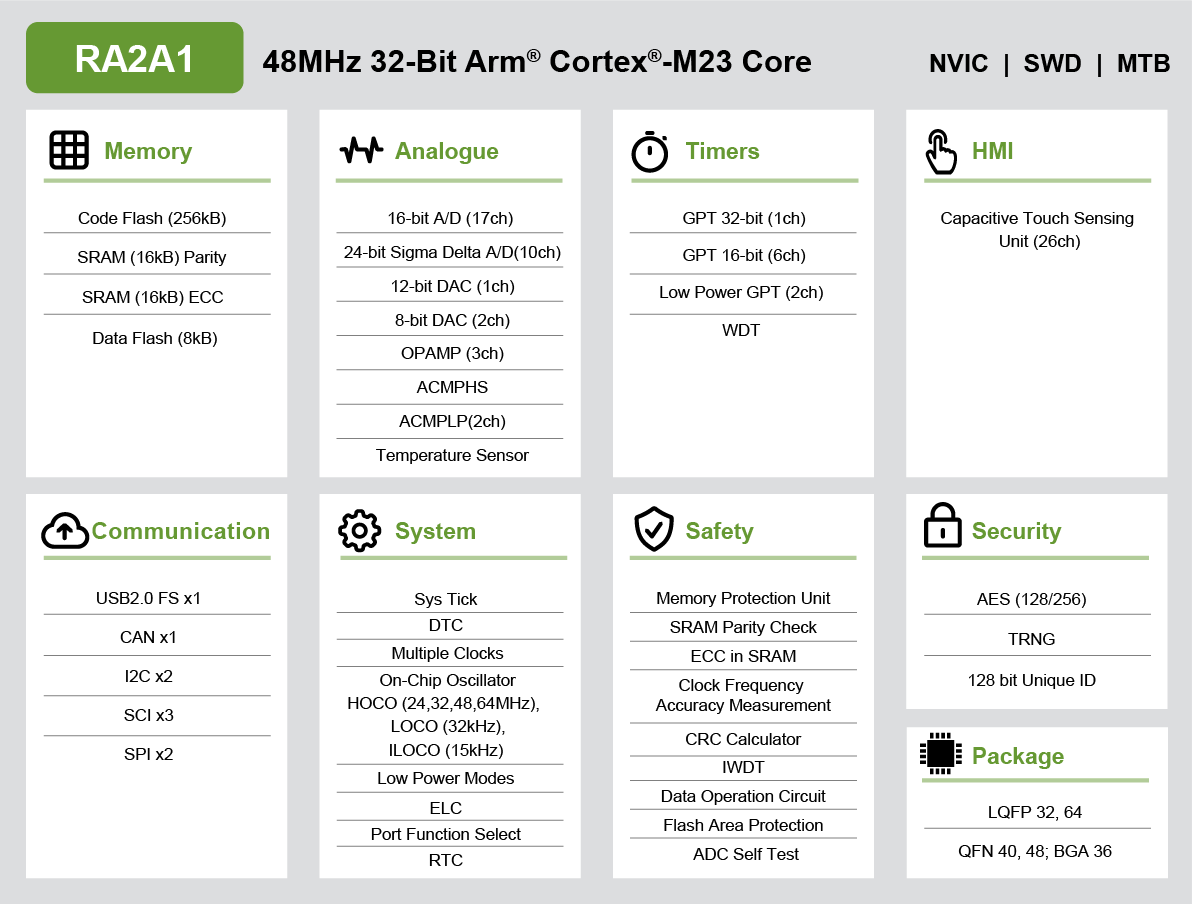

Features
- 48MHz Arm® Cortex®-M23
- 256kB Flash memory and 32kB SRAM
- 8kB Data Flash to store data as in EEPROM
- Scalable from 32-pin to 64-pin packages
- Capacitive touch sensing unit
- 16-bit SAR A/D, 24-bit SD A/D
- 12-bit D/A, 8-bit D/A
- OPAMP (3ch), ACMP-HS/LP
- USB 2.0 Full Speed
- CAN 2.0
- SCI (UART, Simple SPI, Simple I2C)
Applications
Applications
- Industrial automation (photoelectric sensor, fiber sensor, temperature sensor)
- Process automation (pressure sensor, flow control meter, single phase meter)
- Building automation/home appliance (smoke detector)
- Healthcare (pulse oximeters, body composition measurement)
- General purpose
Documentation
| Document title | Document type
|
Date Date | |
|---|---|---|---|
| PDF 1.13 MB 日本語 | Datasheet | ||
| PDF 15.61 MB 日本語 | Manual - Hardware | ||
| PDF 1.94 MB 日本語 | Application Note | ||
| PDF 3.64 MB 日本語 | Application Note | ||
| PDF 188 KB | Application Note | ||
| PDF 172 KB | Application Note | ||
| PDF 1.58 MB 日本語 | Application Note | ||
| PDF 61 KB | Application Note | ||
| PDF 1.21 MB | Application Note | ||
| PDF 2.33 MB 日本語 | Application Note | ||
| PDF 2.61 MB | Application Note | ||
| PDF 1.10 MB 简体中文 | Application Note | ||
| PDF 658 KB | Application Note | ||
| PDF 8.01 MB 日本語 , 简体中文 | Application Note | ||
| PDF 1.74 MB | Application Note | ||
| PDF 2.02 MB | Application Note | ||
| PDF 2.23 MB 日本語 | Application Note | ||
| PDF 421 KB 日本語 | Application Note | ||
| PDF 670 KB | Application Note | ||
| PDF 4.37 MB 日本語 | Application Note | ||
| PDF 747 KB | Application Note | ||
| PDF 1.73 MB 日本語 | Application Note | ||
| PDF 727 KB | Application Note | ||
| PDF 1.78 MB | Application Note | ||
| PDF 645 KB | Application Note | ||
| PDF 89 KB | Application Note | ||
| PDF 297 KB 日本語 | Application Note | ||
| PDF 598 KB 日本語 | Application Note | ||
| PDF 309 KB 日本語 | Application Note | ||
| PDF 6.79 MB 日本語 | Brochure | ||
| PDF 19.79 MB 日本語 | Brochure | ||
| PDF 5.28 MB 日本語 , 简体中文 | Brochure | ||
| PDF 7.93 MB 日本語 , 简体中文 | Brochure | ||
| PDF 168 KB | Certificate | ||
| PDF 487 KB 日本語 | Flyer | ||
| PDF 303 KB 日本語 , 简体中文 | Flyer | ||
| PDF 417 KB 日本語 , 简体中文 | Flyer | ||
| PDF 618 KB 日本語 | Flyer | ||
| PDF 14.70 MB 日本語 | General Reliability Literature | ||
| PDF 652 KB | Guide | ||
| PDF 10.28 MB 日本語 , 简体中文 | Other | ||
| PPSX 38.29 MB | Presentation | ||
| PDF 171 KB 日本語 | Product Change Notice | ||
| PDF 4.86 MB 日本語 | Product Change Notice | ||
| PDF 3.74 MB 日本語 | Product Change Notice | ||
| PDF 1.46 MB 日本語 | Product Change Notice | ||
| PDF 422 KB | Product Reliability Report | ||
| PDF 324 KB 日本語 | Release Note | ||
| ZIP 39.18 MB 日本語 | Schematic | ||
| PDF 124 KB 日本語 | Technical Update | ||
| PDF 1.25 MB 日本語 | Technical Update | ||
| PDF 126 KB 日本語 | Technical Update | ||
| PDF 529 KB 日本語 | Technical Update | ||
| PDF 284 KB 日本語 | Technical Update | ||
| PDF 228 KB 日本語 | Technical Update | ||
| PDF 168 KB 日本語 | Technical Update | ||
| PDF 460 KB 日本語 | Technical Update | ||
| PDF 497 KB 日本語 | Technical Update | ||
| PDF 112 KB 日本語 | Technical Update | ||
| PDF 152 KB 日本語 | Technical Update | ||
| PDF 139 KB 日本語 | Technical Update | ||
| PDF 113 KB 日本語 | Technical Update | ||
| PDF 125 KB | Technical Update | ||
| PDF 86 KB | Technical Update | ||
| PDF 289 KB | White Paper | ||
| PDF 805 KB 日本語 | White Paper | ||
| PDF 178 KB 日本語 , 简体中文 | White Paper | ||
| PDF 169 KB 日本語 , 简体中文 | White Paper | ||
|
68 items
|
|||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| QE for Capacitive Touch: Development Assistance Tool for Capacitive Touch Sensors In developing embedded system using the capacitive touch sensor of MCUs, you can easily setup initial configurations of the touch interface as well as process the tuning of sensors, and reduce development time. [Plugin for Renesas IDE "e2 studio"] [Standalone Version] [Support MCU/MPU:RA, RL78, RX, Renesas Synergy™]
|
Solution Toolkit | Renesas |
| Flexible Software Package (FSP) FSP is an enhanced software package designed to provide easy-to-use, scalable, high-quality software for embedded system designs using Renesas RA Family of Arm Microcontrollers.
Note: FSP with e² studio Installer (Platform Installer) will install the e² studio tool, FSP packs, GCC toolchain and Segger J-Link drivers required to use this software. No additional installations are required.
|
Software Package | Renesas |
| E2 emulator [RTE0T00020KCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX]
|
Emulator | Renesas |
| E2 emulator Lite [RTE0T0002LKCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX]
|
Emulator | Renesas |
| PG-FP6 Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
|
Programmer (Unit/SW) | Renesas |
| Renesas Flash Programmer (Programming GUI) Flash memory programming software [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, V850, 78KR, 78K0]
|
Programmer (Unit/SW) | Renesas |
| RA Smart Configurator The Renesas RA Smart Configurator (RA SC) is a desktop application that helps you in configuring software systems (including a Board Support Package (BSP), drivers, RTOS, and middleware) for RA-Family MCUs when you are using a third-party IDE and toolchain.
|
Solution Toolkit | Renesas |
| QE for AFE: Development Assistance Tool for Analog Front End This development assistance tool supports the development of embedded systems to perform high-precision sensing for microcontrollers with built-in analog front-end (AFE). [Plugin for Renesas IDE "e2 studio"] [Standalone Version] [Support MCU/MPU:RA]
|
Solution Toolkit | Renesas |
| Sensor Software Modules for Renesas MCU Platforms Middleware (FIT module and FSP module) and sample software packages that enable control and data acquisition for Renesas sensor products.
|
Sensor | Renesas |
| e² studio - information for RA Family Eclipse-based Renesas integrated development environment (IDE).
[Support MCU/MPU: RA, RE, RX, RL78, RH850, Renesas Synergy, RZ]
|
IDE and Coding Tool | Renesas |
|
10 items
|
||
Sample Code
Sample Code
Filters
|
|||
|---|---|---|---|
| Title | Type | Date Date | |
|
[Software=RA Flexible Software Package|v4.3.0],[Toolchains=GNU Arm Embedded|10.3-2021.10]]
ZIP
5.03 MB
日本語
Application:
Consumer Electronics, Key Technology
Compiler:
GNU ARM Embedded
Function:
Application Example, HMI
IDE:
e2 studio
|
Sample Code | ||
|
[Software=RA FSP | v4.5.0],[Board=EK-RA2A1]
ZIP
5.21 MB
IDE:
e2 studio/GCC/AC6, IAR, Keil MDK
|
Sample Code | ||
|
[Toolchains=GCC Arm Embedded|10.3.1.20210824] [Software=RA FSP|v4.2.0] [Board=EK-RA2E1]
ZIP
12.86 MB
Compiler:
GNU Arm Embedded
IDE:
e2 studio
|
Sample Code | ||
|
This application project discusses the considerations for securing Data at Rest in an embedded system and provides guidelines on how to use the Security MPU hardware feature of the RA Family MCUs to implement a secure Data at Rest solution.
ZIP
3.45 MB
Compiler:
ARMCC
IDE:
e2 studio
|
Sample Code | ||
|
[Toolchains=GCC Arm Embedded|9.2.1.20191025] [Software=RA FSP|v1.1.0]
ZIP
8.83 MB
日本語
Compiler:
GNU Arm Embedded, IAR Compiler for Arm
Function:
Security
IDE:
e2 studio, IAR EWARM
|
Sample Code | ||
| ZIP 1.80 MB | Sample Code | ||
|
[Toolchains=GCC Arm Embedded|9.2.1.20191025] [Software=RA FSP|v1.0.0] [Board=EK-RA2A1 ]
ZIP
2.28 MB
Compiler:
GNU Arm Embedded
IDE:
e2 studio
|
Sample Code | ||
|
7 items
|
|||
Boards & Kits
Boards & Kits
Evaluation Kit for RA2A1 MCU Group
The EK-RA2A1 evaluation kit enables users to effortlessly evaluate the features of the RA2A1 MCU Group and develop embedded systems applications using Renesas' Flexible...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
PLP |
CPU |
Operating Freq (Max) (MHz) |
Program Memory (KB) |
RAM (KB) |
Data Flash (KB) |
Lead Count (#) |
Pkg. Type |
Pkg. Dimensions (mm) |
I/O Ports |
RTC |
LVD |
DMA |
Ethernet |
Power-On Reset |
Sub-clock (32.768 kHz) |
On-chip Oscillator Freq. |
USB |
CAN Interface |
UART (#) |
SPI (#) |
I2C (#) |
I3C (ch) |
LIN (#) |
Human Machine Interface |
Capacitive Touch Sensing Unit (ch) (#) |
Timer |
Watchdog Timer (#) |
ADC |
DAC |
24-Bit Sigma-Delta A/D Converter (ch) (#) |
Low-Power Analog Comparator (ch) (#) |
Security & Encryption |
Supply Voltage (V) |
Temp. Range |
Bit Size |
Debug Interface |
Carrier Type |
Buy / Sample |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | |||||||||||||||||||||||||||||||||||||||
| N/A | ARM CM23 | 48 | 256 | 32 | 8 | 36 | BGA | 5 x 5 x 1.4 | 22 | Yes | Yes | DTC | No | No | No | USB Endpoints x 5, USB Peripheral, USB Ports (ch) x 1 | CAN x 1ch | 3 | 1 | 2 | 0 | Capacitive Sensing Unit 26ch | 9 | 16-bit x 3-ch, 32-bit x 1-ch, Asynchronous Timer x 2ch | 2 | 16-bit x 1-ch(differential), 16-bit x 5-ch(single end), 24-bit x 1-ch(differential), 24-bit x 2-ch(single end) | 8-bit x 2-ch, 12-bit x 1-ch | 2 | AES128, AES256, TRNG | 1.6 - 5.5 | -40 to 85°C | 32 | - | Tray | Get Samples, | ||||
| N/A | ARM CM23 | 48 | 256 | 32 | 8 | 32 | LQFP | 7 x 7 x 1.7 | 20 | Yes | Yes | DTC | No | No | No | CAN x 1ch | 3 | 2 | 2 | 0 | Capacitive Sensing Unit 26ch | 11 | 16-bit x 4-ch, 32-bit x 1-ch, Asynchronous Timer x 2ch | 2 | 16-bit x 1-ch(differential), 16-bit x 5-ch(single end), 24-bit x 1-ch(differential), 24-bit x 2-ch(single end) | 8-bit x 2-ch, 12-bit x 1-ch | 2 | AES128, AES256, TRNG | 1.6 - 5.5 | -40 to 105°C | 32 | Tray | Get Samples, | ||||||
| N/A | ARM CM23 | 48 | 256 | 32 | 8 | 64 | LQFP | 10 x 10 x 1.7 | 49 | Yes | Yes | DTC | No | No | No | USB Endpoints x 5, USB Peripheral, USB Ports (ch) x 1 | CAN x 1ch | 3 | 2 | 2 | 0 | Capacitive Sensing Unit 26ch | 26 | 16-bit x 6-ch, 32-bit x 1-ch, Asynchronous Timer x 2ch | 2 | 16-bit x 4-ch(differential), 16-bit x 17-ch(single end), 24-bit x 4-ch(differential), 24-bit x 8-ch(single end) | 8-bit x 2-ch, 12-bit x 1-ch | 2 | AES128, AES256, TRNG | 1.6 - 5.5 | -40 to 105°C | 32 | Tray | Get Samples, | |||||
| N/A | ARM CM23 | 48 | 256 | 32 | 8 | 48 | QFN | 7 x 7 x 0.8 | 33 | Yes | Yes | DTC | No | No | No | USB Endpoints x 5, USB Peripheral, USB Ports (ch) x 1 | CAN x 1ch | 3 | 2 | 2 | 0 | Capacitive Sensing Unit 26ch | 16 | 16-bit x 6-ch, 32-bit x 1-ch, Asynchronous Timer x 2ch | 2 | 16-bit x 3-ch(differential), 16-bit x 12-ch(single end), 24-bit x 3-ch(differential), 24-bit x 6-ch(single end) | 8-bit x 2-ch, 12-bit x 1-ch | 2 | AES128, AES256, TRNG | 1.6 - 5.5 | -40 to 105°C | 32 | Tray | Get Samples, | |||||
| N/A | ARM CM23 | 48 | 256 | 32 | 8 | 40 | QFN | 6 x 6 x 0.8 | 25 | Yes | Yes | DTC | No | No | No | USB Endpoints x 5, USB Peripheral, USB Ports (ch) x 1 | CAN x 1ch | 3 | 2 | 2 | 0 | Capacitive Sensing Unit 26ch | 11 | 16-bit x 4-ch, 32-bit x 1-ch, Asynchronous Timer x 2ch | 2 | 16-bit x 1-ch(differential), 16-bit x 8-ch(single end), 24-bit x 2-ch(differential), 24-bit x 4-ch(single end) | 8-bit x 2-ch, 12-bit x 1-ch | 2 | AES128, AES256, TRNG | 1.6 - 5.5 | -40 to 105°C | 32 | Tray | Get Samples, | |||||
| 2033 Oct | ARM CM23 | 48 | 256 | 32 | 8 | 32 | LQFP | 7 x 7 x 1.7 | 20 | Yes | Yes | DTC | No | No | No | CAN x 1ch | 3 | 2 | 2 | 0 | Capacitive Sensing Unit 26ch | 11 | 16-bit x 4-ch, 32-bit x 1-ch, Asynchronous Timer x 2ch | 2 | 16-bit x 1-ch(differential), 16-bit x 5-ch(single end), 24-bit x 1-ch(differential), 24-bit x 2-ch(single end) | 8-bit x 2-ch, 12-bit x 1-ch | 2 | AES128, AES256, TRNG | 1.6 - 5.5 | -40 to 105°C | 32 | Tray (Full Carton) | |||||||
| 2033 Oct | ARM CM23 | 48 | 256 | 32 | 8 | 64 | LQFP | 10 x 10 x 1.7 | 49 | Yes | Yes | DTC | No | No | No | USB Endpoints x 5, USB Peripheral, USB Ports (ch) x 1 | CAN x 1ch | 3 | 2 | 2 | 0 | Capacitive Sensing Unit 26ch | 26 | 16-bit x 6-ch, 32-bit x 1-ch, Asynchronous Timer x 2ch | 2 | 16-bit x 4-ch(differential), 16-bit x 17-ch(single end), 24-bit x 4-ch(differential), 24-bit x 8-ch(single end) | 8-bit x 2-ch, 12-bit x 1-ch | 2 | AES128, AES256, TRNG | 1.6 - 5.5 | -40 to 105°C | 32 | Tray (Full Carton) | ||||||
| N/A | ARM CM23 | 48 | 256 | 32 | 8 | 48 | HWQFN | 7 x 7 x 0.8 | 33 | Yes | Yes | DTC | No | No | No | USB Endpoints x 5, USB Peripheral, USB Ports (ch) x 1 | CAN x 1ch | 3 | 2 | 2 | 0 | Capacitive Sensing Unit 26ch | 16 | 16-bit x 6-ch, 32-bit x 1-ch, Asynchronous Timer x 2ch | 2 | 16-bit x 3-ch(differential), 16-bit x 12-ch(single end), 24-bit x 3-ch(differential), 24-bit x 6-ch(single end) | 8-bit x 2-ch, 12-bit x 1-ch | 2 | AES128, AES256, TRNG | 1.6 - 5.5 | -40 to 105°C | 32 | Tray | ||||||
| 2037 Dec | ARM CM23 | 48 | 256 | 32 | 8 | 48 | HWQFN | 7 x 7 x 0.8 | 33 | Yes | Yes | DTC | No | No | No | USB Endpoints x 5, USB Peripheral, USB Ports (ch) x 1 | CAN x 1ch | 3 | 2 | 2 | 0 | Capacitive Sensing Unit 26ch | 16 | 16-bit x 6-ch, 32-bit x 1-ch, Asynchronous Timer x 2ch | 2 | 16-bit x 3-ch(differential), 16-bit x 12-ch(single end), 24-bit x 3-ch(differential), 24-bit x 6-ch(single end) | 8-bit x 2-ch, 12-bit x 1-ch | 2 | AES128, AES256, TRNG | 1.6 - 5.5 | -40 to 105°C | 32 | Tray (Full Carton) | ||||||
| N/A | ARM CM23 | 48 | 256 | 32 | 8 | 40 | QFN | 6 x 6 x 0.8 | 40 | Yes | Yes | DTC | No | No | No | USB Endpoints x 5, USB Peripheral, USB Ports (ch) x 1 | CAN x 1ch | Capacitive Sensing Unit 26ch | 16-bit x 4-ch, 32-bit x 1-ch, Asynchronous Timer x 2ch | 16-bit x 1-ch(differential), 16-bit x 8-ch(single end), 24-bit x 2-ch(differential), 24-bit x 4-ch(single end) | 8-bit x 2-ch, 12-bit x 1-ch | 2 | AES128, AES256, TRNG | 1.6 - 5.5 | -40 to 105°C | 32 | Tray | ||||||||||||
| N/A | ARM CM23 | 48 | 256 | 32 | 8 | 40 | QFN | 6 x 6 x 0.8 | 40 | Yes | Yes | DTC | No | No | No | USB Endpoints x 5, USB Peripheral, USB Ports (ch) x 1 | CAN x 1ch | Capacitive Sensing Unit 26ch | 16-bit x 4-ch, 32-bit x 1-ch, Asynchronous Timer x 2ch | 16-bit x 1-ch(differential), 16-bit x 8-ch(single end), 24-bit x 2-ch(differential), 24-bit x 4-ch(single end) | 8-bit x 2-ch, 12-bit x 1-ch | 2 | AES128, AES256, TRNG | 1.6 - 5.5 | -40 to 105°C | 32 | Tray (Full Carton) | ||||||||||||
| N/A | ARM CM23 | 48 | 256 | 32 | 8 | 40 | QFN | 6 x 6 x 0.8 | 40 | Yes | Yes | DTC | No | No | No | USB Endpoints x 5, USB Peripheral, USB Ports (ch) x 1 | CAN x 1ch | Capacitive Sensing Unit 26ch | 16-bit x 4-ch, 32-bit x 1-ch, Asynchronous Timer x 2ch | 16-bit x 1-ch(differential), 16-bit x 8-ch(single end), 24-bit x 2-ch(differential), 24-bit x 4-ch(single end) | 8-bit x 2-ch, 12-bit x 1-ch | 2 | AES128, AES256, TRNG | 1.6 - 5.5 | -40 to 105°C | 32 |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Companion Products
play_circle_filledVideos & Training
QE for AFE - Facilitate the AFE Development of RA2A1
Easily tune and evaluate a microcontroller (MCU) with built-in analog front end (AFE) without external measuring equipment or developing software for AFE evaluation.
Video List
News & Blog Posts
Pin Count / Memory Size
| Flash: 256kB RAM: 32kB |
● | ● | ● | ● | ● |
|---|---|---|---|---|---|
| Pin Count Package Size Pitch |
32-pin LQFP 7x7mm 0.8mm |
36-pin BGA 5x5mm 0.8mm |
40-pin QFN 6x6mm 0.5mm |
48-pin QFN 7x7mm 0.5mm |
64-pin LQFP 10x10mm 0.5mm |
