Non-Volatile 4Mb High Performance MRAM, 1.8V
Jump to Page Section:
Overview
Description
The M1004204 series is a 4Mbit high-performance non-volatile MRAM with speed up to 108MHz. The M1004204 offers superior reliability and greater than 20-year data retention (at 85°C). It does not require backup battery or capacitor(s) compared to non-volatile SRAM. The M1004204 supports Quad SPI, SDR and DDR interface. It operates at 1.8V typical from -40°C to +105°C (industrial plus version) and offered in an SOIC or DFN (WSON) package.

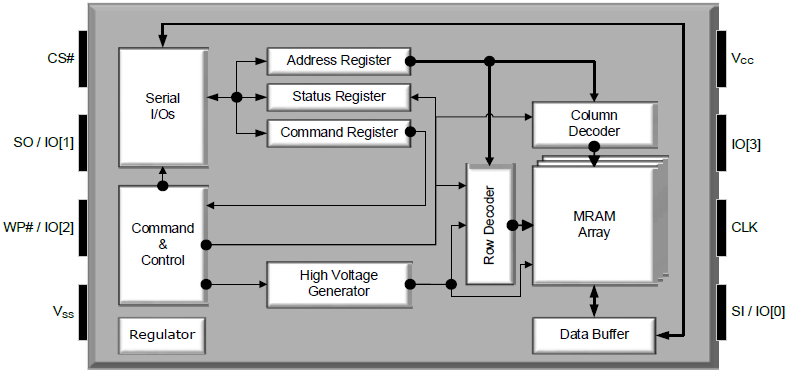

Features
- Utilizing advanced pMTJ STT-MRAM technology
- High-speed Quad SPI interface, up to 108MHz SDR mode
- Low active write and read current
- Independent 256-byte user programmable and lockable NVM
- Industrial plus operating temperature: -40°C to +105°C
- Supply voltage: 1.8V
- Package: 8-pin SOIC and 8-pad DFN (WSON)
Documentation
| Document title | Document type Type | Date Date | |
|---|---|---|---|
| PDF 1.00 MB | Datasheet | ||
| PDF 98 KB | Application Note | ||
| PDF 1.26 MB | Overview | ||
| PDF 315 KB | Product Advisory | ||
| PDF 201 KB | Product Advisory | ||
5 items
|
|||
Design & Development
Boards & Kits
Boards & Kits
MRAM Evaluation Kit
The M3016 evaluation kit contains the 16Mbit MRAM and enables users to develop interactive hardware solutions using the popular Arduino type board. The plug-n-play kit...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
I/O Frequency (MHz) |
Pkg. Type |
Temp. Range |
Carrier Type |
Buy / Sample |
|
|---|---|---|---|---|---|
| Part Number | |||||
| 108 | SOIC | -40 to 85°C | Tray | Get Samples, | |
| 108 | SOIC | -40 to 85°C | Reel | ||
| 108 | SOIC | -40 to 105°C | Tray | Get Samples, | |
| 108 | SOIC | -40 to 105°C | Reel | ||
| 108 | DFN | -40 to 85°C | Tray | ||
| 108 | DFN | -40 to 85°C | Reel | ||
| 108 | DFN | -40 to 105°C | Tray | ||
| 108 | DFN | -40 to 105°C | Reel | ||
| 54 | SOIC | -40 to 85°C | Tray | ||
| 54 | SOIC | -40 to 85°C | Reel | ||
| 54 | SOIC | -40 to 105°C | Tray | ||
| 54 | SOIC | -40 to 105°C | Reel | ||
| 54 | DFN | -40 to 85°C | Tray | ||
| 54 | DFN | -40 to 85°C | Reel | ||
| 54 | DFN | -40 to 105°C | Tray | ||
| 54 | DFN | -40 to 105°C | Reel |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
play_circle_filledVideos & Training
High Performance Serial and Parallel MRAM Memory Family
Renesas’ high performance serial and parallel MRAM memory family provides the largest range of SPI and parallel interface non-volatile memory sizes, with fast read and write speeds. The MRAM family is ideal for applications ranging from factory automation equipment requiring fast back-up data retrieval to medical data units with long-term data storage requirements.
