256K x 36 Synchronous Bank-Switchable Dual-Port SRAM
Jump to Page Section:
Overview
Description

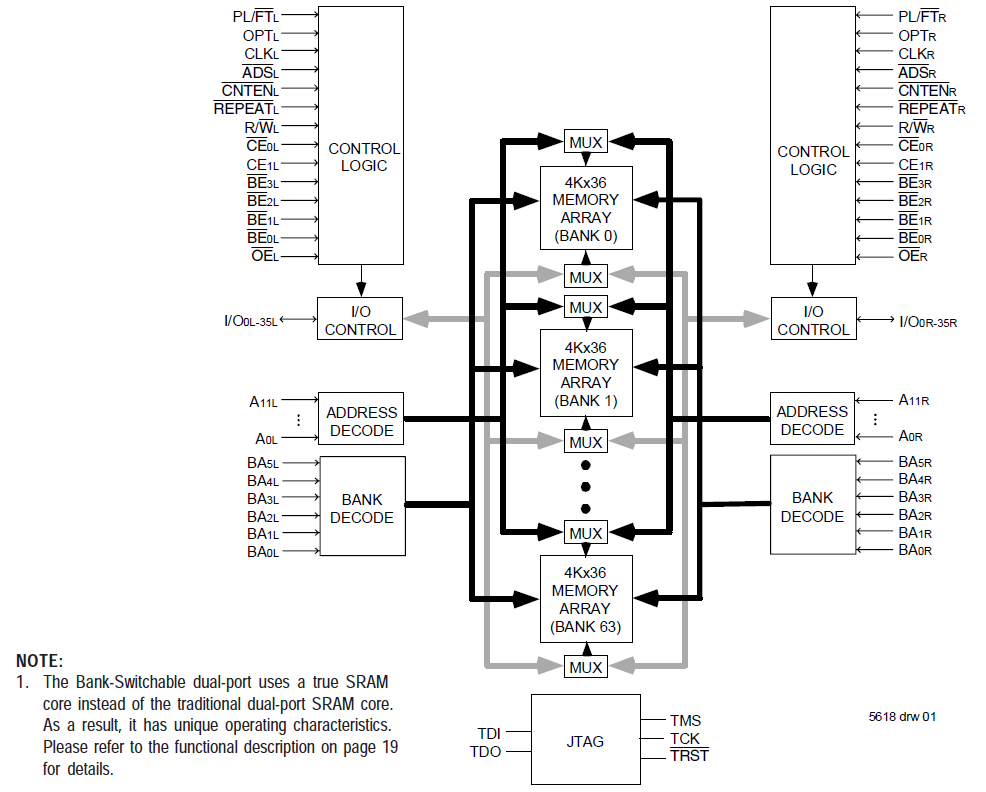

The 70V7519 is a high-speed 256K x 36 (9Mbit) synchronous Bank-Switchable Dual-Ported SRAM is organized into 64 independent 4Kx36 banks and has two independent ports with separate control, address, and I/O pins for each port, allowing each port to access any 4Kx36 memory block not already accessed by the other port. An automatic power down feature, controlled by CE0 and CE1, permits the on-chip circuitry of each port to enter a very low standby power mode.
Features
- Bank access controlled via bank address pins
- Selectable Pipelined or Flow-Through output mode
- Counter enable and repeat features
- Dual chip enables allow for depth expansion without additional logic
- Full synchronous operation on both ports
- Separate byte controls for multiplexed bus and bus matching compatibility
- LVTTL- compatible, 3.3V (±150mV) power supply for core
- LVTTL compatible, selectable 3.3V (±150mV) or 2.5V (±100mV) power supply for I/Os and control signals on each port
- Available in a 208-pin PQFP, 208-pin fpBGA, and 256-pin BGA packages
- Includes JTAG functionality
- Industrial temperature range (-40C to +85C) is available
Documentation
| Document title | Document type
|
Date Date | |
|---|---|---|---|
| PDF 415 KB | Datasheet | ||
| PDF 225 KB | Application Note | ||
| PDF 154 KB | Application Note | ||
| PDF 112 KB | Application Note | ||
| PDF 138 KB | Application Note | ||
| PDF 14 KB | Device Errata | ||
| PDF 14 KB | Device Errata | ||
| PDF 645 KB | End Of Life Notice | ||
| PDF 123 KB | Guide | ||
| PDF 24 KB | Product Change Notice | ||
| PDF 252 KB | Product Change Notice | ||
| PDF 194 KB | Product Change Notice | ||
| PDF 729 KB | Product Change Notice | ||
| PDF 16 KB | Product Change Notice | ||
| PDF 290 KB | Product Change Notice | ||
| PDF 80 KB | Product Change Notice | ||
| PDF 38 KB | Product Change Notice | ||
| PDF 26 KB | Product Change Notice | ||
| PDF 197 KB | Product Change Notice | ||
| PDF 150 KB | Product Change Notice | ||
| PDF 13 KB | Product Change Notice | ||
| PDF 40 KB | Product Change Notice | ||
| PDF 274 KB | Product Change Notice | ||
| PDF 44 KB | Product Change Notice | ||
24 items
|
|||
Design & Development
Software & Tools
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
Pkg. Type |
Lead Count (#) |
Temp. Grade |
Pb (Lead) Free |
Carrier Type |
Buy / Sample |
|
|---|---|---|---|---|---|---|
| Part Number | ||||||
| CABGA | 256 | C | No | Tray | Get Samples, | |
| CABGA | 256 | C | No | Reel | ||
| CABGA | 256 | I | No | Tray | Get Samples, | |
| CABGA | 256 | I | No | Reel | ||
| CABGA | 208 | C | No | Tray | Get Samples, | |
| CABGA | 208 | C | No | Reel | ||
| CABGA | 208 | I | No | Tray | Get Samples, | |
| CABGA | 208 | I | No | Reel | ||
| CABGA | 256 | C | No | Tray | Get Samples, | |
| CABGA | 256 | C | No | Reel | ||
| CABGA | 256 | I | No | Tray | Get Samples, | |
| CABGA | 256 | I | No | Reel | ||
| CABGA | 208 | C | No | Tray | Get Samples, | |
| CABGA | 208 | C | No | Reel | ||
| CABGA | 256 | C | No | Tray | ||
| CABGA | 256 | C | No | Reel | ||
| CABGA | 256 | C | Yes | Tray | Get Samples, | |
| CABGA | 256 | C | Yes | Reel |
