QuickSwitch High-Speed Low Power CMOS 10-Bit Bus Switch
Jump to Page Section:
Overview
Description

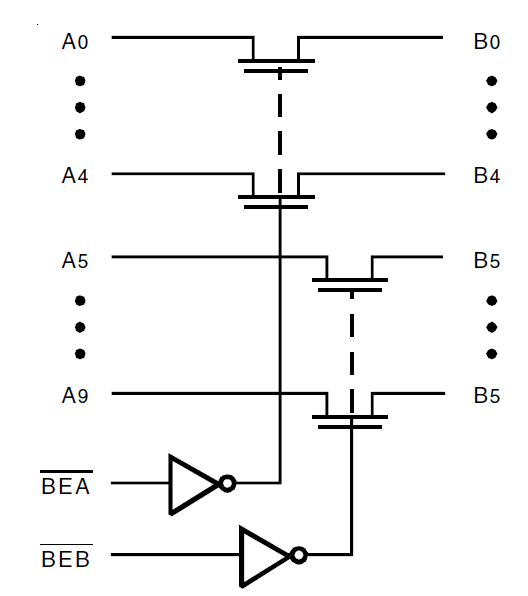

The QS3L384 provides a set of ten high-speed CMOS TTL-compatible bus switches. The low ON resistance of the QS3L384 allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce noise. Two bus enable signals are provided, one for each of the upper and lower five bits of the two 10-bit buses. The QS3L384 operates at -40C to +85C.
Features
- Enhanced N channel FET with no inherent diode to Vcc
- 5 ohm bidirectional switches connect inputs to outputs
- Zero propagation delay, zero added ground bounce
- Ultra low power with 0.2 uA typical Icc
- Undershoot clamp diodes on all switch and control inputs
- Two enables control five bits each
- Available in 24 pin QSOP and TSSOP packages
Documentation
| Document title | Document type
|
Date Date | |
|---|---|---|---|
| PDF 270 KB | Datasheet | ||
| PDF 142 KB | Application Note | ||
| PDF 118 KB | Application Note | ||
| PDF 83 KB | Application Note | ||
| PDF 66 KB | Application Note | ||
| PDF 40 KB | Application Note | ||
| PDF 61 KB | Application Note | ||
| PDF 99 KB | Application Note | ||
| PDF 1.11 MB | End Of Life Notice | ||
| PDF 1.29 MB | End Of Life Notice | ||
| PDF 130 KB | End Of Life Notice | ||
| PDF 39 KB | Product Change Notice | ||
| PDF 611 KB | Product Change Notice | ||
| PDF 611 KB | Product Change Notice | ||
| PDF 596 KB | Product Change Notice | ||
| PDF 544 KB | Product Change Notice | ||
| PDF 24 KB | Product Change Notice | ||
| PDF 18 KB | Product Change Notice | ||
| PDF 38 KB | Product Change Notice | ||
| PDF 16 KB | Product Change Notice | ||
| PDF 47 KB | Product Change Notice | ||
| PDF 35 KB | Product Change Notice | ||
| PDF 196 KB | Product Change Notice | ||
| PDF 116 KB | Product Change Notice | ||
| PDF 110 KB | Product Change Notice | ||
| PDF 40 KB | Product Change Notice | ||
| PDF 27 KB | Product Change Notice | ||
| PDF 274 KB | Product Change Notice | ||
| PDF 24 KB | Product Change Notice | ||
| PDF 44 KB | Product Change Notice | ||
30 items
|
|||
Design & Development
Software & Tools
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
| TSSOP | 24 | C | Yes | Tube | ||
| TSSOP | 24 | C | Yes | Reel | ||
| QSOP | 24 | C | Yes | Tube | ||
| QSOP | 24 | C | Yes | Reel |
