VersaClock® 7 Programmable Jitter Attenuator Family
Jump to Page Section:
Overview
Description
The RC31xxxA (RC31008A and RC31012A) are small-form factor, fully integrated, low-power, high-performance jitter attenuators with network synchronization capabilities. The family supports JEDEC JESD204B/C for converter synchronization and SyncE for network-based synchronization. The RC31xxxA are ideal for driving converter circuits in wireless and wireline infrastructure, data center equipment, and instrumentation applications. The devices are members of Renesas' high-performance VersaClock®7 family
Up to 27 configurations reusable across multiple designs may be stored in on-chip One-Time Programmable (OTP) memory or external I2C EEPROM. Redundant input available for backup and used as reference clock where needed.
Features
- 1.8V/2.5V/3.3V flexible power rails
- Typical 150fs RMS 12kHz–20MHz phase jitter
- 5/8/12 outputs with integrated crystal options
- 1kHz to 650MHz LVDS/LP-HCSL outputs
- 1kHz to 200MHz LVCMOS outputs
- Programmable hardware configuration select-pins
- PCIe Gen5/6 ready
- Space saving packages 4 × 4mm, 5 × 5mm, 6 × 6mm
- JESD204B/C support on differential or single-ended outputs with DC-coupling or AC-coupling
- Digital holdover and hitless switching
- Integrated crystal option for space saving and BOM optimization
- ITU-T G.8262 and G.82621 compliant for easy synchronized ethernet application
Applications
Applications
- Switches / Routers
- Synchronous Ethernet (SyncE) equipment
- Telecom Time Slave Clock (T-TSC) equipment
- Jitter attenuation for 10 / 25 / 40 / 100 / 200 / 400 Gbps Ethernet PHYs or Switches
- Small Cell for 4.5G and 5G
Documentation
| Title | Type | Date | |
|---|---|---|---|
PDF1.31 MB
|
Datasheet
|
||
PDF2.41 MB
|
Guide
|
||
PDF116 KB
|
Application Note
|
||
PDF157 KB
|
Application Note
|
||
PDF208 KB
|
Application Note
|
||
PDF640 KB
|
Application Note
|
||
PDF600 KB
|
Application Note
|
||
PDF1.95 MB
|
Application Note
|
||
PDF1.16 MB
|
Application Note
|
||
PDF264 KB
|
Application Note
|
||
PDF552 KB
|
Application Note
|
||
PDF2.31 MB
|
Application Note
|
||
PDF425 KB
|
Application Note
|
||
PDF741 KB
|
Application Note
|
||
PDF485 KB
|
Manual - Hardware
|
||
PDF1.73 MB
|
Manual - Software
|
||
XLSX809 KB
|
Other
|
||
PDF392 KB
|
Overview
|
||
PDF1.83 MB
|
Overview
|
||
PDF771 KB
|
Product Change Notice
|
Design & Development
Software & Tools
Software & Tools
| Renesas IC Toolbox (RICBox)The Renesas IC Toolbox (RICBox) software platform enables customers to configure Renesas devices on evaluation kits when attached to the computer running the software.Downloads: | Software Package | Renesas |
Boards & Kits
Boards & Kits
Evaluation Kit for VersaClock® 7 Programmable Clock
The RC31008A Evaluation Board (EVB) is designed to support users evaluating the RC31008A using clock generation in synthesizer mode for PCIe Gen 1-6 compliance or in...
Featured Documents:
Evaluation Kit for VersaClock® 7 Programmable Clock
The RC31012A Evaluation Board (EVB) is designed to support users evaluating the RC31012A using clock generation in synthesizer mode for PCIe Gen 1-6 compliance or in...
Featured Documents:
Programming Boards for VersaClock® 7 Programmable Clock
The VersaClock 7 programmer board is made to ease the programming of RC21008, RC31008 blank devices. With the on-board USB interface, RICBox™ GUI can be used to...
Featured Documents:
Programming Boards for VersaClock® 7 Programmable Clock
The VersaClock 7 programmer board is made to ease the programming of RC21012, RC31012 blank devices. With the on-board USB interface, RICBox™ GUI can be used to...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
This device is factory-configurable. Try the Custom Part Configuration Utility.
Processing table
Part Number |
Diff. Outputs |
Inputs (#) |
Input Type |
Diff. Inputs |
Pkg. Dimensions (mm) |
Pkg. Type |
Carrier Type |
Buy / Sample |
|---|---|---|---|---|---|---|---|---|
| 8 | 4 | Crystal, LP-HCSL, LVCMOS, LVDS | 2 | 5.0 x 5.0 x 0.9 | VFQFPN | Tray | Get Samples, | |
| 8 | 4 | Crystal, LP-HCSL, LVCMOS, LVDS | 2 | 5.0 x 5.0 x 0.9 | VFQFPN | Reel | ||
| 8 | 4 | Crystal, LP-HCSL, LVCMOS, LVDS | 2 | 5.0 x 5.0 x 0.9 | VFQFPN | Tray | Get Samples, | |
| 8 | 4 | Crystal, LP-HCSL, LVCMOS, LVDS | 2 | 5.0 x 5.0 x 0.9 | VFQFPN | Reel | ||
| 8 | 4 | LP-HCSL, LVCMOS, LVDS | 2 | 5.0 x 5.0 x 1.7 | LGA | Tray | Get Samples, | |
| 8 | 4 | LP-HCSL, LVCMOS, LVDS | 2 | 5.0 x 5.0 x 1.7 | LGA | Reel | ||
| 12 | 4 | Crystal, LP-HCSL, LVCMOS, LVDS | 2 | 6.0 x 6.0 x 0.9 | VFQFPN | Tray | Get Samples, | |
| 12 | 4 | Crystal, LP-HCSL, LVCMOS, LVDS | 2 | 6.0 x 6.0 x 0.9 | VFQFPN | Reel | ||
| 12 | 4 | Crystal, LP-HCSL, LVCMOS, LVDS | 2 | 6.0 x 6.0 x 0.9 | VFQFPN | Tray | Get Samples, | |
| 12 | 4 | Crystal, LP-HCSL, LVCMOS, LVDS | 2 | 6.0 x 6.0 x 0.9 | VFQFPN | Reel |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product

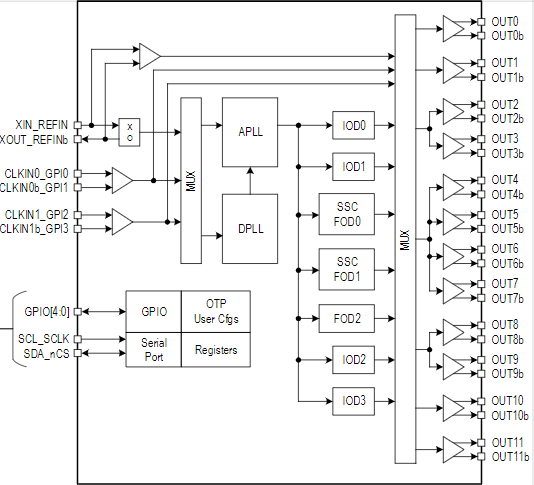

- Chip icon next to the right of the document icon in row: View the block diagram for this product
