Low Skew,1-to-2,Differential-to-2.5V,3.3V LVPECL/ECL Fanout Buffer
Jump to Page Section:
Overview
Description
The 853S011BI is a low skew, high performance 1-to-2 Differential-to-2.5V/3.3V LVPECL/ECL Fanout Buffer. The 853S011BI is characterized to operate from either a 2.5V or a 3.3V power supply. Guaranteed output and part-to-part skew characteristics make the 853S011BI ideal for those clock distribution applications demanding well defined performance and repeatability.
Features
- Two differential 2.5V, 3.3V LVPECL/ECL outputs
- One differential PCLK, nPCLK input pair
- PCLK, nPCLK pairs can accept the following differential input levels: LVPECL, LVDS, CML, SSTL
- Maximum output frequency: >2.5GHz
- Translates any single-ended input signal to 3.3V LVPECL levels with resistor bias on nPCLK input
- Output skew: 5ps (typical)
- Part-to-part skew: 130ps (maximum)
- Propagation delay: 355ps (maximum)
- LVPECL mode operating voltage supply range: VCC = 2.375V to 3.8V, VEE = 0V
- ECL mode operating voltage supply range: VCC = 0V, VEE = -3.8V to -2.375V
- -40°C to 85°C ambient operating temperature
- Available lead-free (RoHS 6) package
Documentation
| Document title | Document type
|
Date Date | |
|---|---|---|---|
| PDF 740 KB | Datasheet | ||
| PDF 91 KB | Application Note | ||
| PDF 1.99 MB | Application Note | ||
| PDF 322 KB | Application Note | ||
| PDF 170 KB | Application Note | ||
| PDF 495 KB | Application Note | ||
| PDF 442 KB | Application Note | ||
| PDF 180 KB | Application Note | ||
| PDF 153 KB | Application Note | ||
| PDF 160 KB | Application Note | ||
| PDF 120 KB | Application Note | ||
| PDF 565 KB | Application Note | ||
| PDF 331 KB | Overview | ||
| PDF 217 KB | Overview | ||
| PDF 1.83 MB | Overview | ||
| PDF 113 KB | Product Change Notice | ||
| PDF 32 KB | Product Change Notice | ||
| PDF 611 KB | Product Change Notice | ||
| PDF 611 KB | Product Change Notice | ||
| PDF 95 KB | Product Change Notice | ||
| PDF 50 KB | Product Change Notice | ||
| PDF 439 KB | Product Change Notice | ||
| PDF 361 KB | Product Change Notice | ||
23 items
|
|||
Design & Development
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table

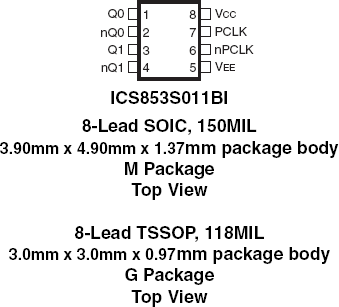

| TSSOP | 8 | I | Yes | Tube | Get Samples, | |
| TSSOP | 8 | I | Yes | Reel | ||
| SOIC | 8 | I | Yes | Tube | Get Samples, | |
| SOIC | 8 | I | Yes | Reel |
