Overview

Description

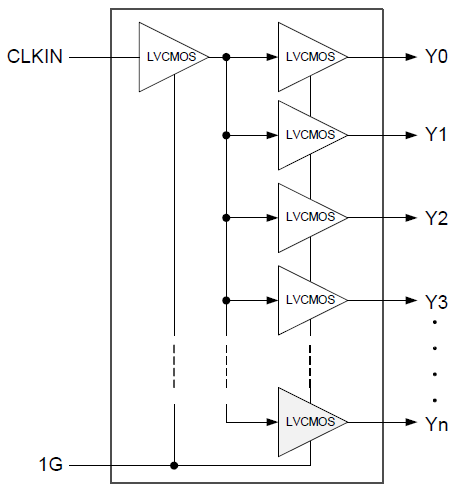

The 5PB1110 is a high-performance 1:10 LVCMOS clock buffer. It has best-in-class Additive Phase Jitter of 50 fsec RMS.

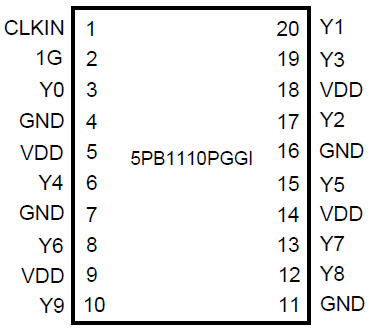

The 5PB1110 also supports an Output Enable function. It is available in 20-pin QFN and TSSOP packages and can operate from a 1.8 V to 3.3 V supply.


Features

  • High performance 1:10 LVCMOS clock buffer
  • Very low pin-to-pin skew <50 ps
  • Very low additive jitter <50 fs
  • Supply voltage: 1.8 V to 3.3 V
  • fmax = 200 MHz
  • Integrated serial termination for 50ohm channel
  • Packaged in 20-pin TSSOP and small QFN packages
  • Extended (-40°C to +105°C) temperature range
  • AEC-Q100 qualified, Automotive Grade 2 (-40°C to +105°C)
