Multi-Cell Li-Ion Battery Manager
Jump to Page Section:
Overview
Description

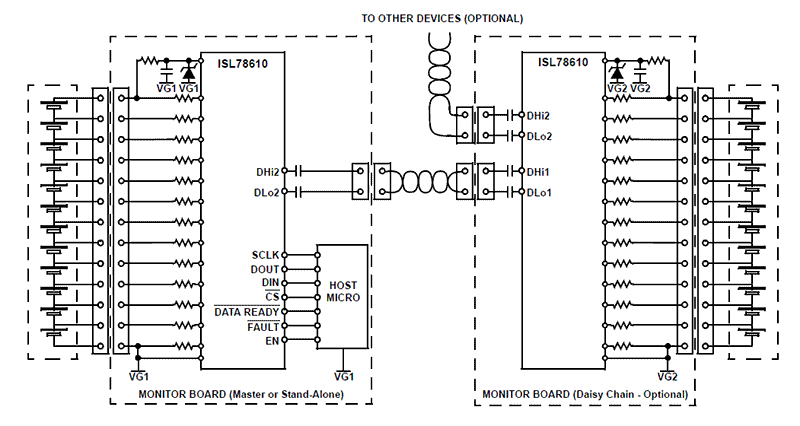

The automotive grade ISL78610 12-cell battery pack monitor can be used as a stand-alone battery monitor or as a redundant back-up device in an ASIL compliant system. It supervises up to 12 series connected cells and features cell voltage and temperature monitoring along with system diagnostics. The ISL78610 communicates to a host microcontroller with an SPI interface and to other ISL78610 devices using a robust, proprietary, two-wire daisy chain system. The ISL78610 is offered in a 64 Ld TQFP package and is specified for operation at a temperature range of -40°C to +105°C.
Features
- Up to 12-cell voltage monitors with support for Li-ion CoO2, Li-ion Mn2O4, and Li-ion FePO4 chemistries
- Cell voltage measurement accuracy ±10mV
- 13-bit cell voltage measurement
- 14-bit pack voltage and temperature measurements
- Cell voltage scan rate of 19.5μs per cell (234μs to scan 12 cells)
- Internal and external temperature monitoring
- Up to four external temperature inputs
- Robust daisy chain communications system
- Integrated system diagnostics for all key internal functions
- Integrated watchdog shuts down device if communication is lost
- 2Mbps SPI
- AEC-Q100 qualified
Documentation
| Document title | Document type
|
Date Date | |
|---|---|---|---|
| PDF 1.79 MB | Datasheet | ||
| PDF 993 KB | Application Note | ||
| PDF 389 KB | Application Note | ||
| PDF 4.91 MB 日本語 | Brochure | ||
| PDF 411 KB | Product Advisory | ||
PCN19003 - Product Improvement - Design Change for the listed Renesas ISL78600 and ISL78610 Products
PDF
102 KB
|
Product Change Notice | ||
| PDF 451 KB 简体中文 | White Paper | ||
| PDF 451 KB 简体中文 | White Paper | ||
| PDF 354 KB | White Paper | ||
| PDF 400 KB | White Paper | ||
10 items
|
|||
Design & Development
Software & Tools
Boards & Kits
Boards & Kits
Multi-Cell Li-Ion Battery Monitor Evaluation Kit
The ISL78610EVKIT1Z is a kit that facilitates testing of the ISL78610 Li-ion battery pack analog front end ICs. The ISL78610 monitors cell voltage and temperature. It...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
| TQFP | Tray | 160 | Get Samples, | |
ISL78610ANZ-T Active Samples Available |
TQFP | Reel | 1000 | Get Samples, |
