Negative Signal Swing, Sub-ohm, Dual SPDT with Click and Pop Elimination Single Supply Switch
Jump to Page Section:
Overview
Description

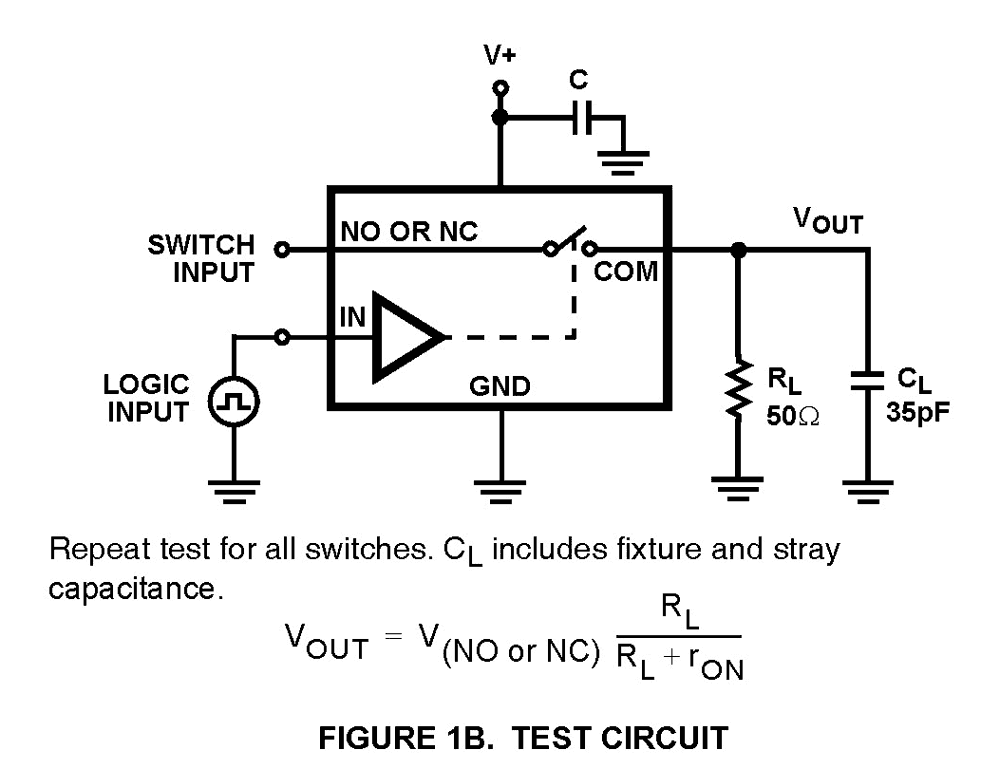

The ISL54062 device is a low ON-resistance, low voltage, bidirectional, dual single-pole/double-throw (SPDT) analog switch. It is designed to operate from a single +1.8V to +6.5V supply and pass signals that swing down to 6.5V below the positive supply rail. Targeted applications include battery-powered equipment that benefit from low rON (0.56Ω), low power consumption (20nA) and fast switching speeds (tON = 55ns, tOFF = 18ns). The digital inputs are 1.8V logic-compatible up to a +3V supply. The ISL54062 also features integrated circuitry to eliminate click and pop noise to an audio speaker. The device is offered in a small form factor package, alleviating board space limitations. It is available in a tiny 10 Ld 1.8mm x 1.4mm µTQFN or 10 Ld 3mm x 3mm TDFN package. The ISL54062 is a committed dual single-pole/double-throw (SPDT) that consists of two normally open (NO) and two normally closed (NC) switches with independent logic control. This configuration can be used as a dual 2-to-1 multiplexer.
Features
- Pb-free (RoHS compliant)
- Negative signal swing (Max 6.5V below V+)
- Audio click and pop elimination circuitry
- ON-resistance (rON)
- V+ = +4.5V: 0.55Ω
- V+ = +4.3V: 0.57Ω
- V+ = +2.7V: 0.82Ω
- V+ = +1.8V: 1.8Ω
- rON matching between channels: 10mΩ
- rON flatness across signal range: 0.35Ω
- Low THD+N at 32Ω load: 0.02%
- Single supply operation: +1.8V to +6.5V
- Low power consumption at 3V (PD): 24nW
- Fast switching action (V+ = +4.3V)
- tON: 43ns
- tOFF: 23ns
- ESD HBM rating: >6kV
- Guaranteed break-before-make
- 1.8V logic compatible (+3V supply)
- Low I+ current when VINH is not at the V+ rail
- Available in a 10 Ld µTQFN 1.8mm x 1.4mm and 10 Ld 3mm x 3mm TDFN
Applications
Applications
- Audio and video switching
- Battery powered, handheld, and portable equipment
- MP3 and multimedia players
- Cellular/Mobile phones
- Pagers
- Laptops, notebook PCs, palmtops
- Portable test and measurement
- Medical equipment
Documentation
| Document title | Document type
|
Date Date | |
|---|---|---|---|
| PDF 1.02 MB | Datasheet | ||
| PDF 468 KB | Application Note | ||
| PDF 603 KB | End Of Life Notice | ||
| PDF 293 KB | Other | ||
| PDF 202 KB | Product Change Notice | ||
| PDF 326 KB | Product Change Notice | ||
| PDF 205 KB | Product Change Notice | ||
7 items
|
|||
Design & Development
Software & Tools
Boards & Kits
Boards & Kits
Negative Signal Swing, Sub-ohm, Dual SPDT with Click and Pop Elimination Single Supply Switch Evaluation Board
The ISL54062EVAL1Z evaluation board is designed to provide a quick and easy method for evaluating the ISL54062 analog switch IC.
The ISL54062 IC is a single supply,...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
ISL54062IRTZ Last Time Buy Samples Available |
TDFN | Tube | 2000 | Get Samples, |
ISL54062IRTZ-T Last Time Buy Samples Available |
TDFN | Reel | 6000 | Get Samples, |
| uTQFN | Reel | 3000 |
