Overview

The ADC1206S040/055/070 are a family of BiCMOS 12-bit Analog-to-Digital Converters (ADC) optimized for a wide range of applications such as cellular infrastructures, professional telecommunications, imaging, and digital radio. It converts the analog input signal into 12-bit binary coded digital words at a maximum sampling rate of 70 MHz. All static digital inputs (SH, CE and OTC) are Transistor-Transistor Logic (TTL) and CMOS compatible and all outputs are CMOS compatible. A sine wave clock input signal can also be used.

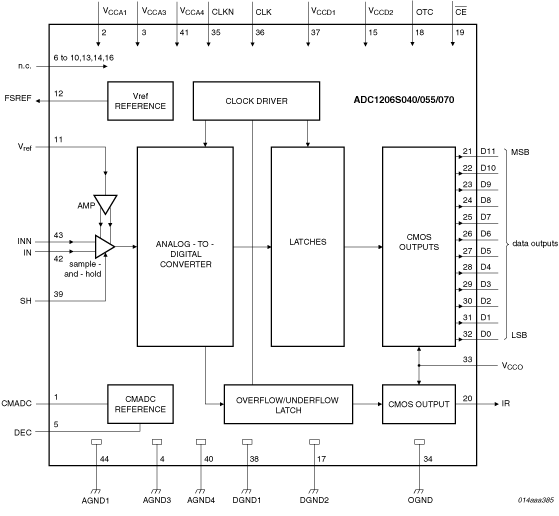

ADC1206S040H - Block Diagram
ADC1206S040H - Block Diagram
  • 12-bit resolution
  • -3 dB bandwidth of 245 MHz
  • 5 V power supplies and 3.3 V output power supply
  • Binary or twos complement CMOS outputs
  • Differential AC or Positive Emitter-Coupled Logic (PECL) clock input
  • TTL
  • compatible
  • Differential analog input
  • External amplitude range control
  • In-range CMOS compatible output
  • Integrated sample and hold amplifier
  • Low analog input capacitance (typical 2 pF), no buffer amplifier required
  • Power dissipation 550 mW (typical)
  • Sampling rate up to 70 MHz
  • TTL and CMOS compatible digital outputs
  • TTL and CMOS compatible static digital inputs
  • Voltage controlled regulator included

Documentation

Title Type Date
ADC1206S SER Datasheet
PDF1.31 MB
Datasheet
PDN# : DC-14-01 PRODUCT DISCONTINUANCE NOTICE
PDF538 KB
End Of Life Notice

Design & Development

Software Downloads

Title Type Date
PDN# : DC-14-01 PRODUCT DISCONTINUANCE NOTICE
PDF538 KB
End Of Life Notice

Boards & Kits

ADC1206S040 - Evaluation Board

ADC1206S040

Demonstration
Order Now

ADC1206S040 demo board

Our ADC demo board is suitable for dynamic performances evaluation.

Featured Documents:
ADC1206S Quick Start Guide

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models

Product Options

    Processing table
    Part Number
    Pkg. Type
    Lead Count (#)
    Temp. Grade
    Pb (Lead) Free
    Carrier Type
    Buy / Sample
    ADC1206S040H-C1
    block_flippedObsolete
    memory
    view_in_ar
    		PQFP 44 I Yes Tray
    ADC1206S040H-C18
    block_flippedObsolete
    memory
    view_in_ar
    		PQFP 44 I Yes Reel
