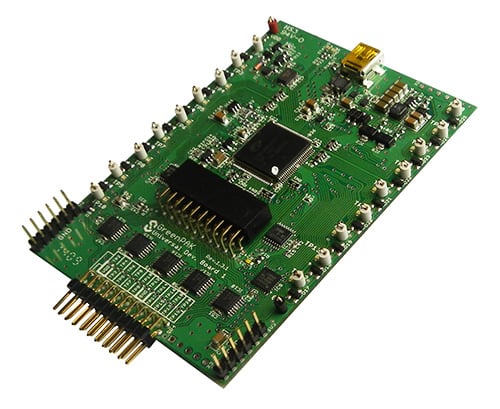

Provides full programming, emulation, and testing functions for GreenPAK devices. For use with SLG46xxxX-SKT sockets kits.

Working in tandem with the GreenPAK Designer software, GreenPAK Advanced Development Board allows designers to:

  • Program custom samples in minutes
  • Test GreenPAK projects in-circuit
  • Develop using any GreenPAK device

Kit Contents

  • Advanced Development Board
  • USB cable
  • Quick Start Guide

Please note: Socket Adapters should be ordered separately


  • USB interface
  • MacOS, Windows and Linux compatible
  • Programming and Emulation
  • Gated expansion header for connection to external test equipment
  • Integrated signal and logic generators
  • LEDs for visual indication



  • Programming
  • Emulation
  • Signal Logic Generators
