Evaluation Board for 15W Wireless Power Receiver with WattShare™ Mode
Jump to Page Section:
Overview
Description

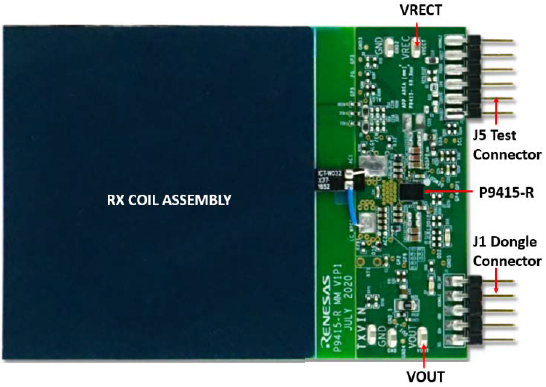

The P9415-R-EVK Wireless Power Evaluation Board serves to demonstrate the features and performance of the 9415-R 15W Wireless Power Receiver with WattShare™ mode.
The Renesas P9243-GB-EVK Evaluation Board or any other Qi certified Extended Power Profile (EPP) transmitter can be used as the power transmitter for P9415-R-EVK Evaluation Board testing. The P9415-R-EVK demonstrates a high-efficiency, turnkey reference design supported by comprehensive online, digital resources to significantly expedite design-in effort and enable rapid prototyping. Using the P9415-R Windows GUI, customers can quickly customize operating parameters for their custom applications. WPD-USB-DONGLE is required to connect P9415-R-EVK with the windows GUI and needs to be ordered separately.
Features
- Receives up to 15W of power from Qi Extended Power Profile (EPP) Transmitter
- Transmits up to 5W of power in WattShare™ (TRx) mode
- WPC1.2.4 Extended Power Profile (15W) compatible
- WPC 1.3 Specification hardware ready
- Up to 87% system efficiency in Receiver mode
- Uses thin profile receiver coil (0.3mm)
- Score line to break the applications circuit for prototyping
- Easy configuration of design parameters using P9415-R Windows GUI
- Connector compatible with “WPD-USB-DONGLE” USB to I2C dongle
- 4-layer PCB with 1oz. copper
- Extensive support collateral: Schematics, Layout files, BOM
- Supports Bi-Directional communications
- X-Y alignment coils embedded in the PCB
- Embedded 32-bit ARM® Cortex®-M0 processor
- Supports I2C 400kHz standard interface and GPIOs
Design & Development
Product Options
Processing table
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
play_circle_filledVideos & Training
Getting Started with the P9415-R Reference Design
Video shows how users can use the P9415 reference design board to evaluate the performance in Receiver and WattShare (TRx) mode and customize the design using windows GUI.
