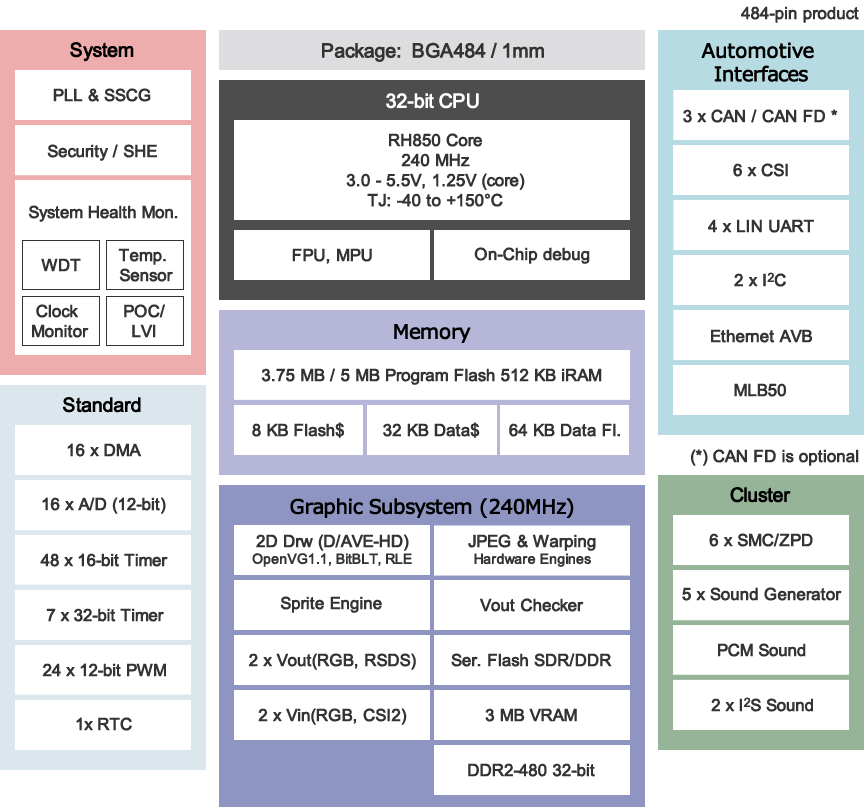

The RH850/D1M microcontroller has up to 5 MB embedded flash, 3.5 MB embedded RAM and dedicated features for instrument clusters with middle or high level 2D drawing. Therefore it integrates stepping motor controller/driver, sound generator, a 2D GPU, Sprite Engine, JPEG Unit, HUD Warping Engine and the Video RAM with RAM Wrapper. Furthermore it supports an external memory interface up to DDR2.

Features

  • CPU: G3M core, Max. 240MHz
  • Voltage: 2.7V to 5.5V
  • Package: 272 to 484-pin BGA, 176-pin LFQFP
  • Memory: SRAM Max. 512KB, Program Flash Max. 5MB
  • Stepping motor controller/driver with zero point detection
  • Sound generator
  • Display controller
  • JPEG decoder
  • Warping Engine
  • Max. 3.1Mbyte Video RAM with RAM wrapper
  • PWM: PWM Output x 72
  • Analog function: 12-bit A/D Converter (ch) x Max. 20
  • On-chip Oscillator Freq. (MHz): 8 MHz, Low Speed: 240 kHz
  • Others: PLL, RTC, Power-On Reset

Applications

  • Instrument Cluster
