パワーマネジメント

Renesas offers a broad portfolio of synchronous MOSFET drivers.

セレクションテーブル

    Processing table
    VIN/VPWM (Max)
    VDRIVE (V) (V)
    Output Per Driver UGATE Source|Sink
    Output Per Driver LGATE Source|Sink
    Phase Voltage (Min)
    Phase Voltage (Max)
    No Load IS (Max)
    IS (mA)
    Input Voltage Range (V)
    Qualification Level
    Lead Count (#)
    Pkg. Type
    Simulation Model Available
    型名

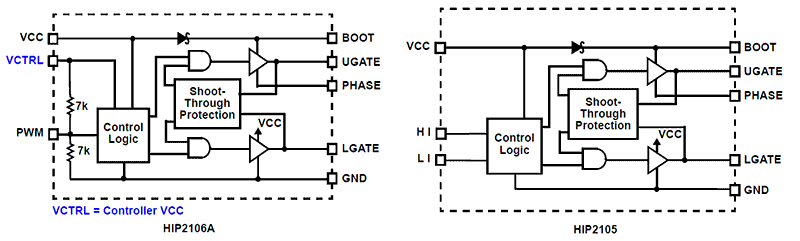

    HIP2105
    同期整流低電圧ドライバ    		 3.3 and 5 5 2|2 2|4 DC GND - 8V (<20ns), GND - 0.3VDC GND - 8V (<20ns) GND - 0.3VDC GND - 8V (<20ns) Almost negligible 0.19 Standard 10 DFN
    HIP2106A
    Low Voltage Driver for Synchronous Rectification    		 3.3 and 5 5 2|2 2|4 GND - 0.3VDC GND - 8V (<20ns) 15VDC, 30V (<100ns) Almost negligible 0.19 Standard 10 DFN
    ISL6208
    High Voltage Synchronous Rectified Buck MOSFET Drivers    		 -0.3V to VCC + 0.3V 5 2|2 2|4 VBOOT-7 30 0.08 Standard 8 QFN, SOICN
    ISL6208B
    High Voltage Synchronous Rectified Buck MOSFET Drivers    		 -0.3V to VCC + 0.3V 5 2|2 2|4 VBOOT-7 30 0.08 Standard 8 DFN
    ISL6596
    Synchronous Rectified MOSFET Driver    		 3.3 and 5 5 2|2 2|4 GND - 0.3VDC GND - 8V (<20ns) 15VDC, 30V (<100ns) Almost negligible 0.19 Standard 10 DFN

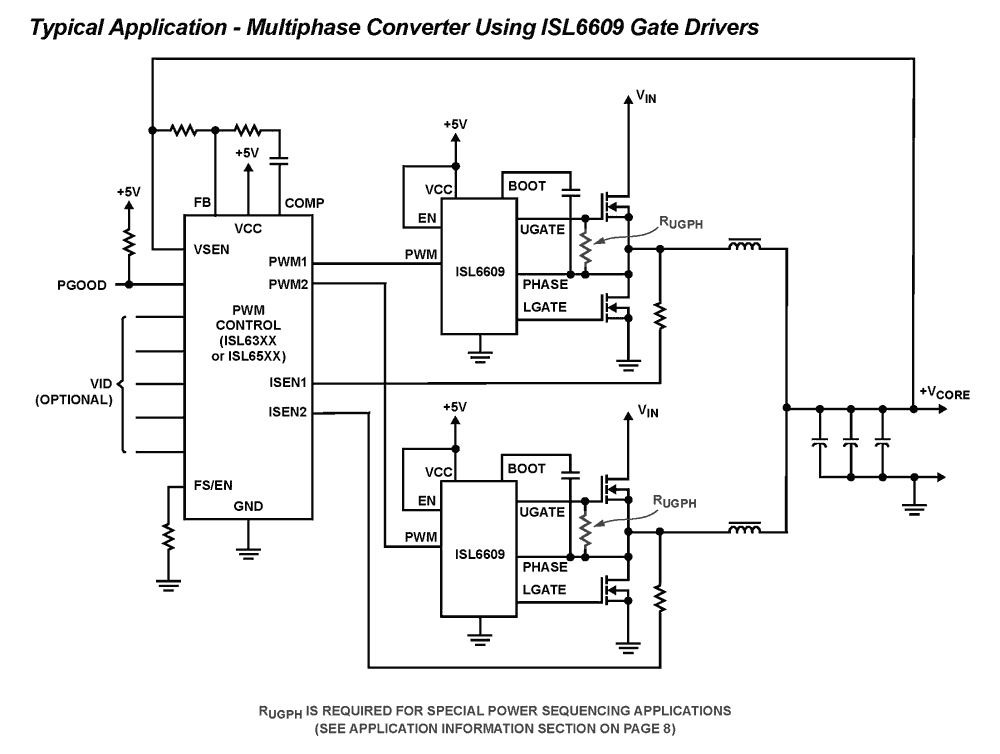

    ISL6609
    Synchronous Rectified MOSFET Driver    		 -0.3V to VCC + 0.3V 5 2|2 2|4 -8V (<20ns) 15VDC, 30V (<100ns) Almost negligible 0.132 Standard 8 QFN
    ISL6609A
    Synchronous Rectified MOSFET Driver    		 -0.3V to VCC + 0.3V 5 2|2 2|4 GND - 0.3VDC GND - 8V (<20ns) 15VDC, 30V (<100ns) Almost negligible 0.132 Standard 8 QFN, SOICN
    ISL6612A
    Advanced Synchronous Rectified Buck MOSFET Drivers with Pre-POR OVP    		 GND - 0.3V to 7V 5 to 12 1.25|2 2|3 GND - 0.3VDC GND - 8V (<400ns) 15VDC, 30V (<200ns) 4.5 7.2 Standard 8 SOICN

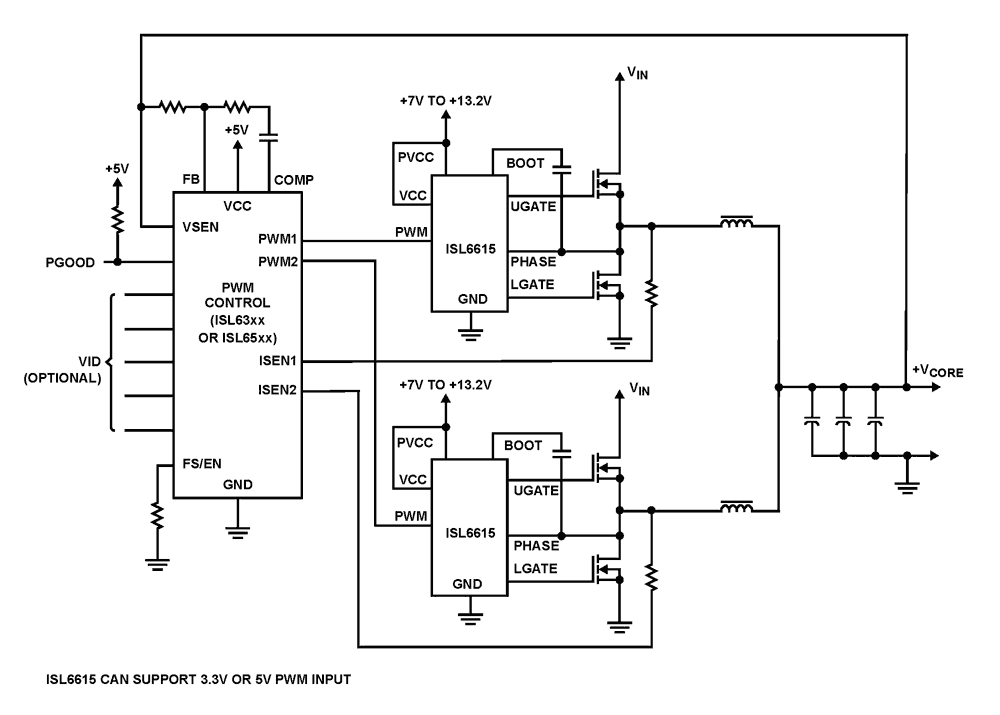

    ISL6615
    High-Frequency 6A Sink Synchronous MOSFET Drivers with Protection Features    		 15 4.5 to 13.2 2.5|4 4|6 GND - 0.3VDC GND - 8V (<400ns) 15VDC, 30V (<200ns) 4.5 8 Standard 10 DFN
    ISL6615A
    High-Frequency 6A Sink Synchronous MOSFET Drivers with Protection Features    		 15 4.5 to 13.2 2.5|4 4|6 GND - 0.3VDC GND - 8V (<400ns) 15VDC, 30V (<200ns) 4.5 8 Standard 8 SOICN

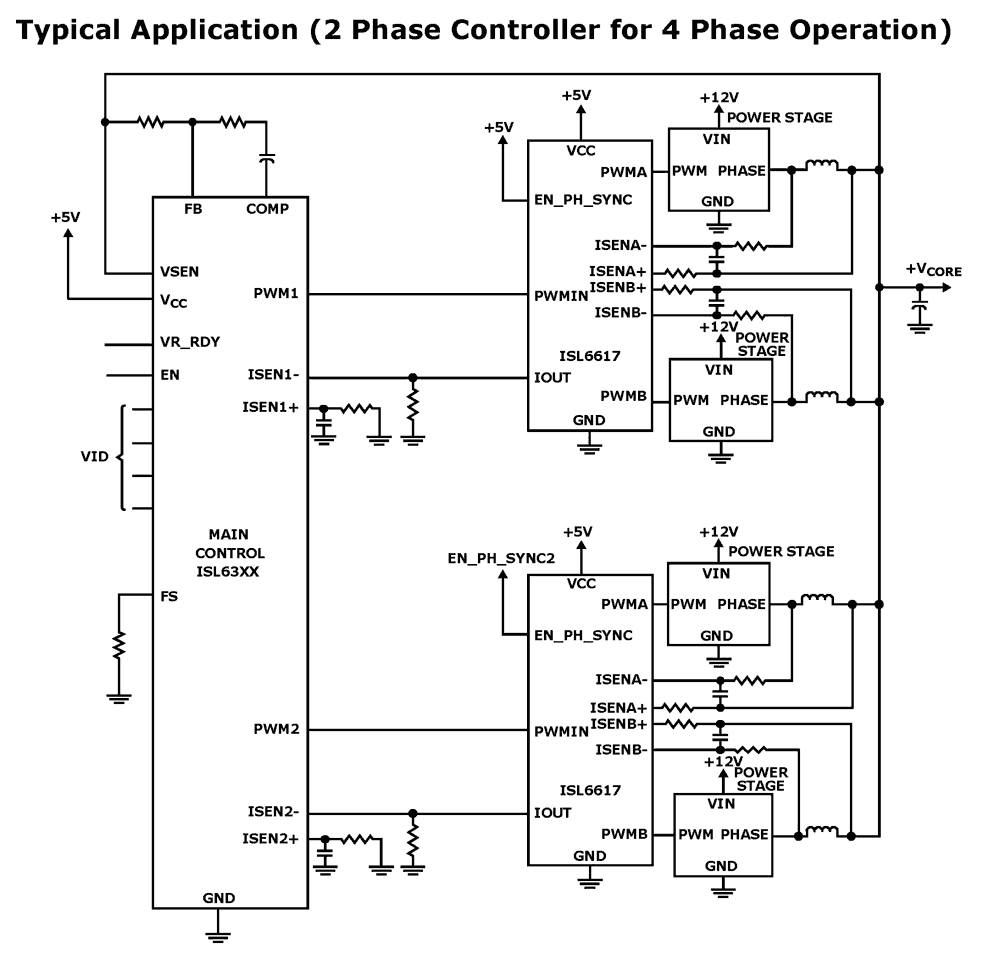

    ISL6617
    フェーズ・シェディング機能 / 出力監視機能付きPWMダブラー    		 -0.3V to VCC + 0.3V 5 .05|.05 .05|.05 N/A N/A 7.5 5 Standard 10 DFN
    ISL6617A
    PWM Doubler with Output Monitoring Feature    		 -0.3V to VCC + 0.3V 5 .05|.05 .05|.05 N/A N/A 7.5 5 Standard 10 DFN
    ISL6622
    VR11.1 Compatible Synchronous Rectified Buck MOSFET Drivers    		 15 5 to 12 1.25|2 2|3 GND - 0.3VDC GND - 8V (<200ns) 15VDC, 30V (<200ns) N/A 5.7 Standard 8 SOICN
    ISL6622A
    VR11.1 Compatible Synchronous Rectified Buck MOSFET Drivers    		 15 5 to 12 1.25|2 2|3 GND - 0.3VDC GND - 8V (<200ns) 15VDC, 30V (<200ns) N/A 5.7 Standard 10 DFN

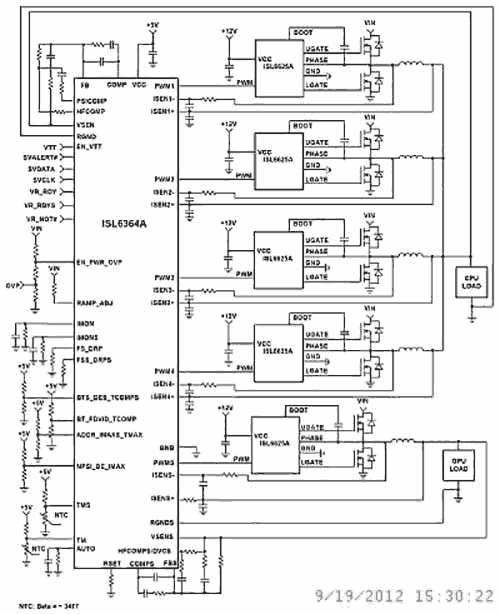

    ISL6625A
    Synchronous Rectified Buck MOSFET Drivers    		 15 5 to 12 1.25|2 1.75|3 GND - 0.3VDC GND - 8V (<400ns) 25VDC, 30V (<200ns) N/A 7.56 Standard 8 DFN
    ISL6627
    VR11.1, VR12 Compatible Synchronous Rectified Buck MOSFET Driver    		 -0.3V to VCC + 0.3V 5 2|4 2|2 GND - 0.3VDC, GND -8V (<20ns) 25VDC, 30V (<100ns) 1.27 (typ) 0.00185 Standard 10 DFN
    ISL95808
    High Voltage Synchronous Rectified Buck MOSFET Driver    		 -0.3V to VCC + 0.3V 5 2|2 2|4 VBOOT-7 30 0.08 Standard 8 DFN
    RAA220001
    Synchronous Rectified Buck MOSFET Driver    		 15 6 to 12 1.25|2 1.75|3 GND - 0.3VDC GND - 8V (<400ns) 25VDC, 30V (<200ns) N/A 7 Standard 8 DFN

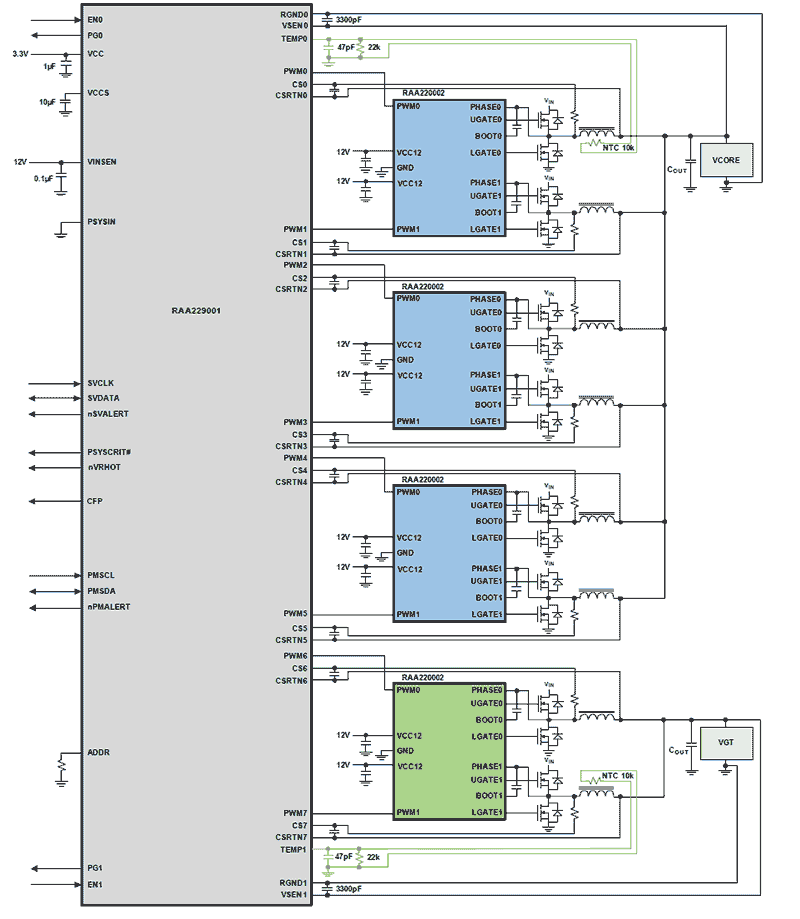

    RAA220002
    Dual Synchronous Rectified Buck MOSFET Driver    		 15 6 to 12 1.25|2 1.75|3 GND - 0.3VDC GND - 8V (<400ns) 25VDC, 30V (<200ns) N/A 12.5 Standard 12 TDFN
