概要
説明

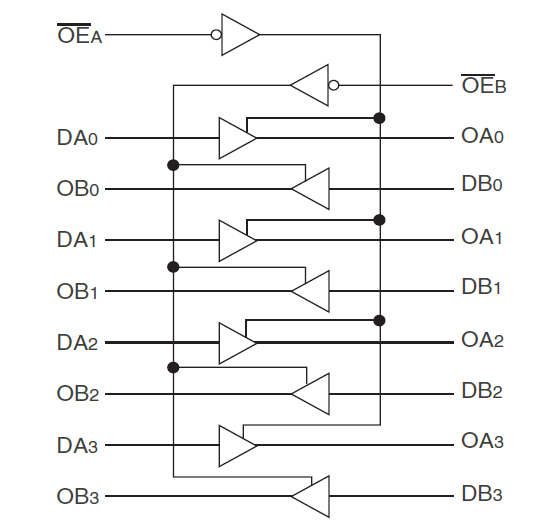

The 74FCT2244T Octal Buffer/Line Driver is designed to be employed as a memory and address driver, clock driver, and bus-oriented transmitter/receiver which provides improved board density. The octal buffer has balanced output drive with current limiting resistors, reducing the need for external series terminating resistors. The 74FCT2244T octal buffer operates across Industrial temp range (-40C to +85C) and is a plug-in replacement for the74FCT244T.
特長
- A and C speeds
- High-speed, low-power CMOS
- Typical tSK(o) (Output Skew) < 250ps
- Low input and output leakage 1 uA (max.)
- ESD > 2000V per MIL-STD-883, Method 3015
- > 200V using machine model (C = 200pF, R = 0)
- Balanced Output Drivers: – ±24mA
- Reduced system switching noise
- Typical VOLP (Output Ground Bounce) < 0.6V at VCC = 5V, TA = 25C
- Available in 20 pin QSOP and SOIC packages
ドキュメント
| Document title | Document type
|
日付 日付 | |
|---|---|---|---|
| PDF 100 KB | データシート | ||
| PDF 130 KB | アプリケーションノート | ||
| PDF 143 KB | アプリケーションノート | ||
| PDF 80 KB | アプリケーションノート | ||
| PDF 938 KB | EOL通知 | ||
| PDF 909 KB | EOL通知 | ||
| PDF 173 KB | EOL通知 | ||
| PDF 14 KB | EOL通知 | ||
| PDF 73 KB | EOL通知 | ||
| PDF 24 KB | EOL通知 | ||
| PDF 39 KB | 製品変更通知 | ||
| PDF 611 KB | 製品変更通知 | ||
| PDF 611 KB | 製品変更通知 | ||
| PDF 24 KB | 製品変更通知 | ||
| PDF 18 KB | 製品変更通知 | ||
| PDF 38 KB | 製品変更通知 | ||
| PDF 16 KB | 製品変更通知 | ||
| PDF 47 KB | 製品変更通知 | ||
| PDF 35 KB | 製品変更通知 | ||
| PDF 42 KB | 製品変更通知 | ||
| PDF 80 KB | 製品変更通知 | ||
| PDF 21 KB | 製品変更通知 | ||
| PDF 101 KB | 製品変更通知 | ||
| PDF 196 KB | 製品変更通知 | ||
| PDF 109 KB | 製品変更通知 | ||
| PDF 116 KB | 製品変更通知 | ||
| PDF 26 KB | 製品変更通知 | ||
| PDF 98 KB | 製品変更通知 | ||
| PDF 130 KB | 製品変更通知 | ||
| PDF 40 KB | 製品変更通知 | ||
| PDF 16 KB | 製品変更通知 | ||
| PDF 274 KB | 製品変更通知 | ||
| PDF 24 KB | 製品変更通知 | ||
| PDF 44 KB | 製品変更通知 | ||
34 items
|
|||
