Description

The M3004316 is a high performance parallel interface non-volatile MRAM with 4Mbit density. It features SRAM compatible read and write access times of 35ns or 45ns. It operates from -40° to +85° (industrial version) and -40°C to +105°C (industrial plus version). The device is offered in 48-ball FBGA, 44-TSOP (4Mb), and 54-TSOP packages.

特長

  • Utilizing advanced pMTJ STT-MRAM technology
  • Parallel Asynchonous x16
  • 4Mb density
  • Low active write and read current
  • Operating temperature: Industrial -40°C to +85°C, Industrial Plus -40°C to +105°C
  • Operating Voltage: 2.70 V to 3.60V

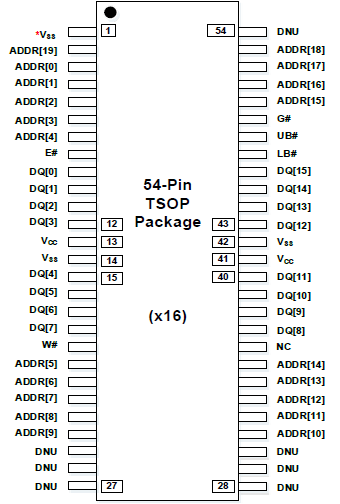

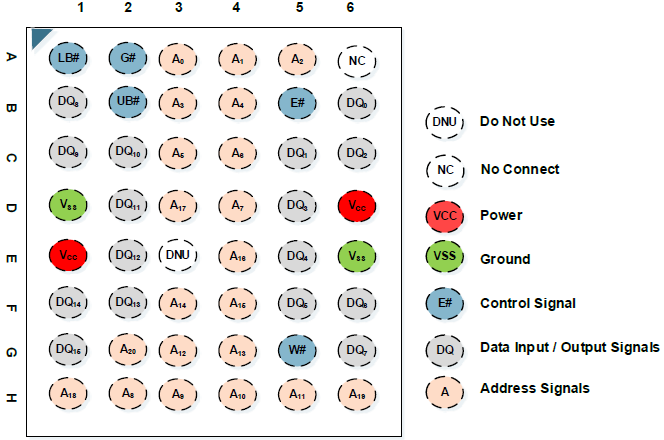

  • Package: 44-pin TSOP, 54-pin TSOP, and 48-pin FBGA


アプリケーション

ドキュメント

タイトル 分類 日付
PDF561 KB
データシート

設計・開発

モデル

サポート

ビデオ&トレーニング

High Performance Serial and Parallel MRAM Memory Family

Renesas’ high performance serial and parallel MRAM memory family provides the largest range of SPI and parallel interface non-volatile memory sizes, with fast read and write speeds. The MRAM family is ideal for applications ranging from factory automation equipment requiring fast back-up data retrieval to medical data units with long-term data storage requirements.
