メモリ&ロジック

概要

The QS3306A provides a set of two high-speed low resistance (3 ohm typical) CMOS switches connecting inputs to outputs without propagation delay and without generating additional ground bounce noise. Individual enables (OE) are used to turn on the switches. The QS3306A is ideal for signal and control switching since the device adds no noise, ground bounce, propagation delay, or significant power consumption to the system. The QS3306A can also be used for analog switching applications such as video. The QS3306A operates at -40C to +85C.

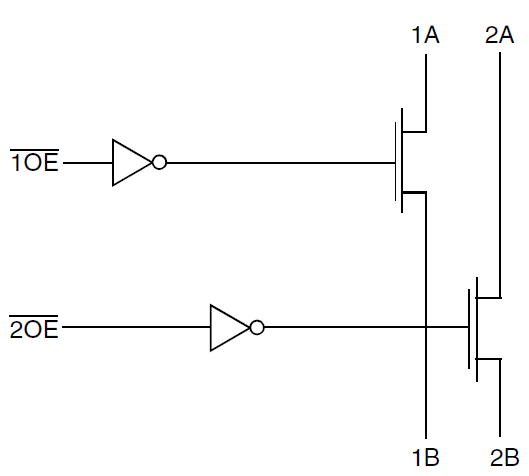

QS3306A - Block Diagram
QS3306A - Block Diagram
  • Enhanced N channel FET with no inherent diode to Vcc
  • Very low ON resistance (5 ohm typical)
  • Zero propagation delay, zero added ground bounce
  • Fast turn-on/turn-off time
  • Undershoot clamp diodes on all switch and control inputs
  • Available in 8 pin SOIC package

ドキュメント

タイトル 分類 日付
QS3306A Datasheet
PDF271 KB
データシート
AN-11: 5V and 3V Conversion with Zero Delay
PDF417 KB
アプリケーションノート
Quickswitch Basics
PDF142 KB
アプリケーションノート
AN-09: CMOS Bus Switches Provide 0 Delay
PDF118 KB
アプリケーションノート
AN-13: Converting TTL to Hot Plug
PDF83 KB
アプリケーションノート
AN-17: Peripheral Isolation in Notebook Computers
PDF66 KB
アプリケーションノート
AN-19: Space Reduction Via Placement
PDF40 KB
アプリケーションノート
AN-20: Board Assembly for 0.4mm Pin Surface Mounts
PDF61 KB
アプリケーションノート
TN-07: Analysis of QuickSwitch Behavior
PDF99 KB
アプリケーションノート
PLC# : 230001 End-of- Life (EOL) process on select part numbers
PDF1.29 MB
EOL通知
PCN# : A1602-01(R1) Add Greatek Taiwan as Alternate Assembly
PDF611 KB
製品変更通知
PCN# : A1602-01 Add Greatek Taiwan as Alternate Assembly
PDF611 KB
製品変更通知
PCN#: A-0410-02, Change IDT marking logo with new IDT gridless w
PDF24 KB
製品変更通知
PCN#: TB-0504-01, Transfer Test & Backend from IDT-Manila to IDT
PDF35 KB
製品変更通知
PCN # A-0406-06 Qualify OSE Philippines for SOIC
PDF100 KB
製品変更通知
PCN#:A-0401-01, new m/c G600 & 8290 d/a material
PDF196 KB
製品変更通知
PCN # L0306-02 Fab 2 to Fab 4 Transfer
PDF93 KB
製品変更通知
PCN# G-0203-05 Mold Compound
PDF40 KB
製品変更通知
PCN# G0106-01, Moisture Sensitive Label Change
PDF274 KB
製品変更通知

設計・開発

ソフトウェアダウンロード

タイトル 分類 日付
PLC# : 230001 End-of- Life (EOL) process on select part numbers
PDF1.29 MB
EOL通知

ECADモデル

[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。

ECADモデルを調べる

モデル

Title Type Date
QS3306A IBIS Model
ZIP4 KB
モデル－IBIS
QS3306A Hspice Model
ZIP5 KB
モデル－SPICE

製品選択

    Processing table
    型名
    Pkg. Type
    Lead Count (#)
    Temp. Grade
    Pb (Lead) Free
    Carrier Type
    ご購入 / サンプル
    QS3306AS1G8
    play_circleActive
    memory
    view_in_ar
    		SOIC 8 C Yes Reel
