インターフェースと有線コネクティビティ

Renesasは、ロングホールおよび地下鉄用途の光ネットワーク向けに、リニアおよびリミティングトランスインピーダンスアンプ（TIA）、ドライバ変調器の包括的な製品群を提供しています。RenesasのリニアTIAは、ゲイン、ノイズ特性、電力損失性能に優れ、ダイで提供されます。RenesasのリミティングTIAはDPSKおよびDQPSKレシーバで使用され、ダイとパッケージで提供されます。レシーバの光サブアセンブリ（ROSA）において高い入力感度、高トランスインピーダンスゲイン、低ノイズ／ジッタ、低電力消費、高電圧出力のいずれか、またはすべてが必要なネットワーク向けに、Renesasは最適なソリューションを提供します。

セレクションテーブル

    Processing table
    Function
    Data Rate Max (Gbps)
    Channels (#)
    Application
    型名
    GX32424
    4 x 32Gbps Linear TIA    		 Linear TIA 32 4
    100G/200G coherent systems with 32Gbps QPSK/16QAM modulation format and more...
    GX36220
    2x64Gb/s Linear TIA    		 Linear TIA 64 2 200G/400G/600G Coherent Receivers for QPSK/m-QAM
    GX36420
    4x64Gb/s Linear TIA    		 Linear TIA 64 4 200G/400G/600G Coherent Receivers for QPSK/m-QAM
    GX36420-3
    4 × 64Gbps Linear TIA    		 Linear TIA 64 4
    400G/600G coherent systems with 64Gbps 16QAM/64QAM modulation format and more...
    GX39221
    2 × 96Gbaud Linear Transimpedance Amplifier    		 Linear TIA 96 2 800G coherent systems with 96Gbaud QAM modulation format
    RG8G3122A
    2 x 128Gbaud Linear Transimpedance Amplifier    		 Linear TIA 128 2 800G coherent systems with 128Gbaud QAM modulation format
    RG8G32423
    4 x 32Gbaud Quad-Channel Linear Transimpedance Amplifier    		 Linear TIA 32 4 100Gbps DP-QPSK coherent pluggable module applications
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product

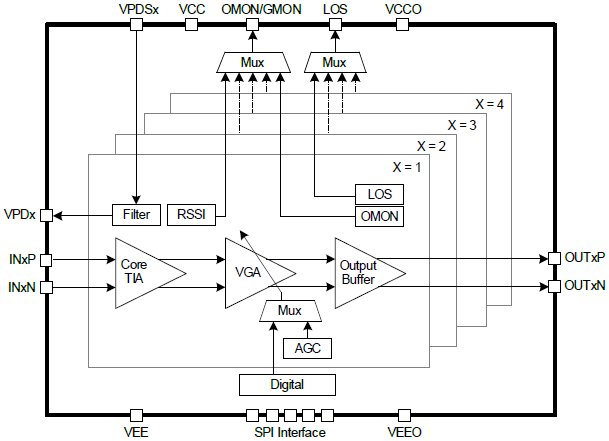

    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product
    GX76474 / GX36420 Driver and TIA for 400G Telecom Optical Networks

    An overview of Renesas’ 64 Gbaud GX76474 driver family and GX36420 series Coherent TIAs that combine exceptional analog performance, low power, and high reliability with high bandwidth and configurability to support coherent optical communications, the telecom industry’s fastest growing segment. Both series also cover all the optical modulator technologies currently on the market, including Lithium Niobate, Indium Phosphide, and Silicon Photonics, as well as the industry-standard ICR and TROSA configurations.

    Video List
    GX76474 / GX36420 Driver and TIA for 400G Telecom Optical Networks
