概要
Description

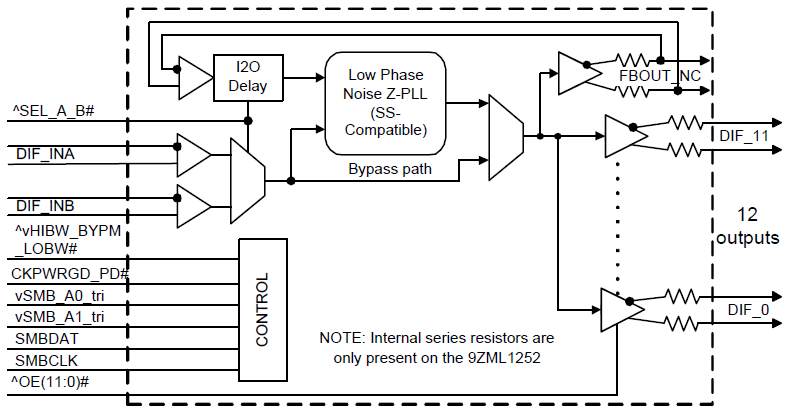

The 9ZML1252E is a second generation 2-input/12-output differential mux for Intel Purley and newer platforms. It exceeds the demanding DB1200ZL performance specifications and is backwards compatible to the 9ZML1232B. It utilizes Low Power HCSL-compatible outputs to reduce power consumption and termination resistors. It is suitable for PCI-Express Gen1-4 or QPI/UPI applications, and provides 2 configurable low-drift I2O settings, one for each input channel, to allow I2O tuning for various topologies.
特長
- 2 configurable low-drift I2O delays up to 2.9ns; maintain transport delay for various topologies
- LP-HCSL outputs with Zout = 85Ω; eliminate 48 resistors
- 9 selectable SMBus addresses; multiple devices can share same SMBus segment
- Separate VDDIO for outputs; allows maximum power savings
- PLL or Bypass Mode; PLL can dejitter incoming clock
- Hardware or software-selectable PLL BW; minimizes jitter peaking in downstream PLLs
- Spread spectrum compatible; tracks spreading input clock for EMI reduction
- SMBus interface; software can modify device settings without hardware changes
- 10 x 10 mm 72-QFN package; small board footprint
アプリケーション
ドキュメント
| タイトル | 分類 | 日付 | |
|---|---|---|---|
PDF382 KB
|
データシート
|
||
PDF91 KB
|
アプリケーションノート
|
||
PDF1.99 MB
|
アプリケーションノート
|
||
PDF255 KB
|
アプリケーションノート
|
||
PDF322 KB
|
アプリケーションノート
|
||
PDF480 KB
|
アプリケーションノート
|
||
PDF235 KB
|
アプリケーションノート
|
||
PDF170 KB
|
アプリケーションノート
|
||
PDF495 KB
|
アプリケーションノート
|
||
PDF442 KB
|
アプリケーションノート
|
||
PDF565 KB
|
アプリケーションノート
|
||
PDF137 KB
|
アプリケーションノート
|
||
PDF2.40 MB
|
概要
|
||
PDF163 KB
|
製品変更通知
|
||
PDF158 KB
|
製品変更通知
|
||
PDF983 KB
|
製品変更通知
|
設計・開発
ボード＆キット
ボード＆キット
Evaluation Kit for 19-Output DB1900Z for PCIe Gen1-4 and QPI/UPI
The evaluation board is designed to help the customer evaluate the 9ZXL1951D. The device is programmable through an SMBus interface. The user guide details the board...
モデル
ECADモデル
[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。
製品選択
Processing table
| VFQFPN | 72 | I | Yes | Tray | サンプルを入手, | |
| VFQFPN | 72 | I | Yes | Reel |
