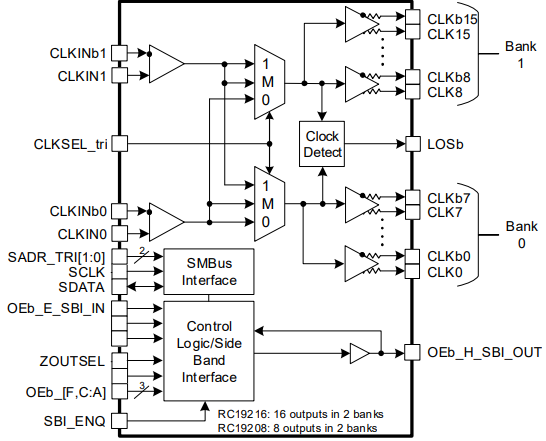

The RC19208 is a 2:8 PCIe Gen6 multiplexer that is backward compatible to earlier PCIe generations. The RC19208 provides ultra-low additive jitter and reduced in-to-out delay performance for better design-margin and incorporates several features for easier and more robust design.
特長
- LP-HCSL outputs eliminate up to 32 termination resistors
- PCIe Gen 1–6 compliance
- 2:8 or two 1:4 multiplexer options
- Drive both source-terminated and double-terminated loads selectable 85Ω and 100Ω output impedance
- Open-drain LOS (Loss-Of-Signal) indication output
- Power down tolerance (PDT)
- Flexible startup sequencing (FSS)
- Automatic clock parking (ACP)
- Dedicated OE# pins to control group output
- 4-wire Side-Band interface supports high-speed serial output enable
- 6 × 6 mm 48-VFQFPN package
ドキュメント
|
|
日付 | |
|---|---|---|
| PDF 927 KB | データシート | |
| PDF 91 KB | アプリケーションノート | |
| PDF 2.40 MB | 概要 | |
| PDF 1.99 MB | アプリケーションノート | |
| PDF 117 KB | 回路図 | |
| PDF 1.35 MB | ホワイトペーパー | |
| PDF 480 KB | アプリケーションノート | |
| PDF 235 KB | アプリケーションノート | |
| PDF 495 KB | アプリケーションノート | |
| PDF 442 KB | アプリケーションノート | |
| PDF 160 KB | アプリケーションノート | |
| PDF 565 KB | アプリケーションノート | |
12 items
|
||
設計・開発
ソフトウェア／ツール
モデル
ECADモデル
[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。
Processing table
| 85, 100 | VFQFPN | -40 to 105°C | 48 | Tray | サンプルを入手, | |
| 85, 100 | VFQFPN | -40 to 105°C | 48 | Reel |
